Запчасти Case 400C (210) - GEARMATIC WINCH, HOUSING ASSEMBLY (88) - ACCESSORIES

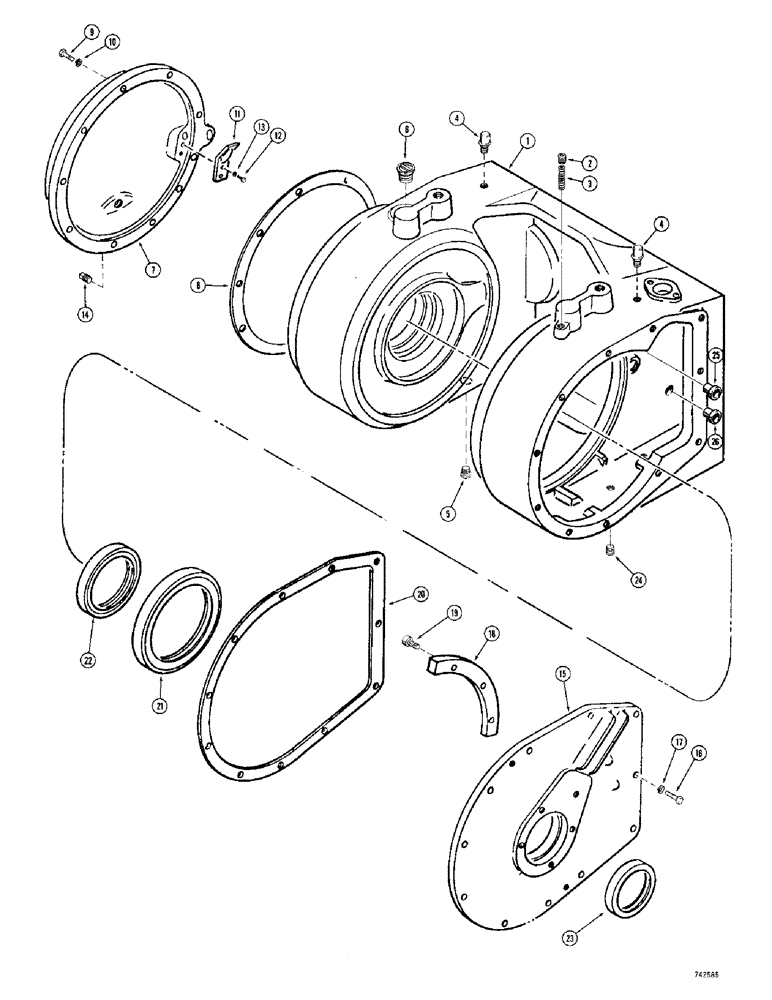

Схема запчастей Case 400C - (210) - GEARMATIC WINCH, HOUSING ASSEMBLY (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

D46301

HOUSING - winch

1шт.

2

83-77

SET SCREW,Hex Soc, 7/16"-14 x 7/16"

SCREW - set, 7/16" - 14 NC x 7/16"

1шт.

3

D39334

SPRING

- drag

1шт.

4

D37873

VENT - housing

2шт.

5

D37981

PLUG - barrel, bottom (3/4" NPT)

1шт.

6

D37926

PLUG

- barrel, top (1-1/2" NPT)

1шт.

7

D38026

COVER - gear

1шт.

8

D38021

GASKET - cover

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

10

92-8

LOCK WASHER,1/2"

10шт.

11

D38028

WIPER - oil

1шт.

12

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

1шт.

15

D38175

COVER - clutch

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

11шт.

17

92-8

LOCK WASHER,1/2"

11шт.

18

D38186

RING - guide

1шт.

19

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SHCS - 3/8" - 16 NC x 3/4"

3шт.

20

D38174

GASKET - cover, clutch

1шт.

21

D38165

OIL SEAL

SEAL - oil

1шт.

22

D38166

RUBBER SEAL

SEAL - oil

1шт.

23

D38177

OIL SEAL

SEAL - oil

1шт.

24

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - pipe, drain (1/2" NPT)

1шт.

25

D48852

PLUG - secondary brake lever (Used on winch serial no. 19-5154 and after)

1шт.

26

D48851

PLUG

- primary brake lever (Used on winch serial no. 19-5154 and after)

1шт.

Выбрано товаров: 26
