Запчасти Case 400C (204) - GEARMATIC WINCH, WINCH DRIVE SHAFTS, WINCH DRIVE SHAFT, SYNCHROMESH MODELS ONLY (88) - ACCESSORIES

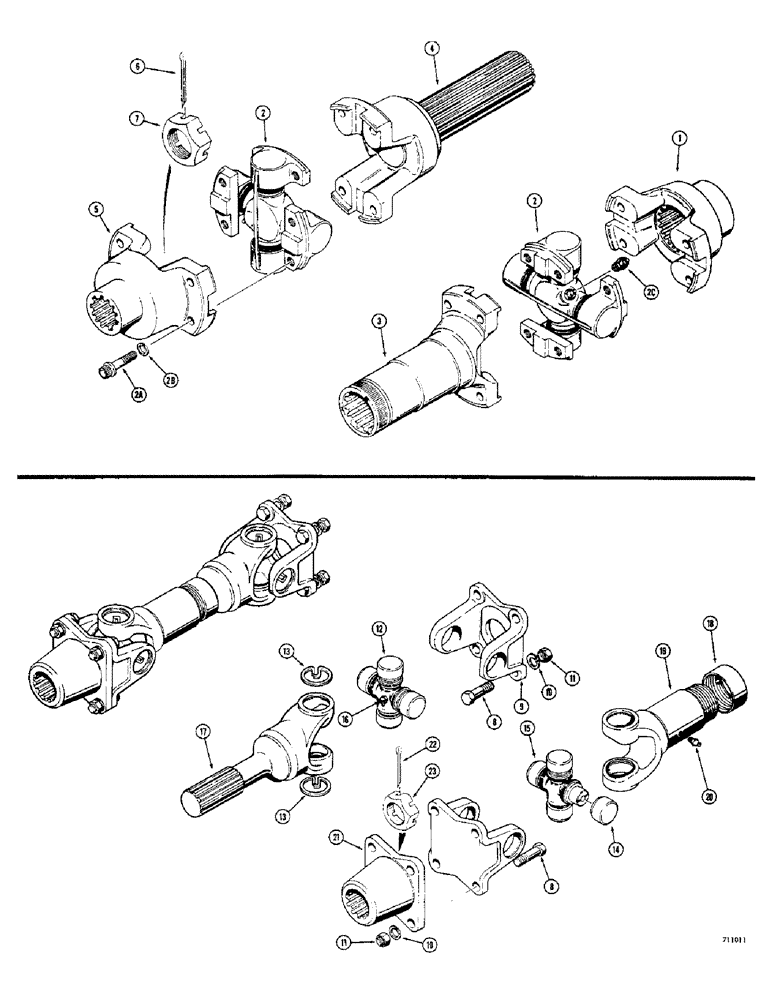

Схема запчастей Case 400C - (204) - GEARMATIC WINCH, WINCH DRIVE SHAFTS, WINCH DRIVE SHAFT, SYNCHROMESH MODELS ONLY (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

D45246

SHAFT ASSEMBLY - winch drive (Synchromesh models only), Includes: Ref. 1 - 5

1шт.

1

D45986

YOKE - splined (At transfer case)

1шт.

2

D45982

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 2A - 2C

2шт.

2a

166-560

FHCS - 7/16" - 20 NF x 1-3/16"

8шт.

2b

D52494

WASHER - 7/16" lock, special

8шт.

2c

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

3

D45985

TUBE AND YOKE - drive shaft

1шт.

4

D45984

SHAFT AND YOKE ASSEMBLY - drive shaft

1шт.

6

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

7

L30731

SLOTTED NUT

- hex., lock (Special)

1шт.

D47321

SHAFT ASSEMBLY - winch drive (Power shift models only), Includes: Ref. 8 - 21

1шт.

8

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16" - 20 NF x 1-1/4", WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

8шт.

9

D47619

YOKE - companion, WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

2шт.

10

92-7

LOCK WASHER,7/16"

WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY) 7/16"

8шт.

11

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF), WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

8шт.

12

T27790

FLEXIBLE JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft, WINCH (POWER SHIFT MODELS ONLY), Includes: Ref. 13 - 16

2шт.

13

O4268CH

SNAP RING - bearing retaining, WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

4шт.

14

1962CHA

BEARING - spider, cup type, WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

4шт.

15

1961CHA

SPIDER - drive shaft, WINCH (POWER SHIFT MODELS ONLY)

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT), WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

1шт.

17

D47630

SHAFT AND YOKE ASSEMBLY - drive shaft, at trans, WINCH (POWER SHIFT MODELS ONLY)

1шт.

18

R14752

DUST CAP

CAP - drive shaft, WINCH (POWER SHIFT MODELS ONLY)

1шт.

19

D47625

YOKE - splined, at winch, DRIVE SHAFT (POWER SHIFT MODELS ONLY)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

1шт.

21

D47618

FLANGE - companion, at winch, DRIVE SHAFT (POWER SHIFT MODELS ONLY)

1шт.

22

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Winch drive shaft (Power shift models only) 1/8" x 2"

1шт.

23

L30731

SLOTTED NUT

- hex., lock (Special), WINCH DRIVE SHAFT (POWER SHIFT MODELS ONLY)

1шт.

Выбрано товаров: 27
