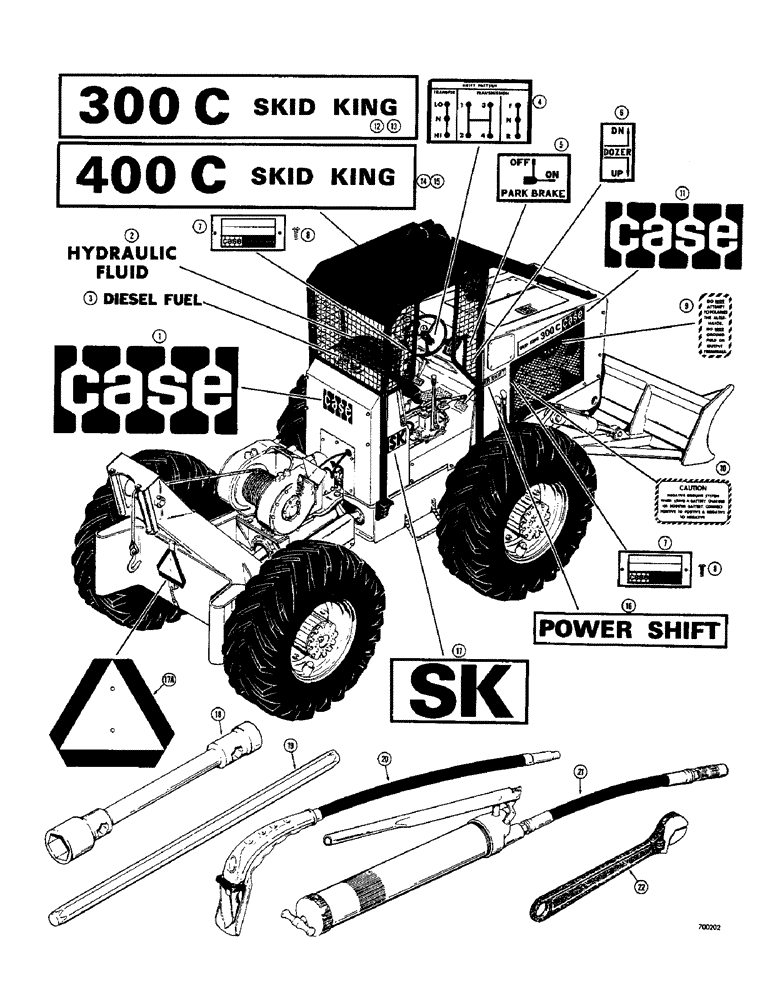

Запчасти Case 400C (248) - IDENTIFICATION PLATES, DECALS AND TOOLS, IDENTIFICATION PLATES AND DECALS (09) - CHASSIS

1

321-1443

DECAL

- Case, rear

1шт.

2

321-229

DECAL

- hydraulic oil

1шт.

3

321-230

DECAL

- Diesel fuel

1шт.

4

D51201

DECAL - shift pattern, Synchromesh models only

1шт.

5

D51202

DECAL - park brake instruction

1шт.

6

D51205

DECAL - dozer control

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - model designation and serial number

2шт.

8

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

- Drive, #4 x 1/4"

4шт.

9

321-1061

DECAL

- alternator instruction

1шт.

10

321-1062

DECAL

- starting instruction

1шт.

11

321-1440

DECAL

- Case, hood

2шт.

12

D51226

DECAL - Skid King 300C, R.H. (300C Skid King only)

1шт.

13

D51227

DECAL - 300C Skid King, L.H. (300C Skid King only)

1шт.

14

D51228

DECAL - Skid King 400C, R.H. (400C Skid King only)

1шт.

15

D51229

DECAL - 400C Skid King, L.H. (400C SKid King only)

1шт.

16

D51203

DECAL - Power Shift, hood (Power Shift Models only)

2шт.

17

D51204

DECAL - SK, fuel tank

2шт.

17a

321-1751

DECAL

- SMV, rear (See Figure 188 for plate and attaching parts)

1шт.

D50635

TOOL KIT - skidder, Includes: Ref. 18 - 22

1шт.

18

D46312

ADJUSTING WRENCH

WRENCH - wheel (1-1/4" - 1/2"), TOOLS

1шт.

19

D46313

HANDLE

- wheel wrench (22" long), TOOLS

1шт.

20

D46314

TOOL

SPOUT - oil, TOOLS

1шт.

21

219-101

GUN, GREASE

GREASE GUN - lever type, TOOLS

1шт.

22

NSS

NOT SOLD SEPARAT

WRENCH - adjustable, TOOLS

1шт.
