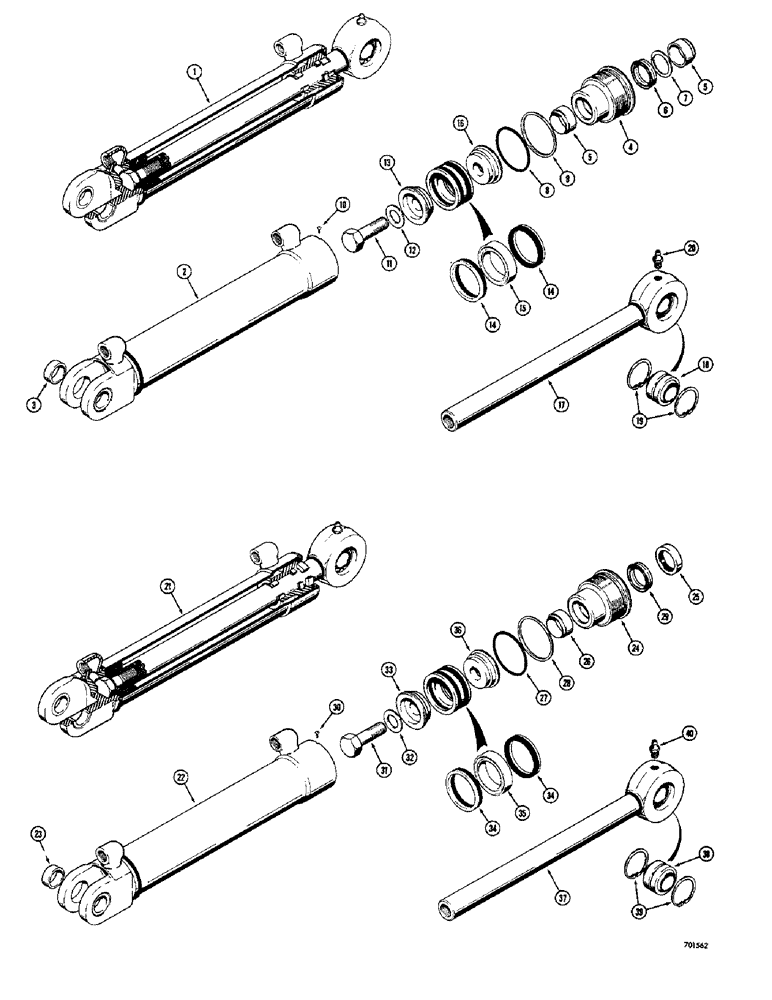

Запчасти Case 400C (242) - DECKING BLADE LIFT CYLINDERS, D49558 AND D49559 DECKING BLADE LIFT CYLINDERS (09) - CHASSIS

1

D49558

CYLINDER - decking blade lift, L.H. (3-1/2" I.D. x 16" stroke) When stock is exhausted, order G32597 cylinder for service, Includes: Ref. 2 - 20

1шт.

These cylinders use D42873 packing kit. See figure 172A.

1шт.

1

G32597

CYLINDER - decking blade lift, L.H. (Listed below), Includes: Ref. 2 - 20

1шт.

These cylinders use D42873 packing kit. See figure 172A.

1шт.

1

D49559

CYLINDER - decking blade lift, R.H. (3-1/2" I.D. x 16" stroke) When stock is exhausted, order G32596 cyl. for service, Includes: Ref. 2 - 20

1шт.

These cylinders use D42873 packing kit. See figure 172A.

1шт.

1

G32596

CYLINDER - decking blade lift, R.H. (Listed below), Includes: Ref. 2 - 20

1шт.

These cylinders use D42873 packing kit. See figure 172A.

1шт.

2

D49560

TUBE - cylinder, L.H., Includes: Ref. 3

1шт.

2

D49561

TUBE - cylinder, R.H., Includes: Ref. 3

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- cylinder tube

2шт.

4

D45069

GLAND

- packing (When stock is exhausted, order G32743 Gland Assembly for service - see item 24 below)

1шт.

5

D27432

SHIM

- piston rod

2шт.

6

D36970

CUP

SEAL - piston rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland to tube

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8 - 32 NC x 1/2")

1шт.

11

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Special Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

13

D28367

PISTON

- split, bolt end half

1шт.

14

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron

2шт.

15

D47208

RING

- packing, piston

1шт.

16

D28369

PISTON

- split, rod end

1шт.

17

D49563

ROD

- piston (1-3/4" dia.), Includes: Ref. 18 and 19

1шт.

18

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- rod, pivotal

1шт.

19

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

21

G32597

CYLINDER - decking blade lift, L.H. (3-1/2" I.D. x 16" stroke), G32596 AND G32597 WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23 - 29

1шт.

These cylinders use G32298 packing kit. See figure 172A.

1шт.

21

G32596

CYLINDER - decking blade lift, R.H. (3-1/2" I.D. x 16 " stroke), G32596 AND G32597 WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23 - 29

1шт.

These cylinders use G32298 packing kit. See figure 172A.

1шт.

22

D49560

TUBE - cylinder, L.H., G32596 AND G32597 DECKING BLADE LIFT WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23

1шт.

22

D49561

TUBE - cylinder, R.H., G32596 AND G32597 DECKING BLADE LIFT WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23

1шт.

23

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- cylinder tube, G32596 AND G32597 DECKING BLADE LIFT WITH U-TYPE PRESS-IN OUTER ROD WIPER

2шт.

G32743

GLAND

ASSEMBLY - packing, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

GLAND - packing, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

25

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER

1шт.

26

D27432

SHIM

- rod, inner, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER

1шт.

27

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

28

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

29

D36970

CUP

SEAL - piston rod, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER WIPER

1шт.

30

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8 - 32 NC x 1/2"), G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

31

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Special, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

32

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

33

D28367

PISTON

- split, bolt end half, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

34

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

2шт.

35

D47208

RING

- packing, piston, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

36

D28369

PISTON

- split, rod end half, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER WIPER

1шт.

37

D49563

ROD

- piston (1-3/4" dia.), G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER WIPER, Includes: Ref. 38 and 39

1шт.

38

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- rod, pivotal, G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER WIPER

1шт.

39

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing, G32596 and G32597 decking blade lift cylinders with u-type press-in outer rod wiper 2.44", Int, #244

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), G32596 AND G32597 DECKING BLADE LIFT CYLINDERS WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.
