Запчасти Case 400C (198) - CANOPY AND EXHAUST SYSTEM, CANOPY AND RELATED PARTS (09) - CHASSIS

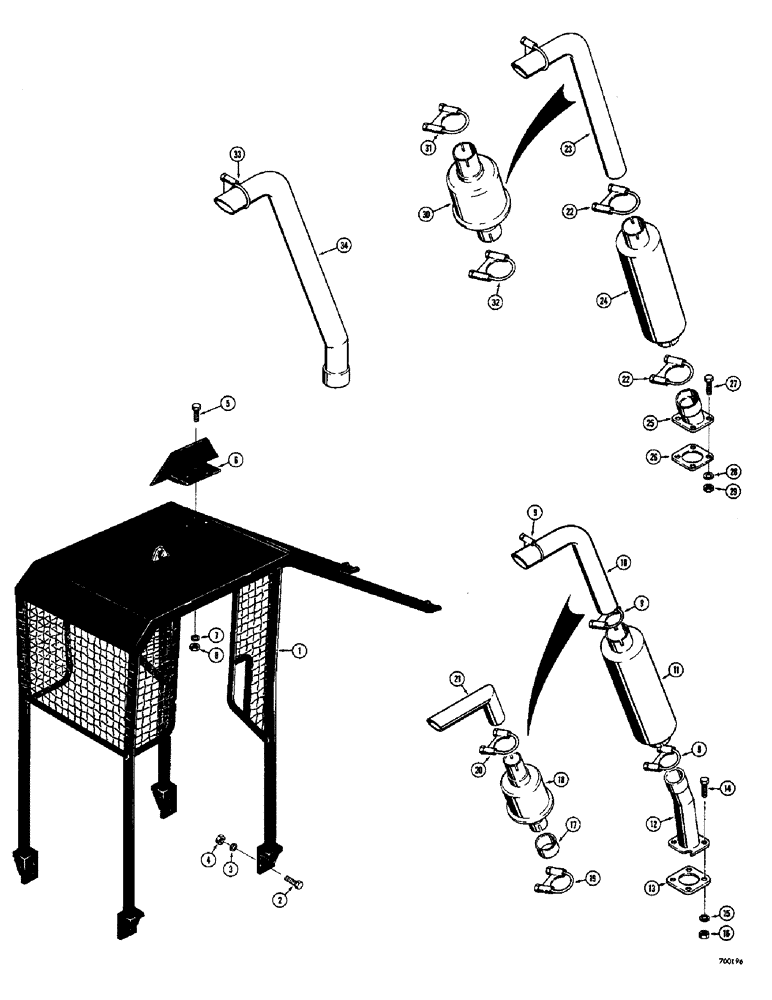

Схема запчастей Case 400C - (198) - CANOPY AND EXHAUST SYSTEM, CANOPY AND RELATED PARTS (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

D50895

CANOPY - standard (Synchromesh models only)

1шт.

1

D51182

CANOPY - West Coast (Synchromesh models only)

1шт.

1

D50896

CANOPY - standard (Power shift models only)

1шт.

1

D51183

CANOPY - West Coast (Power shift models only)

1шт.

2

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3"

10шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

10шт.

4

25-106

NUT,3/8"-16, G5

- hex. (1" - 8 NC)

10шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

6

D50894

DEFLECTOR - exhaust and water

1шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

9

A17851

CLAMP

- muffler and exhaust pipe, SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

3шт.

10

D50888

PIPE - exhaust, upper, SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

1шт.

11

L13782

MUFFLER

- exhaust, SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

1шт.

12

D50891

PIPE - exhaust, lower, SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

1шт.

13

D50893

GASKET - pipe to manifold, EXHAUST SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Exhaust system and spark arrestor (300C Synchromesh Models) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

Exhaust system and spark arrestor (300C synchromesh models) 1/2"

4шт.

16

129-539

NUT - hex. (1/2" - 13 NC) Brass, EXHAUST SYSTEM AND SPARK ARRESTOR (300C SYNCHROMESH MODELS)

4шт.

17

D51190

SLEEVE - spacer (Used with spark arrestor only), EXHAUST SYSTEM (300C SYNCHROMESH MODELS)

1шт.

D51187

SPARK ARRESTOR ASSEMBLY - engine, EXHAUST SYSTEM (300C SYNCHROMESH MODELS), Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SPARK ARRESTOR - engine, EXHAUST SYSTEM (300C SYNCHROMESH MODELS)

1шт.

19

D48824

CLAMP

- spark arrestor, EXHAUST SYSTEM (300C SYNCHROMESH MODELS)

1шт.

20

D48824

CLAMP

- exhaust pipe (Used with spark arrestor only), SYSTEM (300C SYNCHROMESH MODELS)

1шт.

REPLACED BY L73711

1шт.

21

D51189

PIPE - exhaust, upper (Used with spark arrestor only), SYSTEM (300C SYNCHROMESH MODELS)

1шт.

22

A17851

CLAMP

- muffler and exhaust pipe, SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

3шт.

23

D50889

PIPE - exhaust, upper, SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

1шт.

24

L13782

MUFFLER

- exhaust, SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

1шт.

25

D50892

PIPE - exhaust, lower, SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

1шт.

26

D50893

GASKET - pipe to manifold, EXHAUST SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Exhaust system and spark arrestor (300C Power Shift Models) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

28

92-8

LOCK WASHER,1/2"

Exhaust system and spark arrestor (300C power shift models) 1/2"

4шт.

29

129-539

NUT - hex. (1/2" - 13 NC) Brass, EXHAUST SYSTEM AND SPARK ARRESTOR (300C POWER SHIFT MODELS)

4шт.

D51188

SPARK ARRESTOR ASSEMBLY - engine, EXHAUST SYSTEM (300C POWER SHIFT MODELS), Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPARK ARRESTOR - engine, EXHAUST SYSTEM (300C POWER SHIFT MODELS)

1шт.

31

D48898

CLAMP - spark arrestor, EXHAUST SYSTEM (300C POWER SHIFT MODELS)

1шт.

32

D48898

CLAMP - exhaust pipe (Used with spark arrestor only), SYSTEM (300C POWER SHIFT MODELS)

1шт.

33

A17851

CLAMP

- exhaust pipe, SYSTEM (400C MODELS)

2шт.

34

D50890

PIPE - exhaust, SYSTEM (400C MODELS)

1шт.

Выбрано товаров: 40
