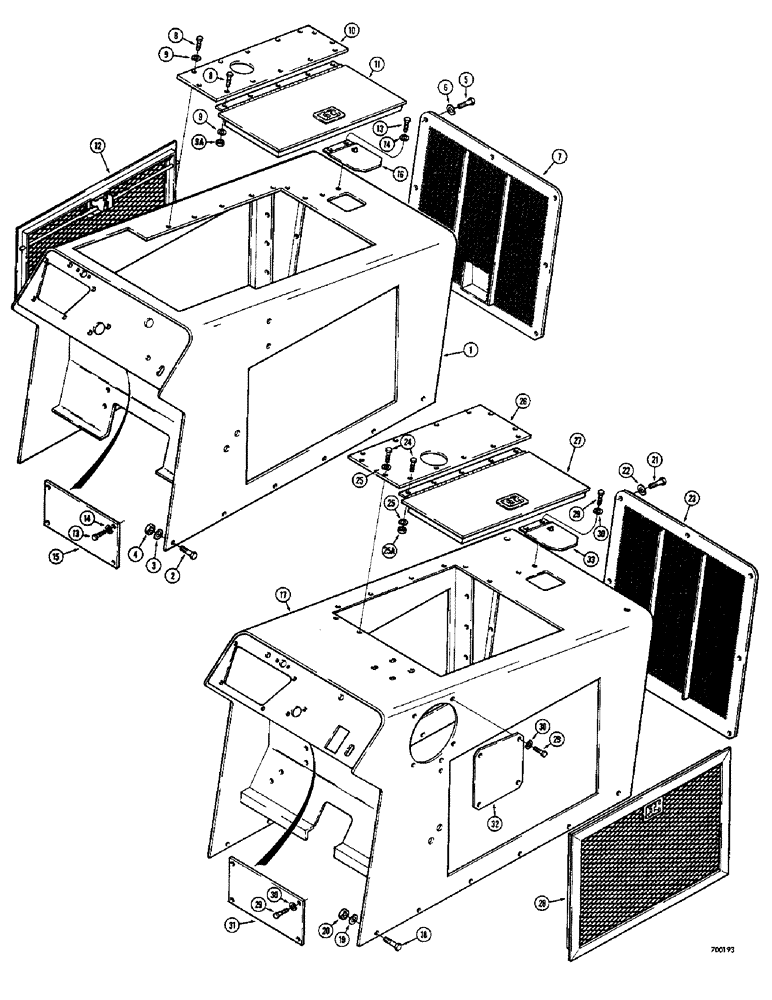

Запчасти Case 400C (192) - HOOD, SIDE SCREENS AND GRILLE, USED ON SYNCHROMESH MODELS ONLY (09) - CHASSIS

1

D50875

HOOD - engine

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

3

92-8

LOCK WASHER,1/2"

12шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

6

92-8

LOCK WASHER,1/2"

7шт.

7

D50877

GRILLE - radiator guard

1шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

13шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

9a

25-104

NUT,1/4"-20, G5

5шт.

10

D50880

PANEL - hood, engine access

1шт.

11

D50879

DOOR - hood, engine access

1шт.

12

D47300

SCREEN - engine side, brush guard

2шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

D50871

COVER - access, firewall

1шт.

16

D50881

COVER AND LATCH ASSEMBLY - access, radiator cap

1шт.

17

D50876

HOOD - engine, USED ON POWER SHIFT MODELS ONLY

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used on Power Shift Models only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

19

92-8

LOCK WASHER,1/2"

SLM emblem, USED ON POWER SHIFT MODELS ONLY 1/2"

12шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), USED ON POWER SHIFT MODELS ONLY

12шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used on Power Shift Models only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

7шт.

22

92-8

LOCK WASHER,1/2"

SLM emblem, USED ON POWER SHIFT MODELS ONLY 1/2"

7шт.

23

D50878

GRILLE - radiator guard, USED ON POWER SHIFT MODELS ONLY

1шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on Power Shift models only Hex, 1/4"-20 x 1", G5

13шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on Power Shift models only 1/4"

13шт.

25a

25-104

NUT,1/4"-20, G5

Used on Power Shift Models Only 1/4"-20, G5

5шт.

26

D50884

PANEL - hood, engine access (300C models only), USED ON POWER SHIFT MODELS ONLY

1шт.

26

D50885

PANEL - hood, engine access (400C models only), USED ON POWER SHIFT MODELS ONLY

1шт.

27

D50879

DOOR - hood, engine access, USED ON POWER SHIFT MODELS ONLY

1шт.

28

D47300

SCREEN - engine side, brush guard, USED ON POWER SHIFT MODELS ONLY

2шт.

29

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on Power Shift models only Hex, 1/4"-20 x 1", G5

10шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on Power Shift models only 1/4"

10шт.

31

D50871

COVER - access, firewall, USED ON POWER SHIFT MODELS ONLY

1шт.

32

D50886

COVER

- access, air cleaner, USED ON POWER SHIFT MODELS ONLY

1шт.

33

D50881

COVER AND LATCH ASSEMBLY - access, radiator cap, USED ON POWER SHIFT MODELS ONLY

1шт.
