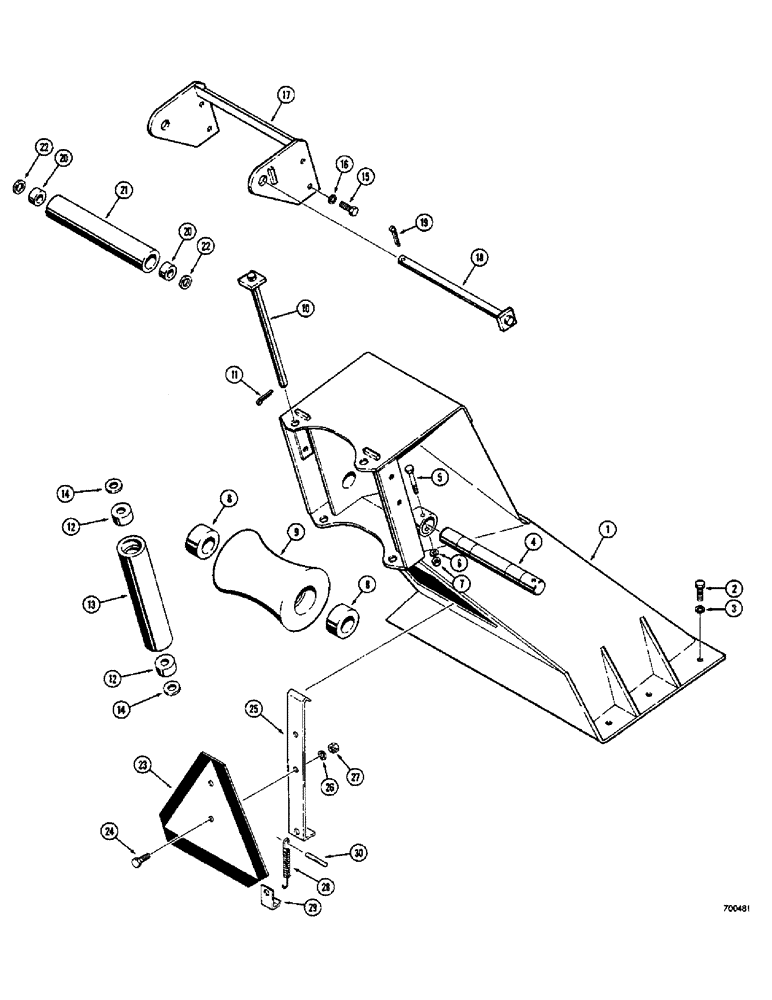

Запчасти Case 400C (188) - FAIRLEAD FRAME AND FAIRLEADS (09) - CHASSIS

1

D50947

FRAME - fairlead

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

D45774

SHAFT - horizontal fairlead mounting

1шт.

5

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

8

D45773

BEARING - ball type, horizontal fairlead (1-3/4" wide) Used with D45772 roller

2шт.

8

D53312

BEARING

- ball type, horizontal fairlead (1-1/16" wide) Used with D53311 roller

2шт.

9

D45772

ROLLER

- horizontal fairlead (Used on 300C Synchromesh models before Sn. 5946, 300C Power shift models before Sn. 5471 and 400C models before Sn. 6806) When stock is exhausted, order (1) D53311 roller and (2) D53312 bearings

1шт.

9

D53311

ROLLER - horizontal fairlead (Used on 300C Synchromesh models Sn. 5946 and after, 300C Power shift models Sn. 5471 and after and 400C models Sn. 6806 and after)

1шт.

10

D45771

SHAFT - vertical fairlead mounting

2шт.

11

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

12

D45770

BEARING - ball type, vertical fairlead

4шт.

13

D45769

ROLLER - vertical fairlead

2шт.

14

D45768

WASHER - vertical fairlead

4шт.

15

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Upper fairlead roller Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Upper Fairlead Roller 5/8"

4шт.

17

D50948

BRACKET - mounting, UPPER FAIRLEAD ROLLER

1шт.

18

D45771

SHAFT - upper roller, FAIRLEAD

1шт.

19

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), , Upper Fairlead Roller 3/8" x 2 1/2"

1шт.

20

D45770

BEARING - ball type, upper roller FAIRLEAD

2шт.

21

D45769

ROLLER - upper fairlead

1шт.

22

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1") UPPER FAIRLEAD ROLLER

2шт.

23

A59449

NO LONGER SERVICED

PLATE - SMV emblem (Includes decal - see Figure 246), SLOW MOVING VEHICLE EMBLEM

1шт.

24

163-12

SCREW,Hex, #10 - 24 x 3/4"

HHMS - #10 - 24 NC x 3/4", SLOW MOVING VEHICLE EMBLEM

2шт.

25

D51509

BRACKET - emblem, SLOW MOVING VEHICLE

1шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

27

129-7

NUT,Hex, #10 - 24

- #10 - 24 NC, SLOW MOVING VEHICLE EMBLEM

2шт.

28

D51510

SPRING - bracket, SLOW MOVING VEHICLE EMBLEM

1шт.

29

D51511

ANCHOR

- spring, lower, SLOW MOVING VEHICLE EMBLEM

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - spring, upper, SLOW MOVING VEHICLE EMBLEM

1шт.
