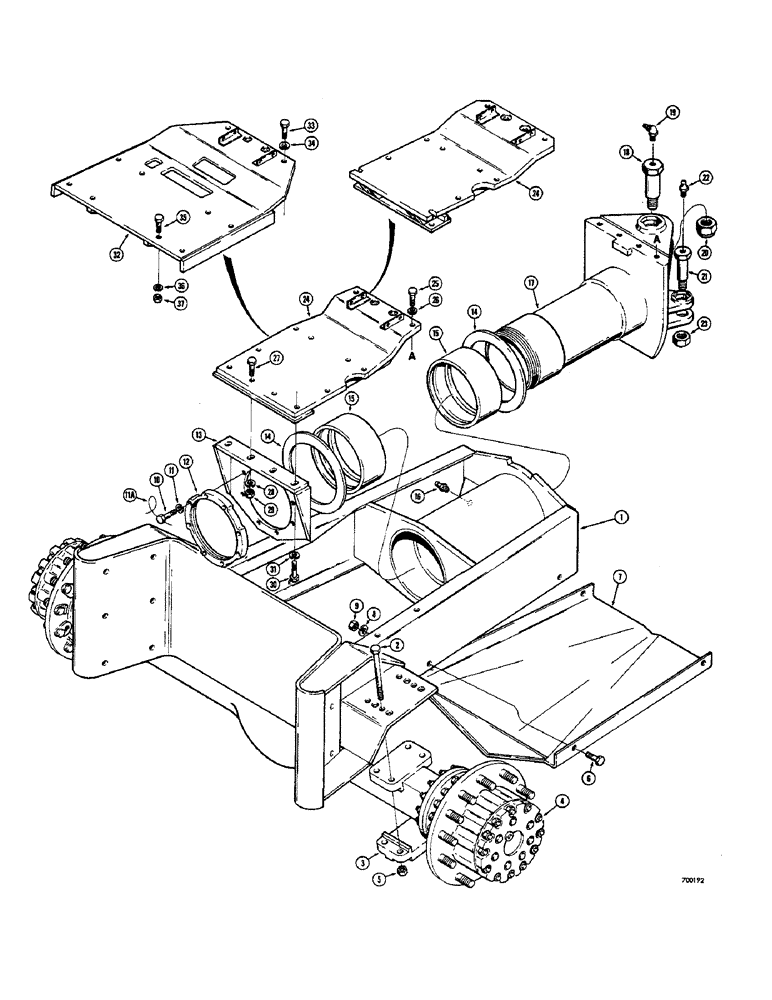

Запчасти Case 400C (186) - REAR FRAME AND AXLE (09) - CHASSIS

1

D50258

SPARE PART REAR - skidder

1шт.

2

15-12136

BOLT

HHCS - 3/4"-10 NC x 8-1/2"

8шт.

Standard PR 75 Axle and mounting hardware are shown. For optional PR154 Axle mounting hardware, see Figure 160.

1шт.

3

L30662

LARGE PLATE

PLATE, LARGE PAD - mounting, axle to rear frame

2шт.

Standard PR 75 Axle and mounting hardware are shown. For optional PR154 Axle mounting hardware, see Figure 160.

1шт.

4

REF

INSTRUCTION

AXLE ASSY - rear (Parts list Figures 148 thru 160)

1шт.

Standard PR 75 Axle and mounting hardware are shown. For optional PR154 Axle mounting hardware, see Figure 160.

1шт.

5

131-16

LOCK NUT,3/4"-10, GB

8шт.

Standard PR 75 Axle and mounting hardware are shown. For optional PR154 Axle mounting hardware, see Figure 160.

1шт.

6

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

7

D45777

PAN - rear axle and drive shaft guard

1шт.

8

92-10

LOCK WASHER,5/8"

4шт.

9

25-1010

NUT,5/8"-11, G5

4шт.

10

D45764

SPARE PART Special

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

11a

391-514

LOCK WIRE - bolt

1шт.

12

D45766

SPARE PART Adjusting, center hinge tube

1шт.

13

D45765

SPARE PART Center hinge tube and winch bracket

1шт.

14

D45763

SPARE PART Thrust

2шт.

15

D45767

SPARE PART Center hinge tube

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

D50284

SPARE PART Center hinge

1шт.

18

D50263

SPARE PART Pivot, front to rear frame

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

20

131-43

LOCK NUT,1 1/2"-12

Hex

2шт.

21

D50260

PIN

Pivot, steering cylinder to rear frame (With internal grease channel) Use D53301 "solid type" mounting pin and grease pin through fitting in cylinder rod eye

2шт.

21

D53301

PIN

Pivot, steering cylinder to rear frame (Solid type)

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

2шт.

23

131-39

NUT,1"-14

Hex

2шт.

24

D50950

SUPPORT - winch (Power shift models), Gearmatic mounting parts

1шт.

24

D51230

SUPPORT - winch (Synchromesh models), Gearmatic mounting parts

1шт.

25

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Gearmatic winch mounting parts

4шт.

26

92-12

LOCK WASHER,3/4"

Gearmatic winch mounting parts

4шт.

27

113-734

X

HHCS - 3/4" - 10 NC x 2" (Grade 8), Gearmatic winch mounting parts

2шт.

28

92-12

LOCK WASHER,3/4"

Gearmatic winch mounting parts

2шт.

29

129-572

NUT,3/4"-10, G8

Gearmatic winch mounting parts

2шт.

30

113-721

X

HHCS - 3/4" - 10 NC x 3" (Grade 8), Gearmatic winch mounting parts

2шт.

31

92-12

LOCK WASHER,3/4"

Gearmatic winch mounting parts

2шт.

32

D50949

SPARE PART SUPPORT - winch (Synchromesh and Power shift models), Sweed mounting parts

1шт.

33

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Sweed winch mounting parts

4шт.

34

92-12

LOCK WASHER,3/4"

Sweed winch mounting parts

4шт.

35

113-734

X

HHCS - 3/4" - 10 NC x 2" (Grade 8), Sweed winch mounting parts

4шт.

36

92-12

LOCK WASHER,3/4"

Sweed winch mounting parts

4шт.

37

129-572

NUT,3/4"-10, G8

Sweed winch mounting parts

4шт.
