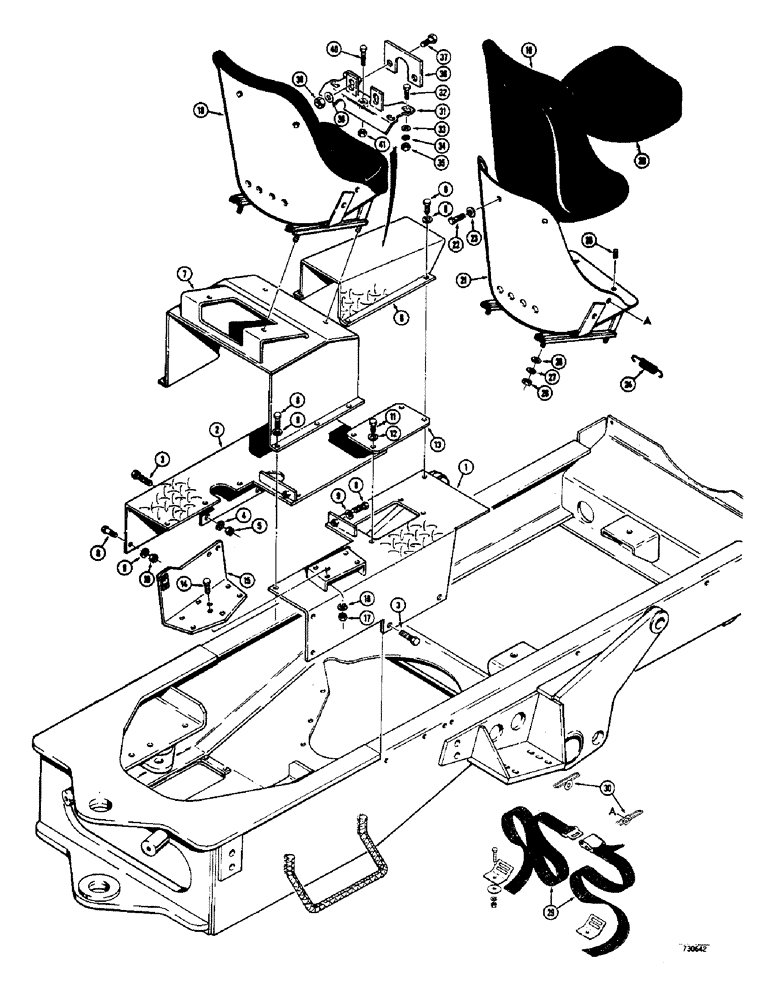

Запчасти Case 400C (184) - POWER SHIFT TRANSMISSION, SEAT AND FLOOR PLATES (09) - CHASSIS

1

D50958

PLATE - floor, R.H.

1шт.

2

D50959

PLATE - floor, L.H.

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

6

D50955

COVER - drive shaft, center

1шт.

7

D50962

SHROUD AND SEAT BRACKET - transmission

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

9

92-6

LOCK WASHER,3/8"

16шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

D50953

COVER - R.H. floor plate

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

15

D50960

BRACKET - winch control

1шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

18

L11074

SEAT

ASSEMBLY - operator's, Includes: Ref. 19 - 28

1шт.

19

L30536

BACKREST

- seat

1шт.

20

L30535

SEAT CUSHION

CUSHION - seat

1шт.

21

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

22

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

23

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

24

L30533

VALVE SPRING

SPRING - adjusting

2шт.

25

L30534

X

PIN - cushing alignment

2шт.

26

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

29

D44411

SEAT

BELT ASSEMBLY - if used

1шт.

30

D51488

SUPPORT - seat belt

2шт.

L51720

KIT - drive shaft guard, Includes: Ref. 31 - 41

1шт.

31

L51696

BRACKET - drive shaft guard

1шт.

32

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

33

95-8

WASHER,1/2"

- plain 1/2"

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

36

L51695

COLLAR - drive shaft guard

1шт.

37

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

HHCS - 3/4" - 16 NF x 1-3/4"

2шт.

38

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4")

2шт.

39

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

2шт.

40

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

41

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam (1/2"-13 NC)

1шт.
