Запчасти Case 400C (182) - SYNCHROMESH TRANSMISSION, SEAT AND FLOOR PLATES (09) - CHASSIS

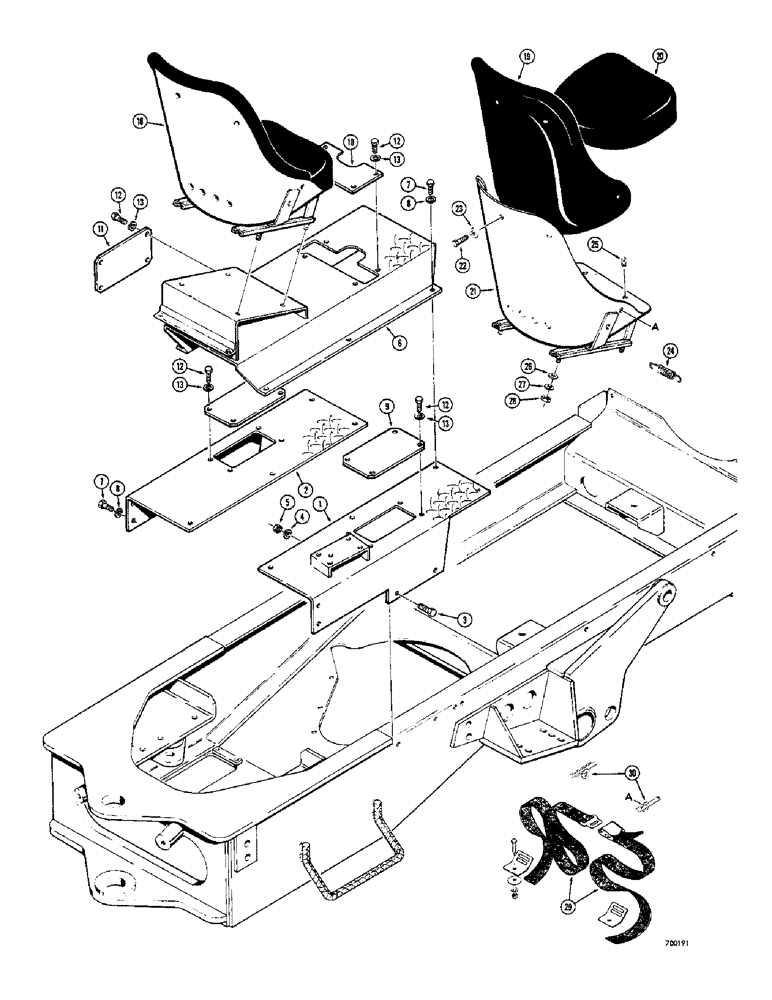

Схема запчастей Case 400C - (182) - SYNCHROMESH TRANSMISSION, SEAT AND FLOOR PLATES (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

D50956

PLATE - floor, R.H.

1шт.

2

D50957

PLATE - floor, L.H.

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

6

D50961

COVER - drive shaft, center

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

8

92-6

LOCK WASHER,3/8"

10шт.

9

D50953

COVER - floor plate, R.H. and L.H. (Top)

2шт.

10

D50952

PLATE - drive shaft cover

1шт.

11

D50954

COVER - floor plate, R.H. (Side)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

13

92-6

LOCK WASHER,3/8"

16шт.

18

L11074

SEAT

ASSEMBLY - operator's, Includes: Ref. 19 - 28

1шт.

19

L30536

BACKREST

- seat

1шт.

20

L30535

SEAT CUSHION

CUSHION - seat

1шт.

21

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

22

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

23

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

24

L30533

VALVE SPRING

SPRING - adjusting

2шт.

25

L30534

X

PIN - cushion alignment

2шт.

26

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

29

D44411

SEAT

BELT ASSEMBLY - if used

1шт.

30

D51488

SUPPORT - seat belt

2шт.

Выбрано товаров: 26
