Запчасти Case 400C (246) - L26379 HYDRAULIC PUMP (08) - HYDRAULICS

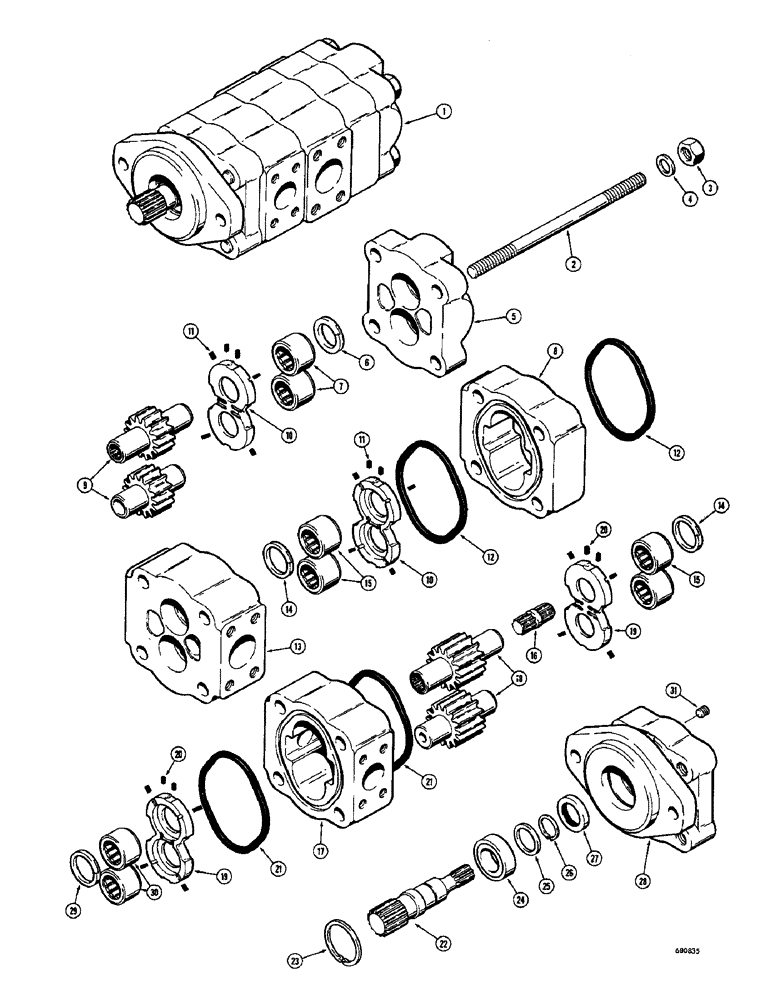

Схема запчастей Case 400C - (246) - L26379 HYDRAULIC PUMP (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

L26379

PUMP

ASSEMBLY - hydraulic, decking blade and steering, Includes: Ref. 2 - 31

1шт.

2

L32111

STUD

- special (5/8" - 11 NC x 9-3/4")

4шт.

3

L32112

NUT

- hex., special (5/8" - 11 NC)

4шт.

4

D31957

WASHER

- special

4шт.

L32109

COVER

ASSEMBLY - closed end, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

6

L32096

RING

- seal, bronze

1шт.

7

L32097

BEARING, ROLLER, CYL

- roller

2шт.

8

L32108

HOUSING

- gear (1" dia. gears)

1шт.

9

L32107

GEAR

S - matched set, drive and driven (1" dia.)

1шт.

10

L32101

PLATE

- thrust

2шт.

11

L32099

SEAL

- pocket, thrust plate

12шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- ring, square edge

2шт.

L32105

CARRIER

ASSEMBLY - bearing, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

14

L32096

RING

- seal, bronze

2шт.

15

L32097

BEARING, ROLLER, CYL

- roller

4шт.

16

L32104

SHAFT

- connecting, drive gears

1шт.

17

L32103

HOUSING - gear (1-1/2" dia. gears)

1шт.

18

L32102

GEAR WHEEL

GEARS - matched set, drive and driven (1-1/2" dia.)

1шт.

19

L32101

PLATE

- thrust

2шт.

20

L32099

SEAL

- pocket, thrust plate

12шт.

21

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- ring, square edge

2шт.

22

L32098

SHAFT

- drive, pump

1шт.

23

71466

SNAP RING,#206, 2.190", Int, Spiral

RING - shaft retainer

1шт.

24

18-970

BALL BEARING

BEARING - drive shaft

1шт.

25

L32092

WASHER

RETAINER - bearing

1шт.

26

B18208

SNAP RING,#100, Ext

bearing #100, Ext

1шт.

27

L32093

SEAL

- lip, drive shaft

1шт.

L32094

COVER ASSY

COVER ASSEMBLY - shaft end, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

29

L32096

RING

- seal, bronze

1шт.

30

L32097

BEARING, ROLLER, CYL

- roller

2шт.

31

83-76

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex. socket head (7/16" - 14 NC x 3/8")

1шт.

Выбрано товаров: 34
