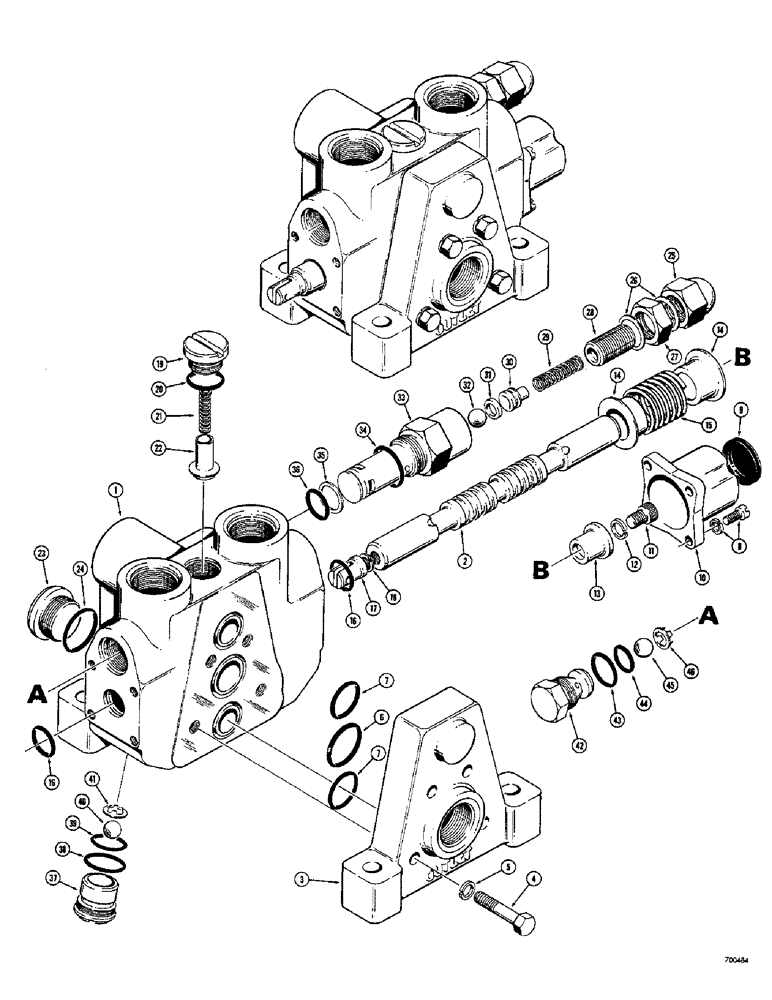

Запчасти Case 400C (244) - D50985 DECKING BLADE CONTROL VALVE (08) - HYDRAULICS

D50985

VALVE ASSEMBLY - complete, decking blade control, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

D51504

COVER - end

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

5

192-111

WASHER,3/8"

- lock, SAE light () 3/8"

4шт.

6

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

7

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

SEAL - "O"ring, small

2шт.

8

193-542

SCREW AND LOCKWASHER - bonnet (1/4" - 20 NC x 1")

4шт.

9

A55906

DIAPHRAGM

- bonnet

1шт.

10

D51496

HOOD ASSY.

BONNET - end cap

1шт.

11

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SHCS - 3/8" - 16 NC x 3/4" (Spool end)

1шт.

12

192-61

LOCK WASHER,3/8"

3/8"

1шт.

13

D51495

COLLAR

- spool end

1шт.

14

D51494

RETAINER

- spring

2шт.

15

D51500

SPRING

- spool return

1шт.

16

D51497

SEAL - spool

2шт.

17

D23694

ADAPTER

- spool end

1шт.

18

192-111

WASHER,3/8"

- lock, SAE light () 3/8"

1шт.

19

D51501

PLUG - check

1шт.

20

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - check plug

1шт.

21

D28840

SPRING

- check

1шт.

22

D51502

POPPET - check

1шт.

23

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

3/4" JIC, Includes: Ref. 24 Hex Hd, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, 218-5158 plug

1шт.

D51505

MAIN RELIEF VALVE ASSEMBLY - control valve, Includes: Ref. 25 - 36

1шт.

25

129-876

NUT - acorn

1шт.

26

D51523

WASHER

- sealing

2шт.

27

D51524

NUT - jam

1шт.

28

D51525

SCREW - adjusting

1шт.

29

D51526

SPRING - main relief valve

1шт.

30

D51527

GUIDE - ball

1шт.

31

D51528

SEAL

- ball guide

1шт.

32

211-106

BALL

- main relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - main relief valve

1шт.

34

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring, body (Large)

1шт.

35

D51530

RING

- back-up

1шт.

36

D51516

O-RING

SEAL - "O"ring, body (Small)

1шт.

37

D51521

BODY - anti-cavitation check, LOWER (EARLY PRODUCTION ONLY)

1шт.

38

D51516

O-RING

SEAL - "O"ring, outer, LOWER ANTI-CAVITATION CHECK (EARLY PRODUCTION ONLY)

1шт.

39

A55911

O-RING,0.807" ID

SEAL - "O"ring, inner, LOWER ANTI-CAVITATION CHECK (EARLY PRODUCTION ONLY)

1шт.

40

D51519

BALL - anti-cavitation check, LOWER (EARLY PRODUCTION ONLY)

1шт.

41

D51520

RETAINER - ball, LOWER ANTI-CAVITATION CHECK (EARLY PRODUCTION ONLY)

1шт.

42

D51515

BODY

- anti-cavitation check, UPPER ANTI-CAVITATION CHECK (LATE PRODUCTION ONLY)

1шт.

43

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O"ring, outer, UPPER ANTI-CAVITATION CHECK (LATE PRODUCTION ONLY)

1шт.

44

D39718

O-RING,0.989" ID x 1.129" OD

SEAL - "O"ring, inner, UPPER ANTI-CAVITATION CHECK (LATE PRODUCTION ONLY)

1шт.

45

D51513

BALL

- anti-cavitation check, UPPER (LATE PRODUCTION ONLY)

1шт.

46

D51514

RETAINER - ball, UPPER ANTI-CAVITATION CHECK (LATE PRODUCTION ONLY)

1шт.
