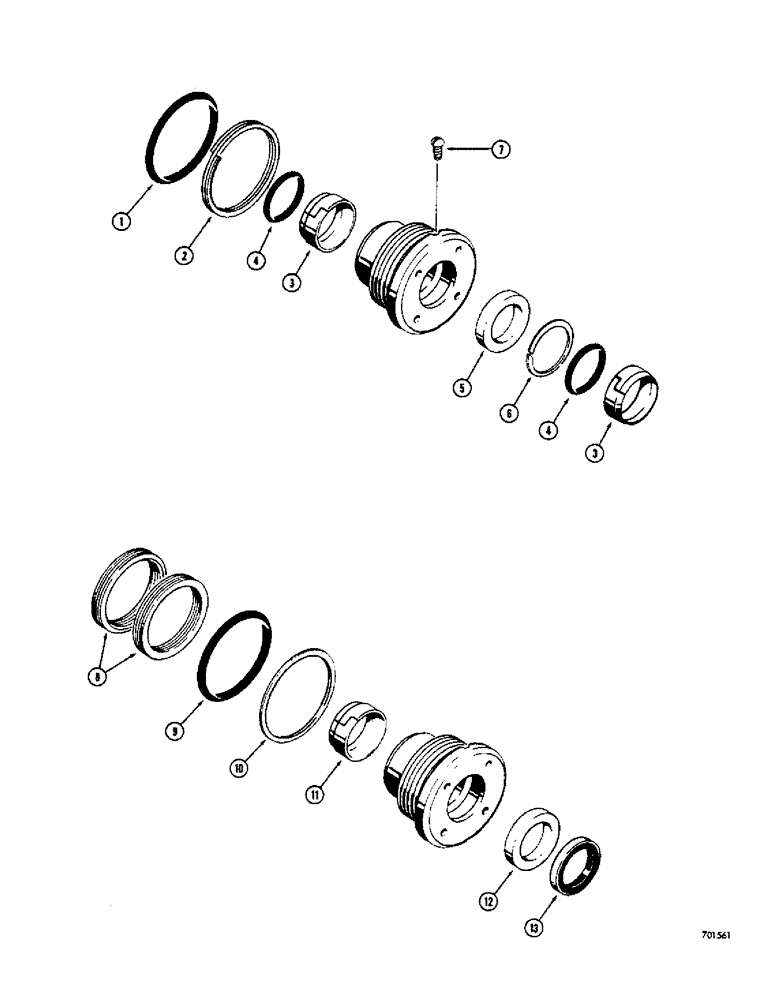

Запчасти Case 400C (243C) - CYLINDER PACKING KITS, USED IN DECKING BLADE CYLINDERS WITH 3-1/2" I.D. TUBE AND 1-3/4" DIAMETER ROD (08) - HYDRAULICS

D42873

GASKET KIT

KIT - gland packing, Includes: Ref. 1 - 7

1шт.

1

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

2

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

3

D27432

SHIM

- rod

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

5

D36970

CUP

SEAL - rod

1шт.

6

D28499

RING

- backup, rod seal

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

G32298

SEAL

KIT - cylinder packing, G32298, Includes: Ref. 8 - 13

1шт.

8

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, G32298 CYLINDER PACKING KIT

2шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32298 CYLINDER PACKING KIT

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32298 CYLINDER PACKING KIT

1шт.

11

D27432

SHIM

- rod, inner, G32298 CYLINDER PACKING KIT

1шт.

12

D36970

CUP

SEAL - rod, G32298 CYLINDER PACKING KIT

1шт.

13

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32298 CYLINDER PACKING KIT

1шт.
