Запчасти Case 400C (240) - CONTROL LEVER AND LIFT HYDRAULICS (08) - HYDRAULICS

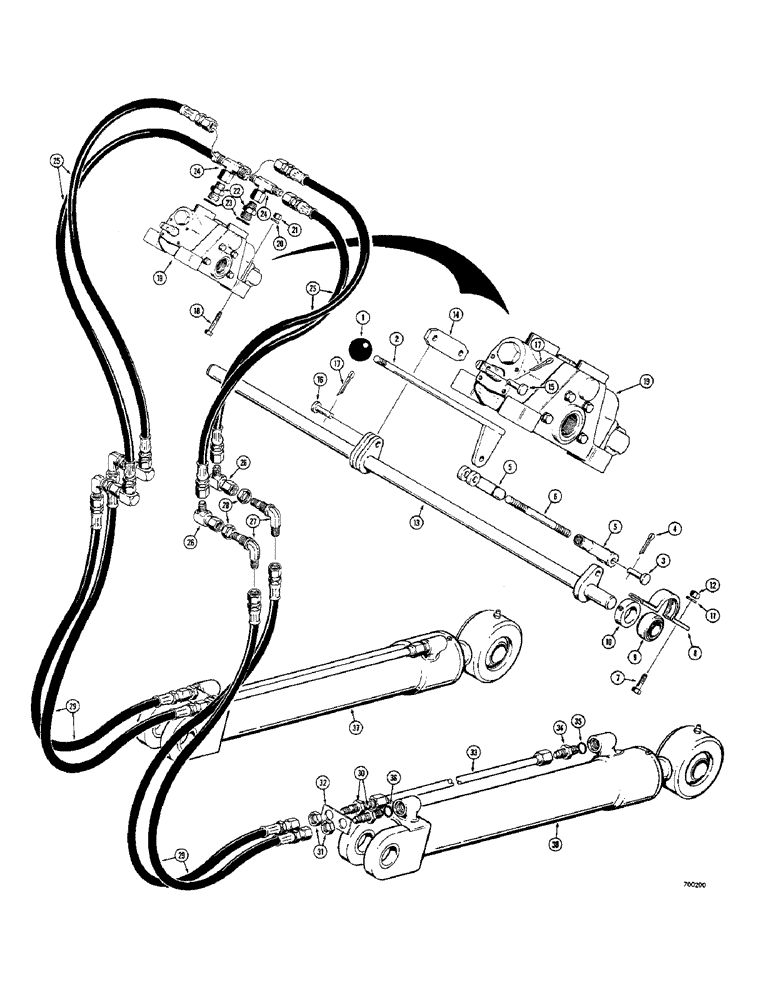

Схема запчастей Case 400C - (240) - CONTROL LEVER AND LIFT HYDRAULICS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D45722

KNOB

- decking blade control lever

1шт.

2

D50987

LEVER - decking blade control

1шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

5

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end

2шт.

6

D50990

ROD - control, lever to shaft (Synchromesh models only)

1шт.

6

D50992

ROD - control, lever to shaft (Power Shift models only)

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

D50986

BEARING BLOCK ASSEMBLY - shaft, Included: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

9

F13361

BEARING

- shaft

1шт.

10

T10662

COLLAR

- bearing retainer

1шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

13

D50989

SHAFT - cross, decking blade control (Synchromesh models only)

1шт.

13

D50991

SHAFT - cross, decking blade control (Power Shift models only)

1шт.

14

D52316

LINK - cross shaft to valve (Synchromesh models only)

1шт.

14

D50988

LINK - cross shaft to valve (Power Shift models only)

1шт.

15

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (1/4")

1шт.

16

A8824

PIN

- yoke (Special)

1шт.

17

132-4

PIN - cotter, 1/16" dia. x 7/16"

2шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

3шт.

19

D50985

VALVE - hydraulic, decking blade control (Parts list Figure 244)

1шт.

20

92-8

LOCK WASHER,1/2"

3шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

22

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (3/4" J.I.C. x 5/8" J.I.C.), Included: Ref. 23

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5063 connector

1шт.

24

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- swivel, outlet (5/8" J.I.C.)

2шт.

25

D51487

HOSE

- from decking blade valve, Synchromesh Models (27" long)

4шт.

25

D45854

HOSE - from decking blade valve, Power Shift Models (31" long)

4шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- swivel, 90 degrees (5/8" J.I.C.)

4шт.

27

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- bulkhead type, 90 degrees (5/8" J.I.C.)

4шт.

28

50875

NUT

- lock, 218-695 elbow

4шт.

29

D45854

HOSE - to decking blade cylinders (31" long)

4шт.

30

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

31

50875

NUT

- lock, 218-675 connector

4шт.

32

D51434

PLATE - bulkhead fitting

2шт.

33

D51435

TUBE - to front cylinder ports

2шт.

34

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight (5/8" J.I.C.), Included: Ref. 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5062 connector

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, rear cylinder ports

2шт.

37

REF

INSTRUCTION

CYLINDER - decking blade lift, L.H. (Parts list Figure 242)

1шт.

38

REF

INSTRUCTION

CYLINDER - decking blade lift, R.H. (Parts list Figure 242)

1шт.

Выбрано товаров: 43
