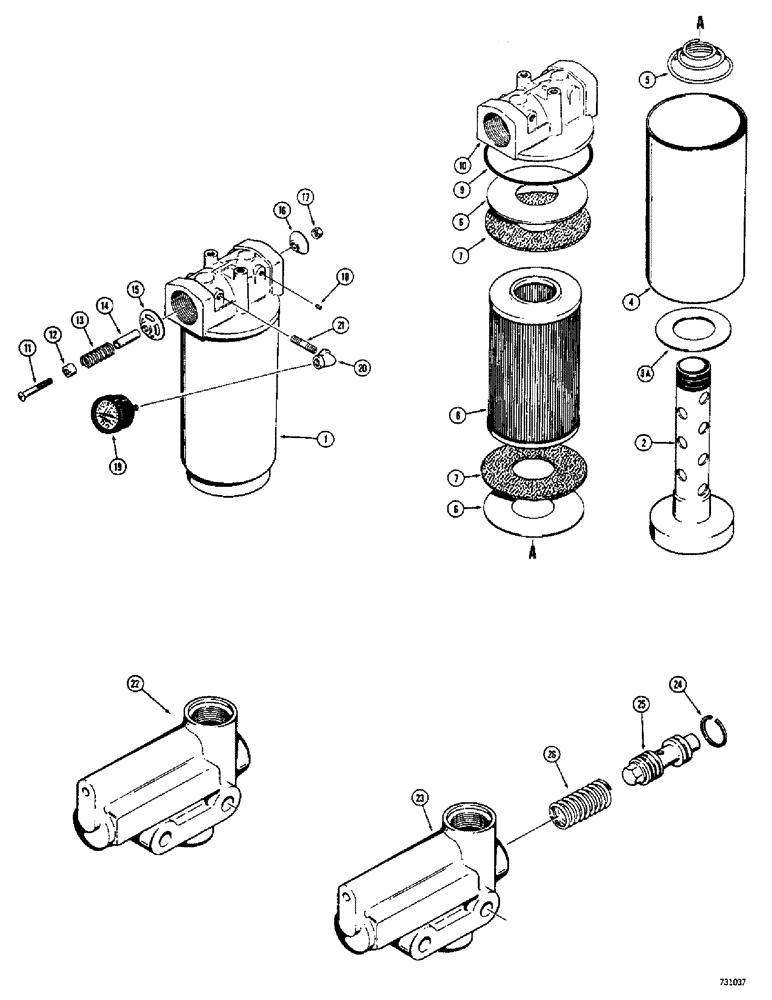

Запчасти Case 400C (178) - D45650 HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

D45650

FILTER

- hydraulic oil, Includes: Ref. 2 - 19

1шт.

2

T29796

SUPPORT

CENTER POST - filter

1шт.

4

W11815

HOUSING

- filter

1шт.

5

T29793

SPRING

- filter element

1шт.

6

T42195

WASHER

- backup

2шт.

T40153

FILTER

KIT - filter element, Includes: Ref. 7 - 9A

1шт.

7

W12214

GASKET

- element

2шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

T29789

SEALING RING,4.35" ID x 0.25" Width

SEAL - "O" ring, filter head (Used with both T37485 and W12215 filter kits)

1шт.

9a

T29795

GASKET

-, Serial Range: post-housing

1шт.

10

D46225

HEAD - filter

1шт.

11

169-86

SCREW,Fil Hd, #8 - 32 x 1 3/4"

- valve, filter bypass (#8 - 32 NC x 1-3/4")

1шт.

12

T29780

CYLINDER END CAP

CAP - valve, filter bypass

1шт.

13

T37484

SPRING

- valve, filter bypass

1шт.

14

T29783

SPACER

- valve, filter bypass

1шт.

15

T29784

GUIDE

- valve, filter bypass

1шт.

16

T29785

VALVE

- filter bypass

1шт.

17

131-552

NUT,#8-32

NUT - hex., lock (Special)

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

19

D46231

GAUGE - filter condition indicator

1шт.

20

221-374

ELBOW,90 Degree, 1/8" NPT

- female, 90 degrees

1шт.

21

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8" NPT x 1-1/2")

1шт.

22

D45168

VALVE

- hydraulic, flow control, D45168, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - flow control valve, D45168

1шт.

24

D46214

CIRCLIP

SNAP RING - spool retaining, D45168 FLOW CONTROL VALVE

1шт.

25

D46215

SPOOL

- flow control valve, D45168

1шт.

26

D46216

SPRING

- spool, D45168 FLOW CONTROL VALVE

1шт.
