Запчасти Case 400C (138) - D51206 BRAKE MASTER CYLINDER (07) - BRAKES

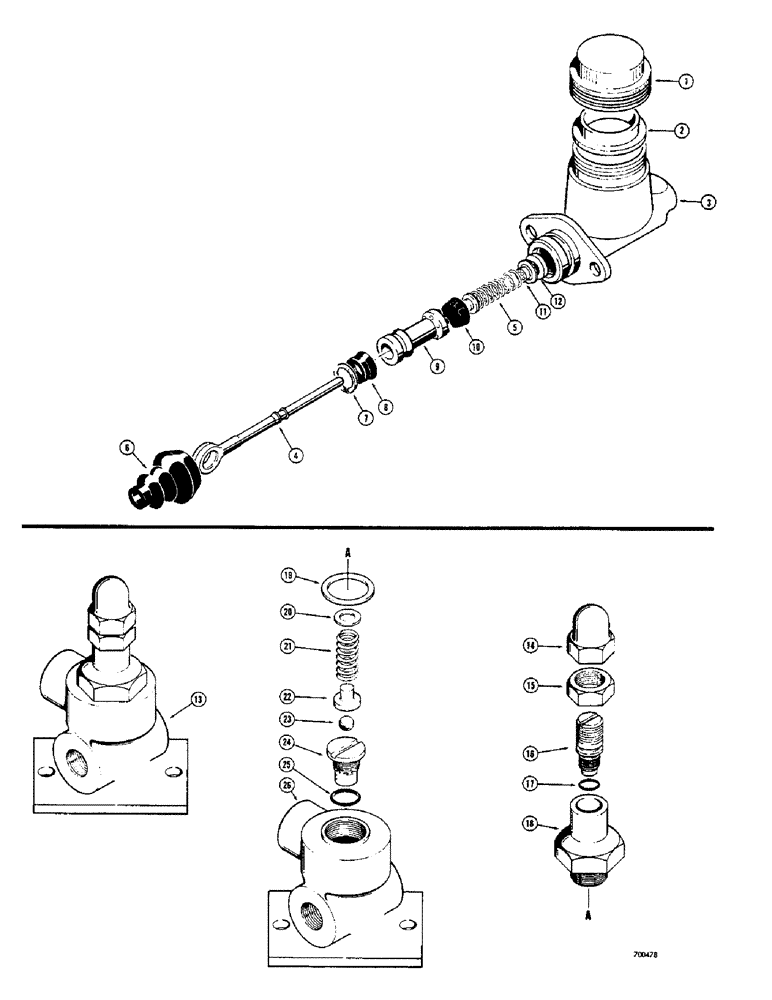

Схема запчастей Case 400C - (138) - D51206 BRAKE MASTER CYLINDER (07) - BRAKES

Артикул

Название

Примечание

Количество

D51206

MASTER CYLINDER - brake, Includes: Ref. 1 - 12

1шт.

1

D56238

TUBE

CAP - filler

1шт.

2

D46239

GASKET - cap

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

4

D51207

ROD - push, brake

1шт.

T23652

REPAIR KIT - brake master cylinder, Includes: Ref. 5 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING AND RETAINER - piston return

1шт.

6

D46235

BOOT - master cylinder

1шт.

7

A36277

SNAP RING,1.125", Int, #112

piston 1.125", Int, #112

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - secondary

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - primary

1шт.

11

NSS

NOT SOLD SEPARAT

CHECK VALVE - master cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - check valve

1шт.

13

D45165

RELIEF VALVE - brake system (1500 P.S.I.) D45165, Includes: Ref. 14 - 26

1шт.

14

129-877

NUT,Crown, 3/4"-10

- acorn, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

15

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex., jam, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

16

34110

ADJUSTMENT SCREW

- adjusting, relief valve, D45165 BRAKE SYSTEM RELIEF

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O"ring, adjusting screw, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

18

34113

BODY

CAP - hex., housing, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

19

34115

GASKET

- cap, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

20

36660

WASHER

- spring retaining, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

21

D24049

VALVE SPRING

SPRING - relief valve, D45165 BRAKE SYSTEM RELIEF

1шт.

22

CAS34120

BUSHING

GUIDE - spring, poppet, D45165 BRAKE SYSTEM RELIEF VALVE

1шт.

23

211-12

BALL,7/16 Dia

- relief valve, D45165 BRAKE SYSTEM RELIEF

1шт.

24

D28913

SEAT

- relief valve, D45165 BRAKE SYSTEM RELIEF

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - relief valve, D45165 BRAKE SYSTEM RELIEF

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, valve seat, D45165 brake system relief

1шт.

Выбрано товаров: 29
