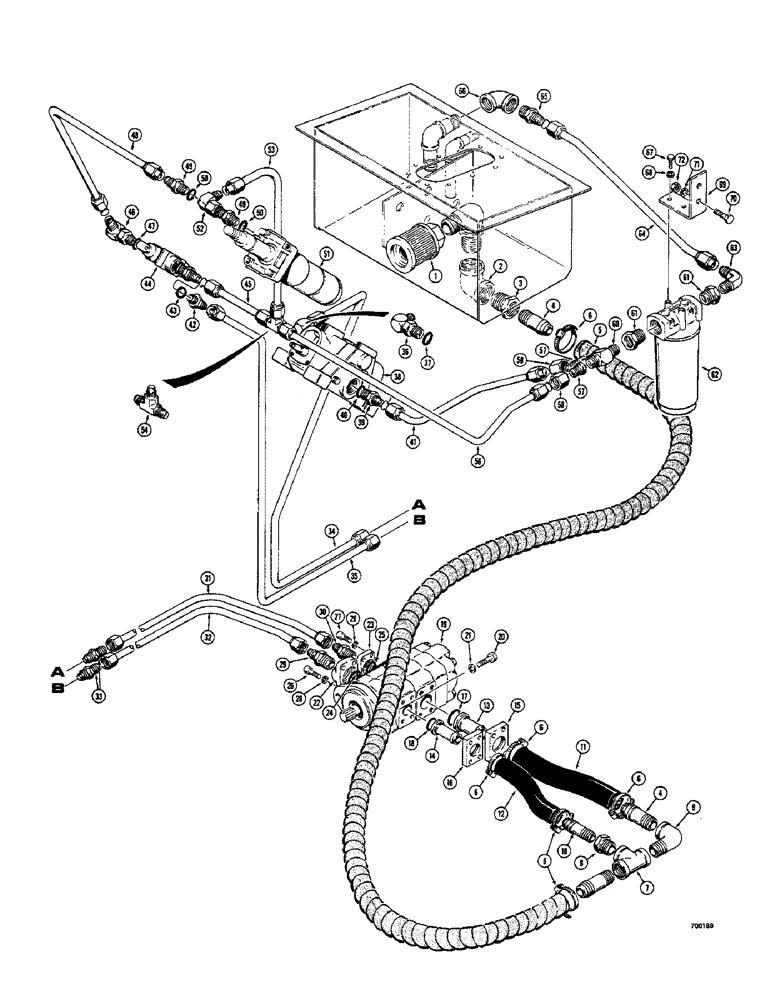

Запчасти Case 400C (170) - SYNCHROMESH TRANSMISSION, PRIMARY HYDRAULICS (06) - POWER TRAIN

1

D50969

FILTER ELEMENT - suction line, magnetic type

1шт.

2

221-397

ELBOW - female, 90 degrees (2" NPT)

1шт.

3

221-83

BUSHING

- reducing, pipe (2" NPT x 1-1/2" NPT)

1шт.

4

D51418

NIPPLE, LUBE

NIPPLE - special, 1-1/2" NPT x 1-1/2" hose I.D.

3шт.

5

D51419

HOSE - from tank, 1-1/2" I.D. x 60"

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

7

221-428

FITTING

TEE - female, 1-1/2" NPT

1шт.

8

221-76

BUSHING

- reducing, pipe (1-1/2" NPT x 1-1/4" NPT)

1шт.

9

221-418

X

ELBOW - street, 90 degrees (1-1/2" NPT)

1шт.

10

D46068

NIPPLE, LUBE

NIPPLE - special, 1-1/4" NPT x 1-1/4" I.D. hose

1шт.

11

D51420

HOSE - to pump, 1-1/2" I.D. x 8"

1шт.

12

D51421

HOSE - to pump, 1-1/4" I.D. x 8"

1шт.

13

T38489

STEM - hose, straight (1-1/2" I.D. hose)

1шт.

14

D51450

STEM - hose, straight (1-1/4" I.D. hose)

1шт.

15

D51422

FLANGE - large, 1-1/2" NPT

1шт.

16

D51423

FLANGE - small, 1-1/4" NPT

1шт.

17

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, D51422 flange

1шт.

18

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, D51423 flange

1шт.

19

L26379

PUMP

- hydraulic, dozer and steering (Parts list Figure 246)

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

D51424

FLANGE - large, 1" NPT

1шт.

23

D51425

FLANGE - small, 3/4" NPT

1шт.

24

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, D51424 flange

1шт.

25

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, D51425 flange

1шт.

26

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SHCS - 3/8" - 16 NC x 1-3/4"

4шт.

27

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

SHCS - 3/8" - 16 NC x 1-1/2"

4шт.

28

192-401

LOCK WASHER,3/8"

3/8"

8шт.

29

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - male, straight (1" NPT x 3/4" J.I.C.)

1шт.

30

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (3/4" NPT x 3/4" J.I.C.)

1шт.

31

D51426

TUBE - from pump, dozer circuit

1шт.

32

D51427

TUBE - from pump, steering circuit

1шт.

33

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - male, straight (3/4" J.I.C.)

2шт.

34

D51428

TUBE - to dozer control valve

1шт.

35

D51429

TUBE - to flow control valve

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees (3/4" J.I.C.), Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5108 elbow

1шт.

38

D50985

VALVE - hydraulic, dozer control (Parts list Figure 244)

1шт.

39

218-5082

FITTING

CONNECTOR - male, straight (3/4" J.I.C.), Includes: Ref. 40

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5082 connector

1шт.

41

D51430

TUBE - from dozer valve

1шт.

42

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight (3/4" J.I.C. x 5/8" J.I.C.), Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 Connector

1шт.

44

D45168

VALVE

- hydraulic, flow control (Parts list Figure 178)

1шт.

45

D51489

TUBE - from flow control valve

1шт.

46

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (5/8" JIC x 3/4" JIC), Includes: Ref. 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5123 Elbow

1шт.

48

D51431

TUBE - to manual steering pump

1шт.

49

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight (3/4" JIC x 1/2" JIC), Includes: Ref. 50

2шт.

51

D50872

PUMP ASSEMBLY - steering, manual (Parts list Figure 164)

1шт.

52

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Adjustable (3/4" JIC) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

53

D51432

TUBE - from manual steering pump

1шт.

54

D47187

TEE

- male, 3/4" JIC

1шт.

56

D51433

TUBE - from D47187 tee

1шт.

57

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

- tube, end (1" JIC x 3/4" JIC)

2шт.

58

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - tube, 1" JIC

2шт.

60

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

- male, run (1" JIC x 1" NPT)

1шт.

61

221-70

BUSHING - reducing, pipe (1-1/4" NPT x 1" NPT)

2шт.

62

D45650

FILTER

- hydraulic oil (Parts list Figure 178)

1шт.

63

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- male, 90 degrees (1" NPT x 1" JIC)

1шт.

64

D51436

TUBE, Serial Range: --tank

1шт.

65

218-1019

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

ADAPTER - male, straight (1" JIC x 1-1/4" NPT)

1шт.

66

221-380

ELBOW,90 Degree, 1 1/4" NPT

- female, 90 degrees (1-1/4" NPT)

1шт.

67

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

68

92-5

LOCK WASHER,5/16"

2шт.

69

D50887

BRACKET - filter

1шт.

70

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

71

92-6

LOCK WASHER,3/8"

2шт.

72

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 218-5081 adapter

1шт.
