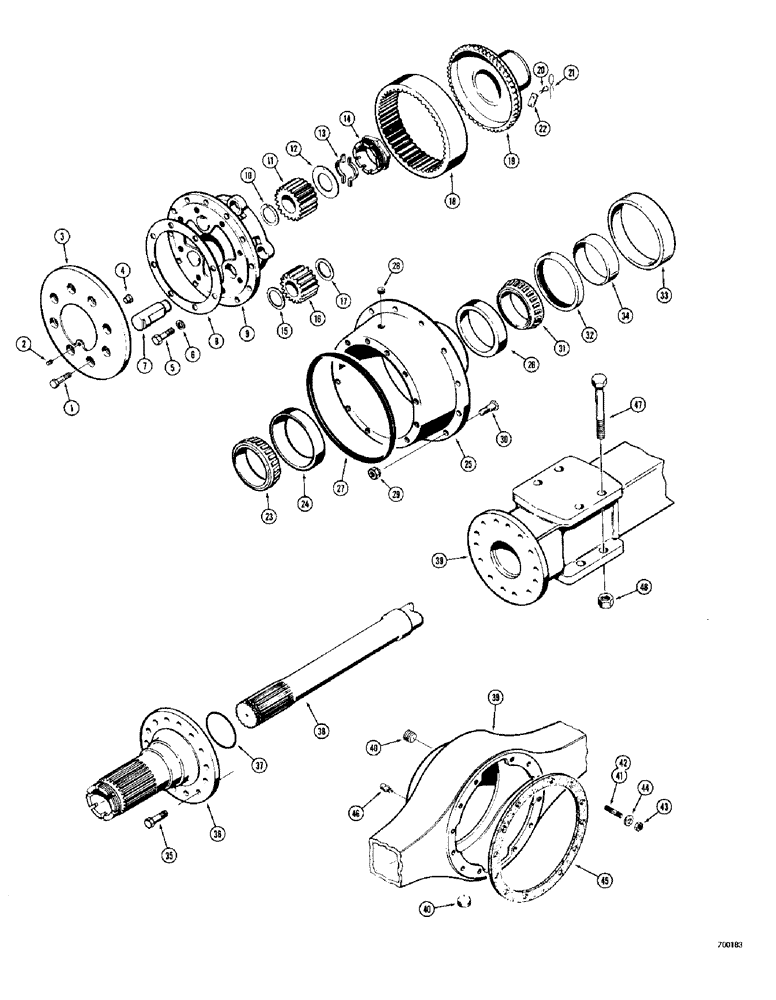

Запчасти Case 400C (160) - PR154 AXLE AND PLANETARY (06) - POWER TRAIN

D50657

AXLE ASSEMBLY - complete, PR 154 (Hi-Traction), Includes: Ref. 1 - 46

1шт.

D50658

AXLE ASSEMBLY - complete, PR 154 (No-Spin), Includes: Ref. 1 - 46

1шт.

1

L30675

SCREW

BOLT - special (Cover mounting)

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square socket head (1/4" NPT)

2шт.

L34025

COVER ASSY

COVER ASSEMBLY - planetary, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

4

A12980

BUTTON

- thrust

1шт.

5

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-5/8"

32шт.

6

D47366

WASHER

- special hardened (1/2")

32шт.

7

A19885

SHAFT

- planetary pinion gear

6шт.

8

A14971

GASKET

- planetary cover

2шт.

9

A14979

U-JOINT SPIDER

SPIDER - planetary

2шт.

10

A14969

RING, SNAP

SNAP RING - sun gear

2шт.

11

A14976

GEAR

- sun, planetary

2шт.

12

A14966

WASHER

- sun gear

2шт.

13

A14970

LOCK ASSY

LOCK - bearing nut

4шт.

14

A14965

NUT

- hub bearing retaining

2шт.

15

A14967

WASHER

- thrust, pinion (Outer)

6шт.

16

A14977

GEAR

- pinion, planetary

6шт.

17

A19886

WASHER

- thrust, pinion (Inner)

6шт.

18

A14975

GEAR

- ring, planetary

2шт.

19

A14978

HUB

- planetary ring gear

2шт.

20

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

- special

16шт.

21

391-614

LOCK WIRE - #16 x 6"

8шт.

22

A14964

LOCK ASSY

LOCK PLATE - hub

8шт.

23

A14960

BEARING

CONE - bearing, tapered roller type (Outer)

2шт.

D51465

HUB ASSEMBLY - rim, Includes: Ref. 24 - 26

2шт.

24

A14961

BEARING CUP

CUP - bearing, tapered roller type (Outer)

1шт.

25

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

26

A14985

BEARING CUP

CUP - bearing, tapered roller type (Inner)

1шт.

27

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

SEAL - "O"ring, spider to hub

2шт.

28

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, drain (3/4" NPT)

2шт.

29

A12522

WHEEL NUT

- hex., rim mounting

24шт.

30

A13112

STUD

STUD - wheel, Serial Range: rim-hub

24шт.

31

A14984

ROLLER BEARING

CONE - bearing, tapered roller type

2шт.

32

D47371

SEAL

- oil, hub bearing

2шт.

33

D51466

GUARD - oil seal

2шт.

34

D51467

SLEEVE

- oil seal

2шт.

35

113-734

X

HHCS - 3/4" - 10 NC x 2"

28шт.

36

D51468

SPINDLE - wheel

2шт.

37

A15026

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL - "O"ring, spindle

2шт.

38

D51469

SHAFT - axle (Long)

1шт.

D51470

SHAFT - axle (Short)

1шт.

D51459

HOUSING ASSEMBLY - axle, Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

40

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe (1-1/4" NPT)

2шт.

41

A13130

STUD

- carrier to axle housing (1/2" - 20 NF x 2-5/8")

10шт.

42

L30673

STUD

- carrier to axle housing (1/2" - 20 NF x 3")

4шт.

43

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex., lock (1/2" - 20 NF)

14шт.

44

D47366

WASHER

- special

14шт.

45

A12943

GASKET

- carrier to axle housing

1шт.

46

A12928

BREATHER

- axle housing

1шт.

47

13-14136

CAPSCREW,Hex, 7/8" - 9 x 8 1/2", Gr 5

HHCS - 7/8" - 9 NC x 8-1/2"

8шт.

48

131-18

TUBE NUT,7/8"-9, GB

NUT - hex., lock (7/8" - 9 NC)

8шт.
