Запчасти Case 400C (156) - PR154 DIFFERENTIAL (06) - POWER TRAIN

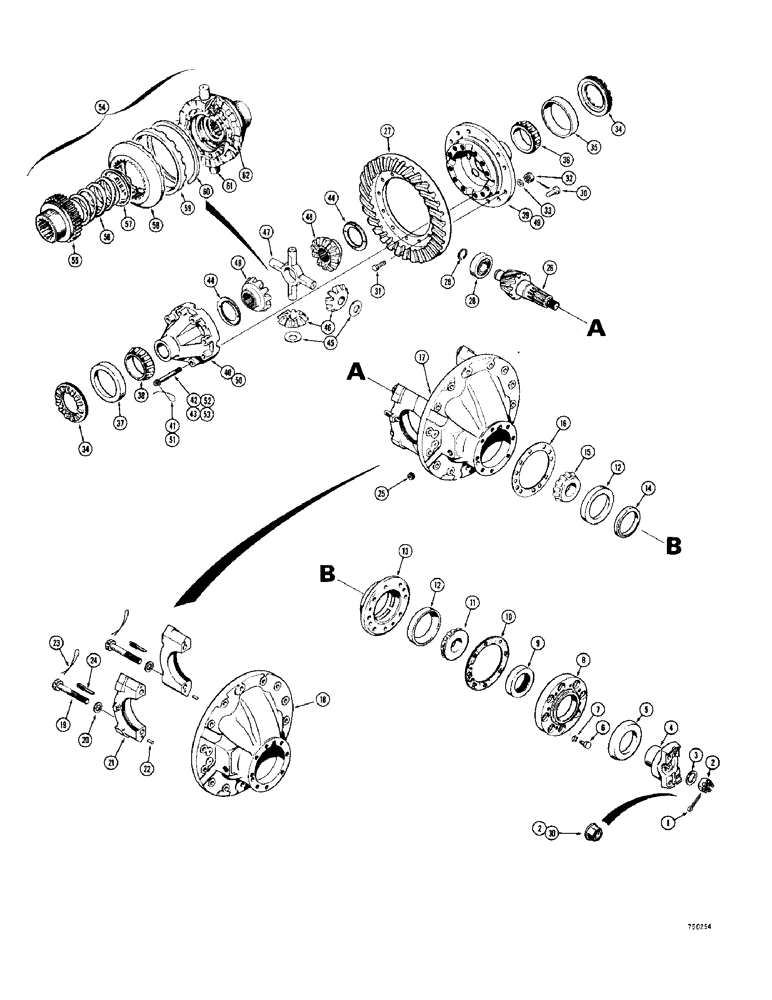

Схема запчастей Case 400C - (156) - PR154 DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D50657

AXLE ASSEMBLY - complete, PR 154 (Hi-Traction), Includes: Ref. 1 - 35

1шт.

D50658

AXLE ASSEMBLY - complete, PR 154 (No-Spin), Includes: Ref. 1 - 35

1шт.

2

F19657

NUT

- hex., special slotted (Yoke mounting) When stock is exhausted, order L35921 nut for service

1шт.

1

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , If used 1/8" x 2"

1шт.

2

L35921

FLANGE NUT

- hex., special self-locking (Yoke mounting) Included in L36022 gear set kit, ref. no. 30

1шт.

3

A15441

WASHER

- yoke retaining

1шт.

D51462

YOKE ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A25127

SLINGER

- oil

1шт.

6

113-315

HHCS - 7/16" - 14 NC x 1-5/8"

8шт.

7

92-7

LOCK WASHER,7/16"

8шт.

8

A25155

COVER

- pinion shaft

1шт.

9

A25153

OIL SEAL

- oil

1шт.

10

A12955

GASKET

- cover

1шт.

11

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, cage (Outer)

1шт.

L30030

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 12 and 13

1шт.

12

A9840

BEARING CUP

CUP - bearing

2шт.

13

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft bearing

1шт.

14

A25156

SPACER

- bearing .187" thick

1шт.

14

A25157

SPACER - bearing .188" thick

1шт.

14

A25158

SPACER - bearing .189" thick

1шт.

14

A25159

SPACER

- bearing .190" thick

1шт.

14

A25160

SPACER - bearing .191" thick

1шт.

14

A25161

SPACER - bearing .192" thick

1шт.

14

A25162

SPACER

- bearing .198" thick

1шт.

14

A25163

SPACER

- bearing .204" thick

1шт.

14

A25164

SPACER

- bearing .210" thick

1шт.

14

A25165

SPACER - bearing .216" thick

1шт.

14

A12963

SPACER

- bearing .222" thick

1шт.

15

L30032

ROLLER BEARING

CONE - bearing, cage (Inner)

1шт.

16

A12958

SHIM,.003" Thk

Cage .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

Cage .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

Cage .010" Thk

1шт.

17

L30382

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

19

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - special

4шт.

20

A16783

WASHER

- bolt

4шт.

21

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - differential, Includes: Ref. 22

2шт.

22

A15443

DOWEL

- cap

2шт.

23

321-620

DECAL

LOCK WIRE - #16 X 12" long (Cut as required)

1шт.

24

L30029

PIN

- lock, bearing adjustment nut (When lock pin is removed for repairs, replace with new pin)

2шт.

25

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

L36022

PACKAGE, REPAIR

GEAR SET - repair kit, Includes: Ref. 26 - 30

1шт.

L36023

GEAR SET - pinion and ring, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

28

L30387

ROLLER BEARING

BEARING - spigot

1шт.

29

A15442

LOCK

SNAP RING - lock

1шт.

30

L35921

FLANGE NUT

- flange retaining

1шт.

31

L34059

BOLT

- ring gear mounting

12шт.

32

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., lock (1/2" - 13 NC)

12шт.

33

L30737

WASHER

- special (1/2")

12шт.

34

A25225

RING

NUT - retaining, pinion bearing

2шт.

35

ST968

BEARING CUP,3" ID x 1.7875"

CUP - bearing, differential (Flange half side)

1шт.

36

A25224

ROLLER BEARING,3" ID x 1.2205"

CONE - bearing, differential (Flange half side), HI-TRACTION ONLY

1шт.

37

A25222

BEARING CUP

CUP - bearing, differential (Plain half side), HI-TRACTION ONLY

1шт.

38

A50197

ROLLER BEARING,3" ID x 0.906"

CONE - bearing, differential (Plain half side), HI-TRACTION ONLY

1шт.

L30635

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - HI-TRACTION ONLY, Includes: Ref. 39 - 48

1шт.

A25128

CASE

ASSEMBLY - differential, HI-TRACTION ONLY, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

CASE - flange half, HI-TRACTION ONLY

1шт.

40

NSS

NOT SOLD SEPARAT

CASE - plain half, HI-TRACTION ONLY

1шт.

41

391-627

ELECTRICAL WIRE

LOCK WIRE - #16 x 22" (Cut as required), HI-TRACTION ONLY

1шт.

42

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - special, differential case (Short), HI-TRACTION ONLY

8шт.

43

A25145

BOLT

- special, differential case (Long) , HI-TRACTION ONLY

8шт.

44

A25142

WASHER

- thrust, side gear, HI-TRACTION DIFFERENTIAL ONLY

2шт.

45

A25140

WASHER

- thrust, pinion, HI-TRACTION DIFFERENTIAL ONLY

4шт.

46

A25131

PINION

GEAR - pinion, HI-TRACTION DIFFERENTIAL ONLY

4шт.

47

A25143

SPIDER ASSY.

SPIDER - differential, HI-TRACTION ONLY

1шт.

48

A25141

GEAR

- side, HI-TRACTION DIFFERENTIAL ONLY

2шт.

D51463

DIFFERENTIAL ASSY

DIFFERENTIAL CASE AND GEAR ASSEMBLY - No-Spin, Includes: Ref. 49 - 62

1шт.

A25128

CASE

ASSEMBLY - differential, Includes: Ref. 49 and 50

1шт.

49

NSS

NOT SOLD SEPARAT

CASE - flange half, NO-SPIN DIFFERENTIAL ONLY

1шт.

50

NSS

NOT SOLD SEPARAT

CASE - plain half, NO-SPIN DIFFERENTIAL ONLY

1шт.

51

391-627

ELECTRICAL WIRE

LOCK WIRE - #16 x 22" (Cut as required) If used NO-SPIN DIFFERENTIAL ONLY

1шт.

52

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - special, differential case (Short) Used with lock-wire (When stock is exhausted, order L34060 bolt for service), NO-SPIN ONLY

8шт.

52

L34060

SCREW,Flg, 1/2" - 13 x 2.50", Gr 8

BOLT - special, differential case (Short) Used without lockwire, NO-SPIN ONLY

8шт.

53

A25145

BOLT

- special, differential case (Long) Used with lockwire (When stock is exhausted, order L34061 bolt for service), NO-SPIN ONLY

8шт.

53

L34061

BOLT

BOLT - special, differential case (Long) Used without lockwire, NO-SPIN ONLY

8шт.

54

D51464

SPINDLE

NO-SPIN ASSEMBLY - differential, Includes: Ref. 55 - 62

1шт.

55

D51481

GEAR - differential, side, NO-SPIN ONLY

2шт.

56

D51482

SPRING - differential, NO-SPIN ONLY

2шт.

57

D51483

RETAINER - spring, NO-SPIN DIFFERENTIAL ONLY

2шт.

58

D51484

CLUTCH

- driven (When stock is exhausted, D66318 clutch driven assembly will be supplied), NO-SPIN DIFFERENTIAL ONLY

2шт.

59

D51485

RING

- holdout (When stock is exhausted D66318 clutch driven assembly will be supplied), NO-SPIN DIFFERENTIAL ONLY

2шт.

D66318

CLUTCH

DRIVEN ASSEMBLY, NO-SPIN DIFFERENTIAL ONLY

2шт.

60

NSS

NOT SOLD SEPARAT

SNAP RING - differential, NO-SPIN ONLY

1шт.

61

NSS

NOT SOLD SEPARAT

SPIDER - differential, NO-SPIN ONLY

1шт.

62

NSS

NOT SOLD SEPARAT

CAM - differential, NO-SPIN ONLY

1шт.

Выбрано товаров: 88
