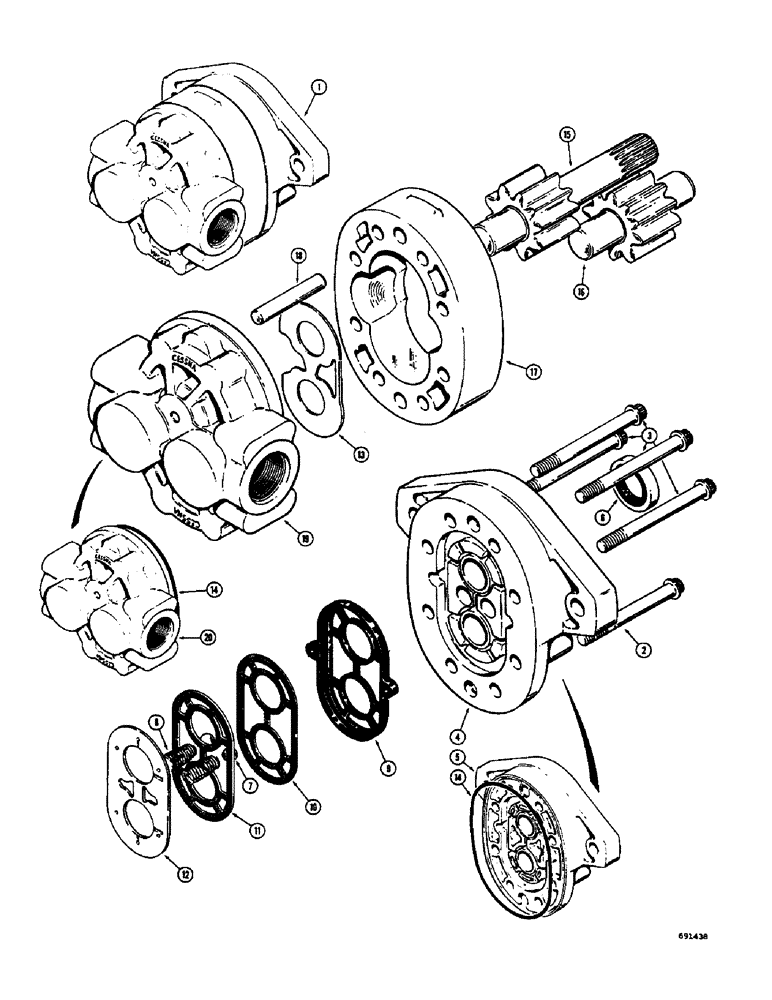

Запчасти Case 400 (126) - D41390 PUMP ASSEMBLY, OPTIONAL ON TRACTOR SERIAL NUMBER 6517 AND AFTER (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

- hydraulic, 26 G.P.M. at 2500 R.P.M. at 1800 P.S.I., Includes: Ref. 2 - 20

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured Hydraulic Motor

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Hydraulic Motor

1шт.

1

87644746R

REMAN-HYD PUMP

400 Case/Beloit Skid King Wheel Loader, ASN 6517

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - drive shaft end (When stock is exhausted, order (1) D48879 cover and (1) D48887 seal for service)

1шт.

5

D48879

COVER

- driveshaft end

1шт.

D41318

KIT

- pump rebuild (When stock is exhausted, order (1) D49374 kit for service), Includes: Ref. 6 - 14

1шт.

D49374

SERVICE KIT

KIT - pump rebuild, Includes: Ref. 6 - 14

1шт.

6

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

7

D31404

BALL

- steel (13/32" dia.)

2шт.

8

D31403

SPRING

- ball retaining

2шт.

9

D31397

SEAL

- diaphragm

1шт.

10

A41244

GASKET

- backup

1шт.

11

NLS

NO LONGER SERVICED

- protector (When stock is exhausted, order (1) A42305 gasket for service)

1шт.

A42305

GASKET

- protector

1шт.

12

D41321

DIAPHRAGM

- pump

1шт.

13

D41322

PLATE

- thrust

1шт.

14

D48887

O-RING

SEAL - "o" ring, cover seal for D48879 and D48883 covers (Parts of D49374 kit only)

2шт.

D41421

GEAR-SET

GEAR SET - drive and driven (When stock is exhausted, order (1) D49380 gear set for service)

1шт.

D49380

GEAR

SET - drive and driven (When stock is exhausted, order D52929 gears for service)

1шт.

D52929

GEAR

SET - drive and driven, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVE SHAFT AND GEAR - pump

1шт.

16

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

17

D49371

HOUSING

- gear

1шт.

18

D49373

DOWEL

- pump housing

2шт.

19

D31407

PLATE ASSY.

COVER - part end (When stock is exhausted, order (1) D48883 cover and (1) D48887 seal for service)

1шт.

20

D48883

COVER

- port end

1шт.
