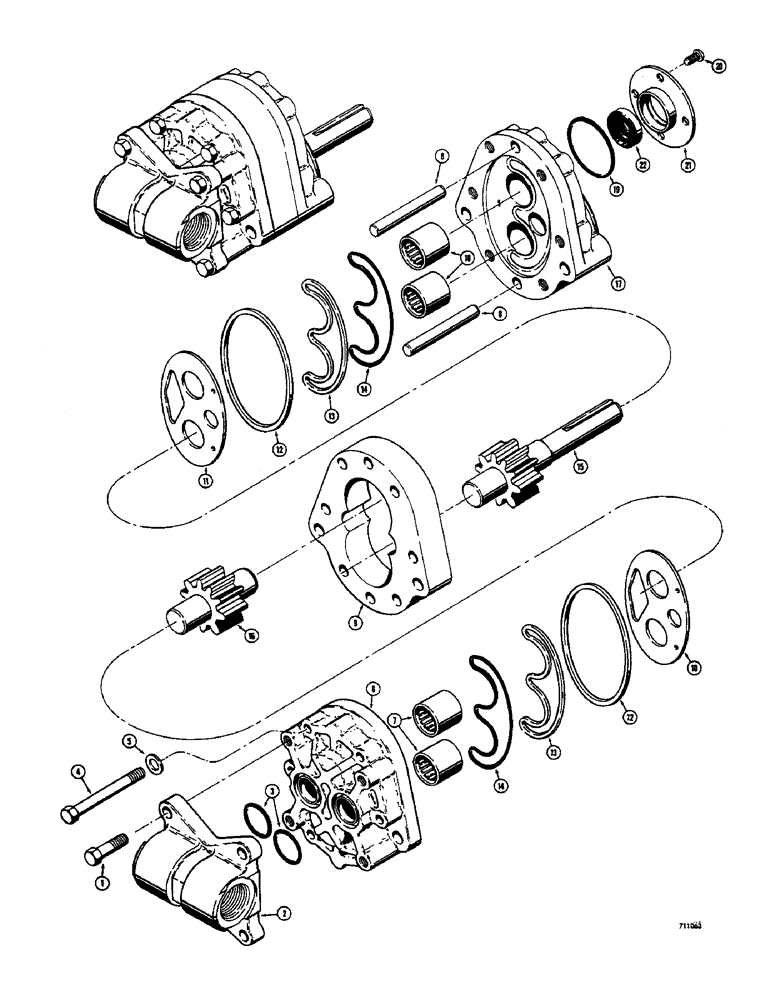

Запчасти Case 400 (125A) - D54170 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

D54170

PUMP - hydraulic, gear type, Includes: Ref. 1 - 22

1шт.

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

D54164

MANIFOLD - pump, inlet and outer ports

1шт.

3

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

SEAL - "o" ring, manifold to pump body

2шт.

4

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

6шт.

5

A32395

WASHER

- special, pump cover

6шт.

D54172

COVER ASSEMBLY - pump, manifold end, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - pump, manifold end

1шт.

7

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle type

2шт.

8

T39077

PIN

- dowel

2шт.

9

D54176

PLATE - gear

1шт.

10

T39089

LARGE PLATE

PLATE - wear, manifold end

1шт.

11

T39090

PLATE ASSY.

PLATE - wear, shaft end

1шт.

12

D54169

SEALING RING

RING - sealing, wear plate

2шт.

13

D54168

SEAL

SEAL - load

2шт.

14

D54167

SEAL

SEAL - pre-load

2шт.

D54173

GEAR SET

- matched, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR AND DRIVE SHAFT - drive

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - driven

1шт.

D54171

BODY ASSEMBLY - pump, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

18

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle type

2шт.

19

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL "o" ring, retainer to body

1шт.

20

187-1049

SCREW - machine, recessed head (#10 - 24 NC x 3/8")

4шт.

D54166

RETAINER AND SEAL ASSEMBLY - drive shaft, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - drive shaft seal

1шт.

22

R22149

SEAL

- drive shaft

1шт.
