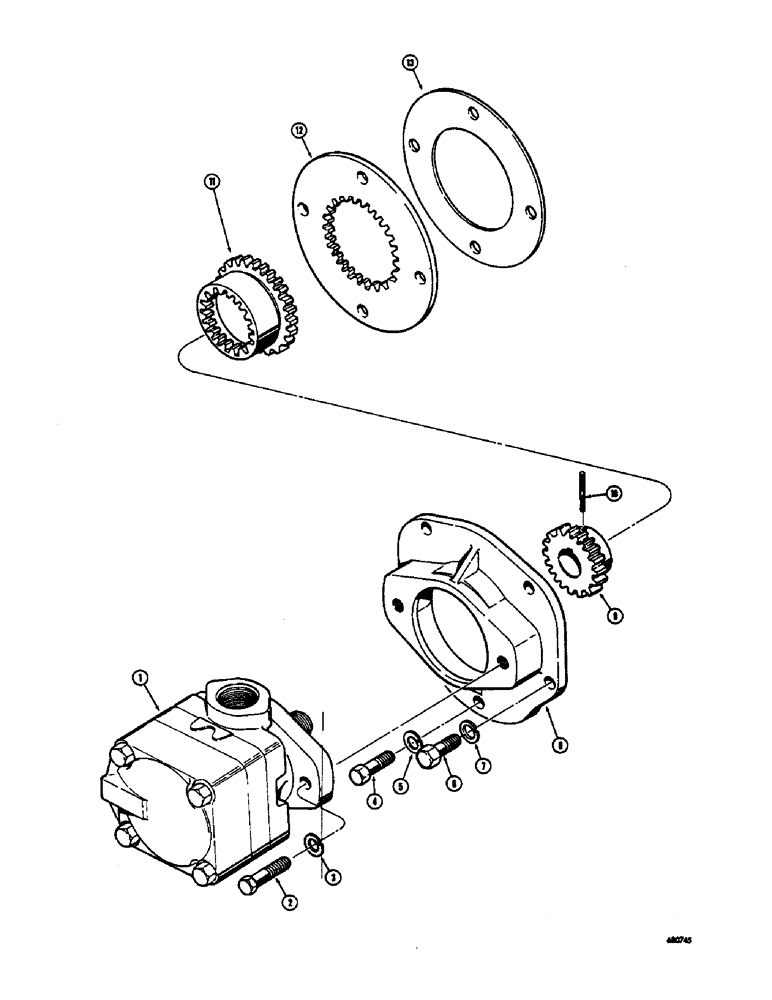

Запчасти Case 400 (120) - PUMP DRIVE PARTS (07) - HYDRAULIC SYSTEM

1

D45177

PUMP - hydraulic, vane type (19 G.P.M. at 2500 R.P.M. at 1500 P.S.I.) Used before tractor serial no. 6517, Parts list Figure 122

1шт.

D45659

PUMP - hydraulic, gear type (20 G.P.M. at 2500 R.P.M. at 1500 P.S.I.) Used on tractor serial no. 6517 and after (Parts list Figure 124) Not illustrated

1шт.

D54170

PUMP - hydraulic, gear type (Parts list Figure 125A) Used on tractor ser. no. and after (Not illustrated)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

5

92-7

LOCK WASHER,7/16"

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

D45693

ADAPTER - pump mounting

1шт.

9

D45695

SPROCKET - pump drive

1шт.

10

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

11

D45696

COUPLING - pump drive

1шт.

12

D45698

DISC - pump drive

1шт.

13

D45697

SPACER - disc

1шт.
