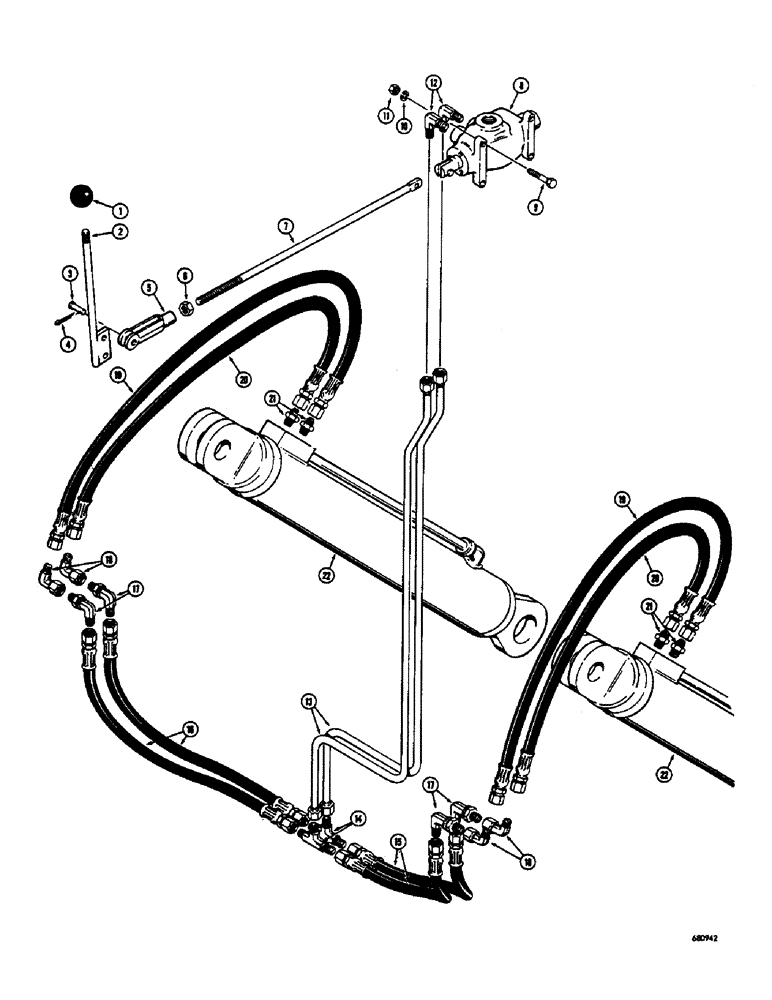

Запчасти Case 400 (114) - DECKING BLADE CONTROL, LEVER AND LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

A23885

KNOB

- decking blade control lever

1шт.

2

D47389

LEVER - decking blade control

1шт.

3

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - lever and yoke

2шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

5

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

1шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

7

D47390

ROD - valve control

1шт.

8

D45649

VALVE - hydraulic, decking blade control, Parts list Figure 118

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees

2шт.

13

D47395

TUBE - valve to decking blade lift cylinders, at valve

2шт.

14

218-595

TEE,7/8"-14, 37 Degree

- tube

2шт.

15

D28524

HOSE

- valve to R.H. lift cylinder, intermediate (21" long)

2шт.

16

D45854

HOSE - valve to L.H. lift cylinder, intermediate (31" long)

2шт.

17

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - bulkhead, 90 degrees

4шт.

18

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

4шт.

19

D33344

HOSE

- valve to lift cylinder, rod end (At cylinder) 37-1/2" long

2шт.

20

D45854

HOSE - valve to lift cylinder, closed end (At cylinder) 31" long

2шт.

21

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

4шт.

22

D45641

CYLINDER - hydraulic, decking blade lift (4" I.D. x 16" stroke), Parts list Figure 116

2шт.
