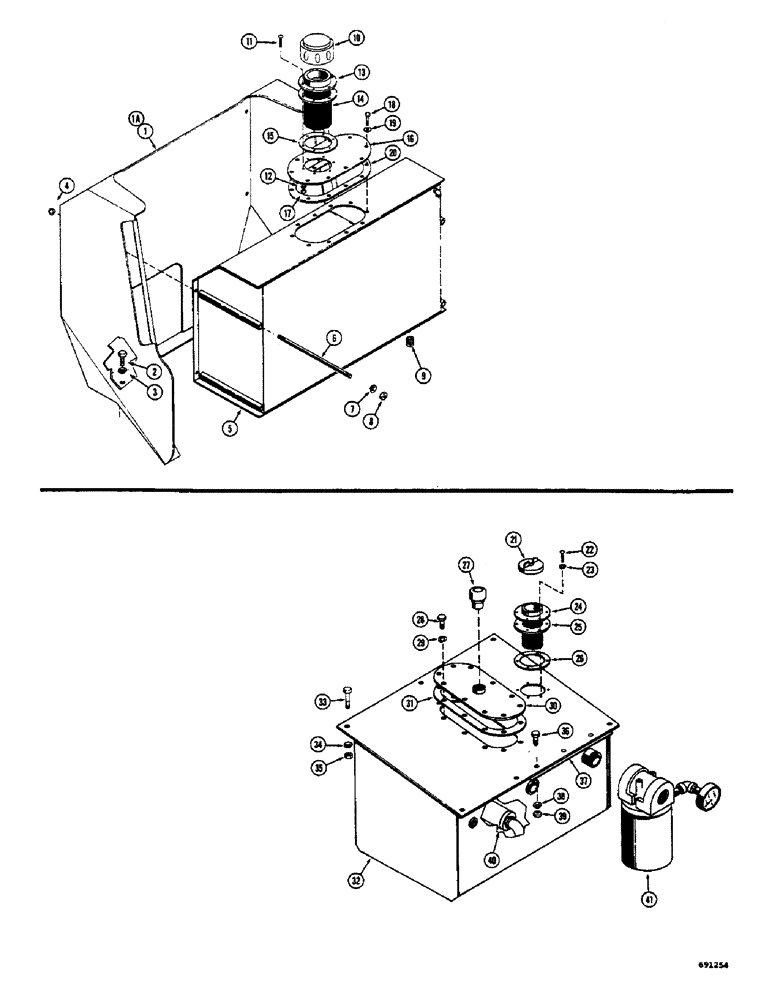

Запчасти Case 400 (090) - FUEL AND HYDRAULIC TANKS, FUEL TANK (07) - HYDRAULIC SYSTEM

1

D47411

SHIELD - fuel tank (Used before tractor serial no. 6605)

1шт.

1a

48901

DRIVEN SPROCKET

SHIELD - fuel tank (Used on tractor serial no. 6605 and after)

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

129-544

NUT,Crown, 1/2"-13

- acorn (1/2" - 13 NC)

4шт.

5

D47412

TANK - fuel

1шт.

6

D47414

ROD - fuel tank mounting

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

9

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - drain, square socket head (1/2" NPT)

1шт.

10

D45152

CAP - filler, fuel tank

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine, round head (#10 - 24 NC x 3/4")

6шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

13

D45993

FLANGE - filler cap

1шт.

14

D45838

SCREEN - filler neck

1шт.

15

D45811

GASKET -, Serial Range: screen-cover

1шт.

16

D47413

COVER - fuel tank

1шт.

17

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

6шт.

18

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

10шт.

19

195-1014

WASHER

- brass, flat (1/4")

10шт.

20

D45808

GASKET fuel tank cover

1шт.

21

D47580

CAP - filler, hydraulic tank

1шт.

22

173-206

X

SCREW - machine, round head (#10 - 24 NC x 1") hydraulic tank

6шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, , Hydraulic tank #10

6шт.

24

D45993

FLANGE - filler cap hydraulic tank

1шт.

25

D45838

SCREEN - filler neck hydraulic tank

1шт.

26

D45811

GASKET - screen to hydraulic tank

1шт.

27

A9238

BREATHER

- hydraulic tank

1шт.

28

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5, Hydraulic tank

10шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Hydraulic tank 1/4"

10шт.

30

D47578

COVER

- hydraulic tank

1шт.

31

D45808

GASKET - hydraulic tank cover

1шт.

32

D47577

TANK - hydraulic oil

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic tank Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

34

92-6

LOCK WASHER,3/8"

hydraulic tank 3/8"

6шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) hydraulic tank

6шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Hydraulic tank Hex, 1/4"-20 x 1", G5

3шт.

37

D47581

PLATE - hydraulic tank retaining

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Hydraulic tank 1/4"

3шт.

39

25-104

NUT,1/4"-20, G5

Hydraulic tank 1/4"-20, G5

3шт.

40

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type hydraulic tank

1шт.

41

D45650

FILTER

- hydraulic oil (Parts list figure 78) Does not include pipe nipple and elbow as part of assembly hydraulic tank

1шт.
