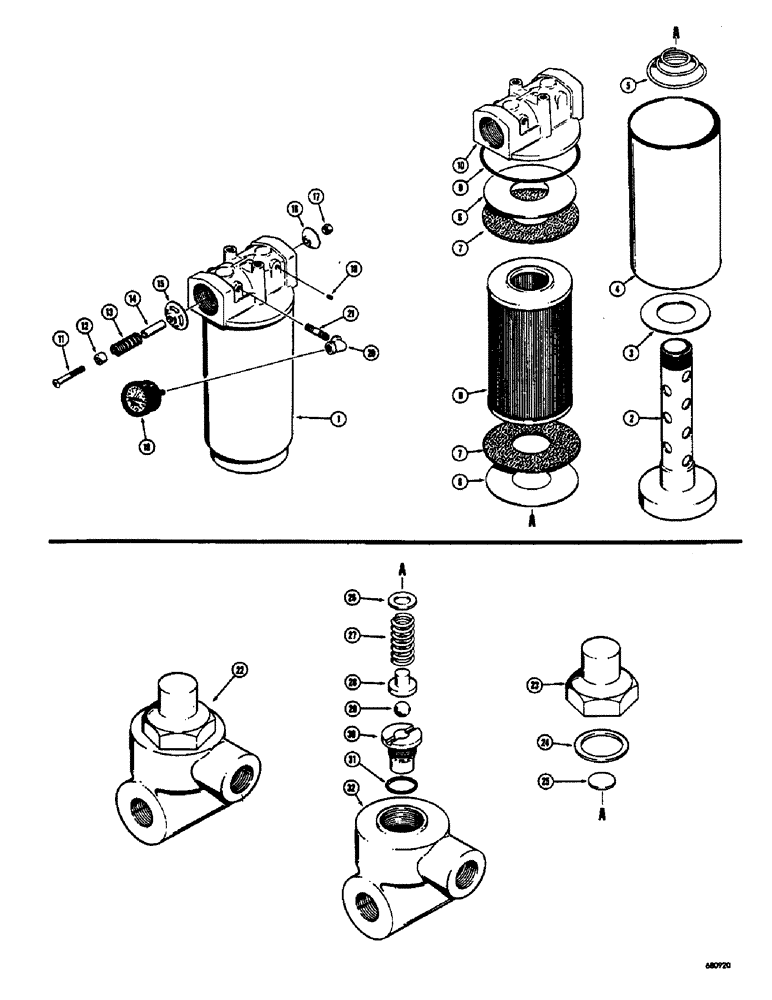

Запчасти Case 400 (078) - D45650 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

1

D45650

FILTER

- hydraulic oil, Includes: Ref. 2 - 19

1шт.

2

T29796

SUPPORT

CENTER POST - filter

1шт.

3

T29795

GASKET

-, Serial Range: post-housing

1шт.

4

W11815

HOUSING

- filter

1шт.

5

T29793

SPRING

- filter element

1шт.

6

T42195

WASHER

- backup

2шт.

T40153

FILTER

KIT - filter element, Includes: Ref. 7 - 9

1шт.

7

W12214

GASKET

- element

2шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

T29789

SEALING RING,4.35" ID x 0.25" Width

SEAL - "o" ring, filter head

1шт.

10

D46225

HEAD - filter

1шт.

11

169-86

SCREW,Fil Hd, #8 - 32 x 1 3/4"

- valve, filter bypass

1шт.

12

T29780

CYLINDER END CAP

CAP - valve, filter bypass

1шт.

13

J1037492

PLASTIC PLUG

- valve, filter bypass

1шт.

14

T29783

SPACER

- valve, filter bypass

1шт.

15

T29784

GUIDE

- valve, filter bypass

1шт.

16

T29785

VALVE

- filter bypass

1шт.

17

T29786

X

NUT - hex., lock (Special)

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket (1/8" NPT)

1шт.

19

D46231

GAUGE - filter condition indicator

1шт.

20

221-374

ELBOW,90 Degree, 1/8" NPT

- female, 90 degrees

1шт.

21

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8" NPT x 1-1/2")

1шт.

22

D45648

RELIEF VALVE - hydraulic system relief (1800 P.S.I.), Includes: Ref. 23 - 32

1шт.

23

D25846

BODY

- relief valve D45648 hydraulic system

1шт.

24

34115

GASKET

- body D45648 hydraulic system relief valve

1шт.

25

D25844

SHIM,.0097" Thk

Pressure adjusting, D45648 hydraulic system relief valve .0097" Thk

1шт.

26

36660

WASHER

- spring retaining D45648 hydraulic system relief valve

1шт.

27

D46223

SPRING

- relief valve D45648 hydraulic system

1шт.

28

R22172

GUIDE - spring, poppet D45648 hydraulic system relief valve

1шт.

29

211-12

BALL,7/16 Dia

- relief valve D45648 hydraulic system

1шт.

30

D28913

SEAT

- relief valve D45648 hydraulic system

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - relief valve D45648 hydraulic system relief

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "o" ring, valve seat D45648 hydraulic system relief

1шт.
