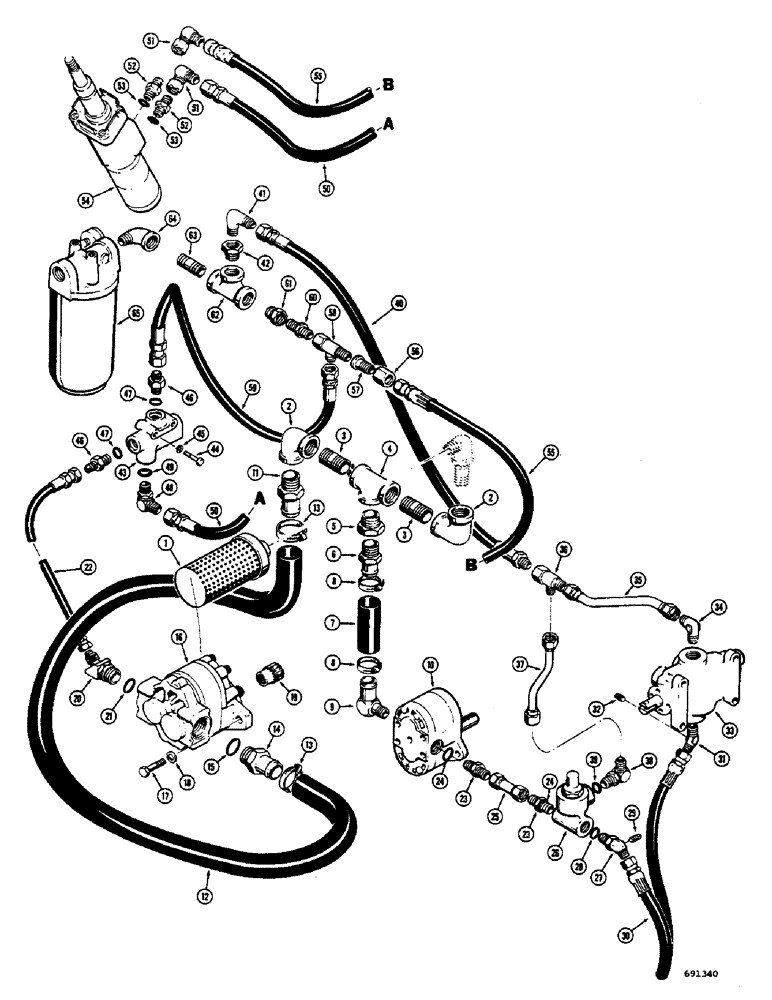

Запчасти Case 400 (074) - OPTIONAL PRIMARY HYDRAULICS, USED ON TRACTOR SERIAL NUMBER 6517 AND AFTER (07) - HYDRAULIC SYSTEM

1

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type

1шт.

2

221-396

FITTING

ELBOW - female, 90 degrees

2шт.

3

221-283

SPARE PART

NIPPLE - pipe, close

2шт.

4

221-428

FITTING

TEE - pipe, female

1шт.

5

221-76

BUSHING

- reducing, pipe

1шт.

6

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM - hose, straight

1шт.

7

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- hydraulic tank to D45659 pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

9

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees

1шт.

10

REF

INSTRUCTION

PUMP - hydraulic, gear type, See Figures 124 and 125A for proper pump

1шт.

11

217-158

FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF

STEM - hose, straight

1шт.

12

D49456

HOSE - hydraulic tank to D41390 pump

1шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

14

217-176

FITTING,1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

STEM - hose, straight, Includes: Ref. 15

1шт.

15

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

16

D41390

PUMP

- hydraulic, gear type (26 G.P.M. at 2500 R.P.M. at 1800 P.S.I.), Parts list Figure 126

1шт.

16

DR41390

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

16

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Hydraulic Pump

1шт.

16

87644746R

REMAN-HYD PUMP

400 Case/Beloit Skid King Wheel Loader, ASN 6517

1шт.

16

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D47492

COUPLING, BREAK AWAY

COUPLING - pump drive

1шт.

20

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 21

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

22

D32044

HOSE - D41390 pump to flow control valve (60" long)

1шт.

23

218-5082

FITTING

CONNECTOR - male, straight, Includes: Ref. 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

25

D45705

TUBE - pump to relief valve

1шт.

26

D45648

VALVE - relief, hydraulic, Parts list Figure 78

1шт.

27

D47398

ELBOW - adjustable, 45 degrees, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

29

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

30

D48432

HOSE

- relief valve to dozer control valve (27-1/2" long)

1шт.

31

D47396

ELBOW - male, 45 degrees

1шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

33

D45649

VALVE - hydraulic, dozer control, Parts list Figure 118

1шт.

34

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

35

D49458

TUBE - dozer control valve return

1шт.

36

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

37

D47392

TUBE - relief valve return

1шт.

38

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

40

R22173

HOSE

- dozer system return

1шт.

41

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

42

221-69

BUSHING

- reducing, pipe

1шт.

43

D45168

VALVE

- hydraulic, flow control, Parts list Figure 68

1шт.

44

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

45

92-5

LOCK WASHER,5/16"

2шт.

46

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 47

2шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

48

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- swivel, 90 degrees, Incl. Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

50

D49455

HOSE - flow control valve to steering pump

1шт.

51

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

52

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 53 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

54

D45167

PUMP ASSEMBLY - steering manual, Parts list Figure 64

1шт.

55

D47401

HOSE - steering pump return (53" long)

1шт.

56

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - tube

1шт.

57

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- tube end

1шт.

58

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

59

D42969

HOSE

- flow control valve return

1шт.

60

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

61

221-69

BUSHING

- reducing, pipe

1шт.

62

221-427

FITTING

TEE - pipe, female

1шт.

63

221-260

HYD CONNECTOR

NIPPLE - pipe, close

1шт.

64

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- street, 90 degrees

1шт.

65

D45650

FILTER

- hydraulic oil, Parts list Figure 78

1шт.
