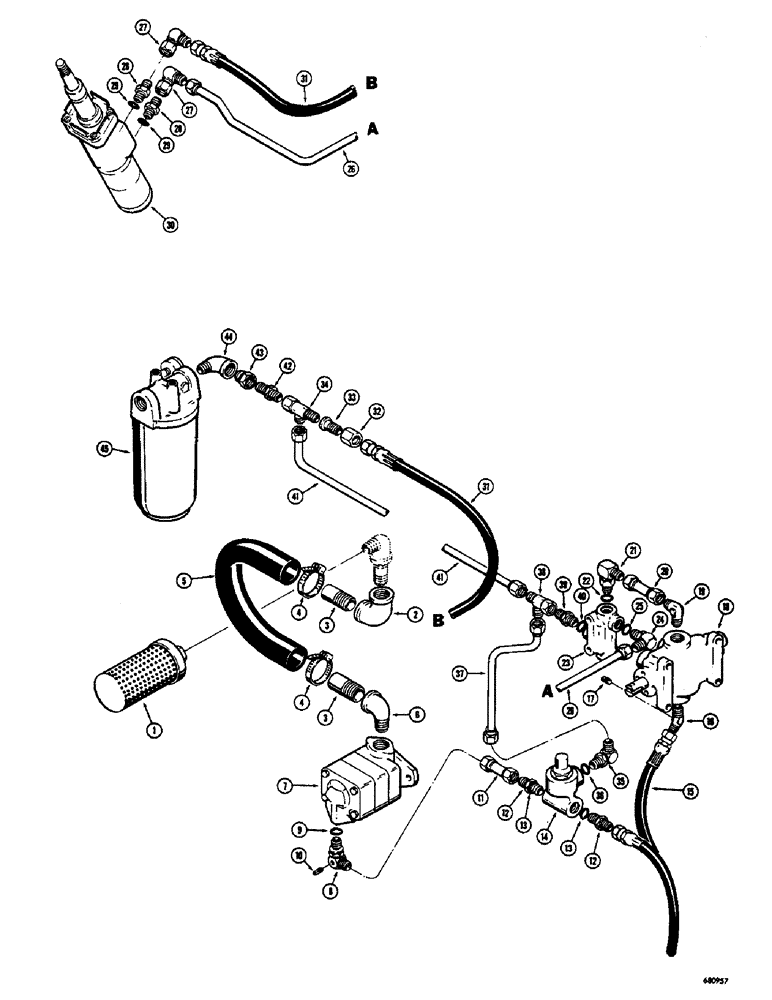

Запчасти Case 400 (070) - PRIMARY HYDRAULICS, USED BEFORE TRACTOR SERIAL NUMBER 6517 (07) - HYDRAULIC SYSTEM

1

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type

1шт.

2

221-396

FITTING

ELBOW - female, 90 degrees

1шт.

3

D51418

NIPPLE, LUBE

NIPPLE - pipe

2шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

5

D45704

HOSE - hydraulic, Serial Range: tank-pump

1шт.

6

221-1391

ELBOW - street, 90 degrees

1шт.

7

D45177

PUMP - hydraulic, vane type (19 G.P.M. at 2500 R.P.M. at 1500 P.S.I.), Parts list Figure 122

1шт.

8

D45855

ELBOW - adjustable, 90 degrees, Includes: Ref. 9

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

11

D45705

TUBE - pump to relief valve

1шт.

12

218-5082

FITTING

CONNECTOR - male, straight

2шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

14

D45648

VALVE - relief, hydraulic system, Parts list Figure 78

1шт.

15

D47613

TUBE

HOSE - relief valve to dozer control valve (27-1/2" long) When stock is exhausted, order D48432 hose for service

1шт.

15

D48432

HOSE

- relief valve to dozer control (27-1/2" long)

1шт.

16

D47396

ELBOW - male, 45 degrees

1шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

18

D45649

VALVE - hydraulic, dozer control, Parts list Figure 118

1шт.

19

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

20

D45705

TUBE - dozer control valve to flow control valve

1шт.

21

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

23

D45168

VALVE

- hydraulic, flow control, Parts list Figure 68

1шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

26

D47393

TUBE - flow control valve to manual steering pump

1шт.

27

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 29 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

30

D45167

PUMP ASSEMBLY - steering, manual, Parts list Figure 64

1шт.

31

D47401

HOSE - steering pump return (53" long)

1шт.

32

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - tube

1шт.

33

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- tube end

1шт.

34

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

35

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

37

D47391

TUBE - relief valve return

1шт.

38

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

39

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

41

D47400

TUBE - relief valve and flow control valve return

1шт.

42

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

43

221-69

BUSHING

- reducing, pipe

1шт.

44

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- street, 90 degrees

1шт.

45

D45650

FILTER

- hydraulic oil, Parts list Figure 78

1шт.
