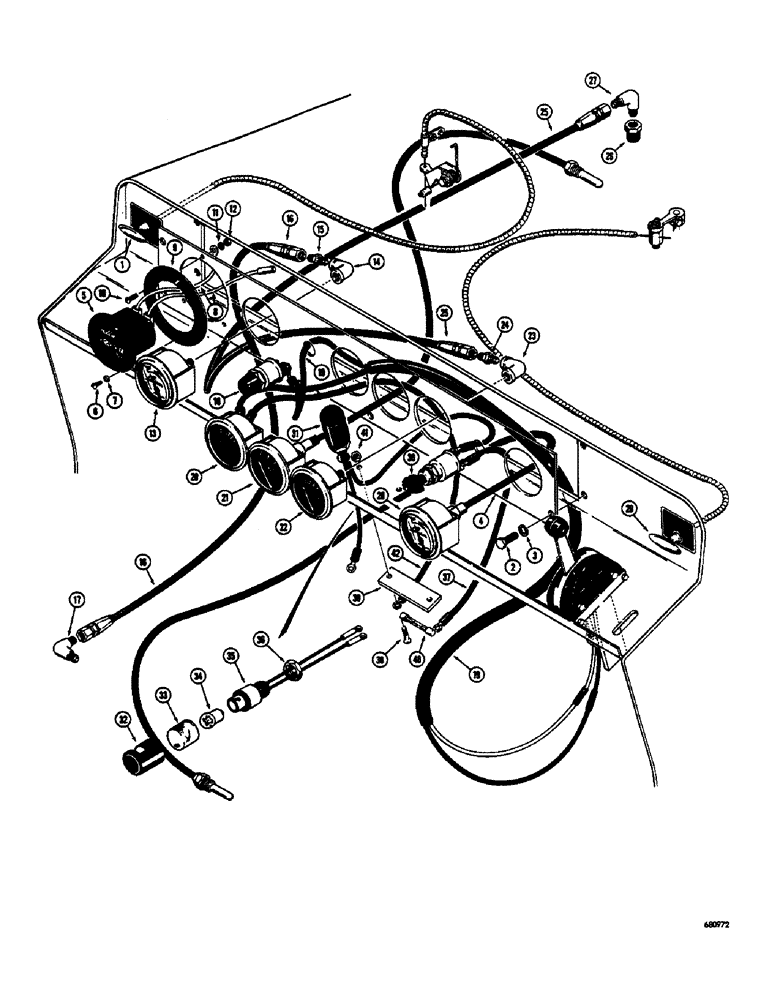

Запчасти Case 400 (014) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STOP CONTROL - emergency, engine air (See Detroit diesel parts book "In Line 53 Engines" for parts list)

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

D47584

PANEL - instrument

1шт.

D39286

GAUGE

KIT - engine hourmeter (Optional), Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

METER - engine hours

1шт.

D39284

KIT

PACKET - mounting hardware, Includes: Ref. 6 and 7

1шт.

6

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

7

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

8

D39285

ELECTRICAL WIRE

WIRE - hourmeter, 36" long (Cut as required)

2шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

11

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

12

129-640

NUT,#6-32, Brass

- hex. (#6 - 32 NC)

3шт.

13

D47583

GAUGE

- transmission oil pressure

1шт.

14

221-1374

ELBOW,90 Degree, 1/8" NPT

- female, 90 degrees (1/8" NPT)

1шт.

15

218-1021

HYD CONNECTOR,3/8" - 24 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (1/8" NPT x 3/8" JIC)

1шт.

16

D47585

HOSE - transmission oil pressure gauge (97" long)

1шт.

17

218-1503

ELBOW - 90 degrees (1/8" NPT x 3/8" JIC)

1шт.

18

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

19

D47582

WIRE - starting switch and ammeter to transmission shift control lever switch

1шт.

20

D45831

AMMETER

GAUGE - ammeter, alternator amperage

1шт.

21

D54827

GAUGE - engine water temperature

1шт.

22

D45832

GAUGE - engine oil pressure

1шт.

23

221-1374

ELBOW,90 Degree, 1/8" NPT

- female, 90 degrees (1/8" NPT)

1шт.

24

218-1021

HYD CONNECTOR,3/8" - 24 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (1/8" NPT x 3/8" JIC)

1шт.

25

D47587

HOSE

Engine Oil Pressure Gauge (71" long)

1шт.

26

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCING BUSHING - pipe (1/4" NPT x 1/8" NPT)

1шт.

27

218-1051

ELBOW,90 Degree, 3/8"-24, 37 Degree x 1/8"-27, NPTF

- male, 90 degrees (1/8" NPT x 3/8" JIC)

1шт.

28

D47503

GAUGE

- transmission temperature

1шт.

29

D45999

FUEL SHUT-OFF - engine

1шт.

30

D45953

SWITCH - light

1шт.

31

D45656

LAMP - instrument panel, Includes: Ref. 32 - 36

1шт.

32

D46255

COVER - lamp

1шт.

33

D37919

LENS

- lamp

1шт.

34

T33472

BULB - lamp

1шт.

35

NSS

NOT SOLD SEPARAT

SOCKET - lamp

1шт.

36

D39095

NUT

- hex. (Special)

1шт.

37

D47406

ARM

WIRE - light, Serial Range: switch-fuse

1шт.

38

171-44

SCREW - flat head machine (#5 - 40 NC x 1/2")

2шт.

D45954

FUSE ASSEMBLY - 30 amp, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

HOLDER - fuse

1шт.

40

223-30

FUSE

- 30 amp

1шт.

41

129-630

NUT,#5-40, Brass

- hex, brass (#5 - 40 NC)

2шт.

42

D47405

WIRE -, Serial Range: fuse-ammeter

1шт.
