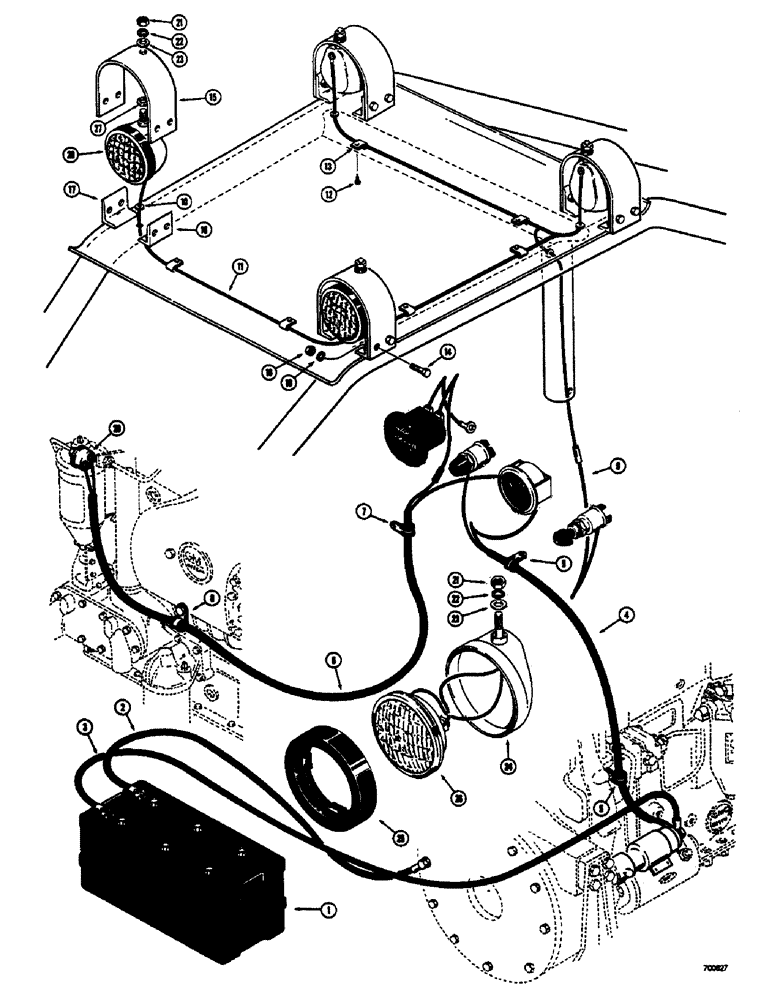

Запчасти Case 400 (012) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

- electrical, 12 volt (150 amp. hour capacity at 20 hour rate)

1шт.

2

A9168

CABLE

- battery ground (Negative)

1шт.

3

D47589

CABLE - battery, hot (Positive)

1шт.

4

D47588

HARNESS - wiring, starter solenoid to ammeter and push button starting switch

1шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness

2шт.

6

D47586

HARNESS - wiring, ammeter and hourmeter to fuel pressure switch

1шт.

7

D45948

CLAMP - harness, at firewall

1шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, at blower housing

1шт.

9

D47404

WIRE - lights, front and rear, Serial Range: (Switch-harness)

1шт.

10

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

- wiring

6шт.

11

D47403

HARNESS - front and rear lights

1шт.

12

187-1006

SCREW,Hex Hd, 1/4" x 5/8"

- self-tapping (1/4" x 5/8")

6шт.

13

D45955

CLAMP - wiring harness

6шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

15

D45721

SHROUD - light

4шт.

16

D45720

BRACKET - shroud mounting, R.H.

4шт.

17

D45719

BRACKET - shroud mounting, L.H.

4шт.

18

92-6

LOCK WASHER,3/8"

16шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

16шт.

20

D45651

LIGHT

ASSEMBLY - 12 volt, 60 watts, Includes: Ref. 21 - 26

4шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

95-8

WASHER,1/2"

- standard wrot 1/2"

1шт.

24

NSS

NOT SOLD SEPARAT

SHELL - light

1шт.

25

A25210

MOUNTING PARTS

RETAINER - light, rubber

1шт.

26

D46299

LAMP

LIGHT - sealed beam

1шт.

27

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

28

D28798

SWITCH

- fuel pressure

1шт.
