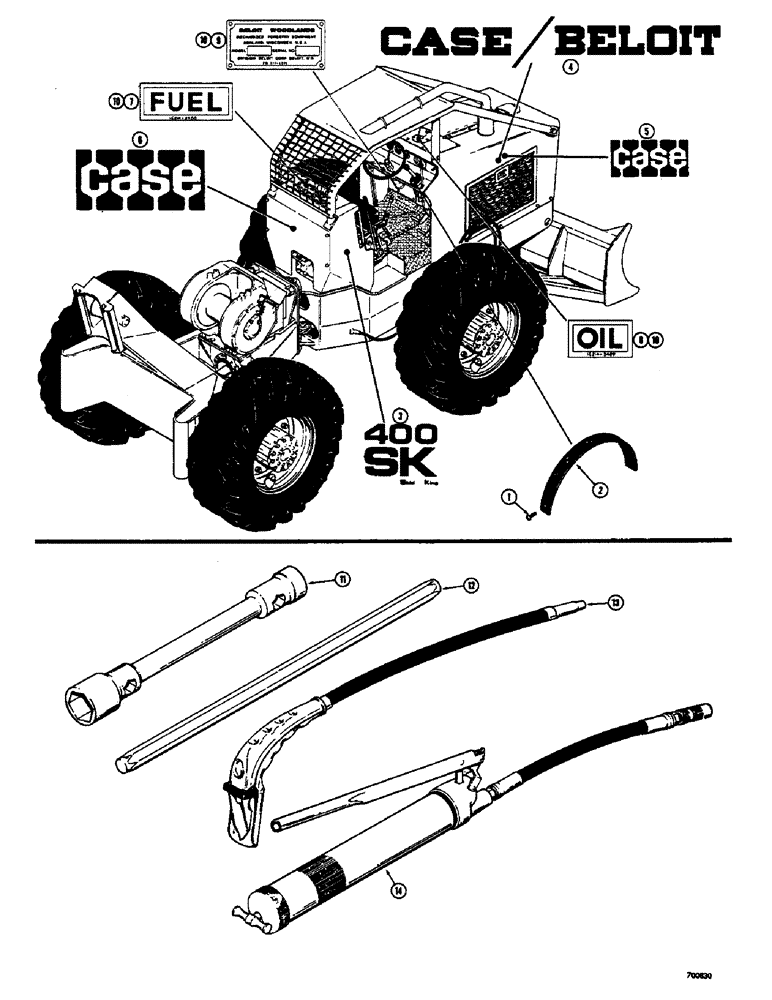

Запчасти Case 400 (128) - SHIFT PLATE, DECALS AND TOOLS, SHIFT PATTERN PLATE AND DECALS (05) - UPPERSTRUCTURE CHASSIS

1

175-94

SCREW - machine, truss head (#10 - 24 NC x 5/16")

2шт.

2

D47603

PLATE - transmission shift pattern

1шт.

3

D47664

DECAL - 400 SK, at fuel tank shield

2шт.

4

D47663

DECAL

- Case/Beloit, at hood (If used)

2шт.

5

321-1440

DECAL

- Case, at hood (If used)

2шт.

6

321-1443

DECAL

- Case, fuel tank (If used)

1шт.

7

D45942

PLATE - fuel

1шт.

8

D45941

PLATE - hydraulic oil

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - model designation and serial number

1шт.

10

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

- Drive, #4 x 1/4"

12шт.

D45214

KIT

TOOL KIT - skidder, Includes: Ref. 11 - 14

1шт.

This tool kit also includes (1) adjustable wrench and (1) planetary check and fill plug tool, which are not supplied individually. D46311 brake head bleeding wrench for model 300 skid king only is also included.

1шт.

11

D46312

ADJUSTING WRENCH

WRENCH - wheel (1-1/4" - 1-1/2") tools

1шт.

12

D46313

HANDLE

- wheel wrench (22" long) tools

1шт.

13

D46314

TOOL

SPOUT - oil tools

1шт.

14

219-101

GUN, GREASE

GREASE GUN - lever type tools

1шт.
