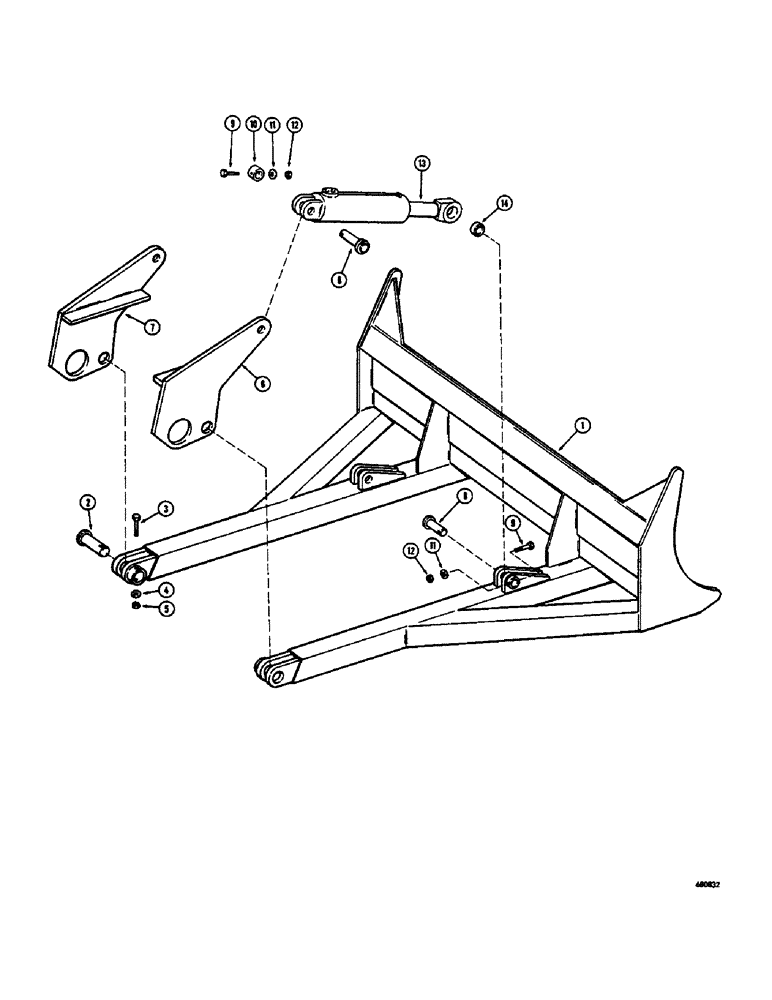

Запчасти Case 400 (112) - DECKING BLADE (05) - UPPERSTRUCTURE CHASSIS

1

D45935

FRAME AND BLADE ASSEMBLY - decking

1шт.

2

D45939

PIN - frame to mounting bracket

2шт.

3

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

4

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

D45936

BRACKET - decking blade mounting, R.H.

1шт.

7

D45937

BRACKET - decking blade mounting, L.H.

1шт.

8

D45940

PIN - cylinder mounting

4шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

10

D45938

COLLAR - pin (Closed end of cylinder only)

2шт.

11

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

13

D45641

CYLINDER - hydraulic, decking blade lift (4" I.D. x 16" stroke), Parts list Figure 116

2шт.

14

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal ball type

2шт.
