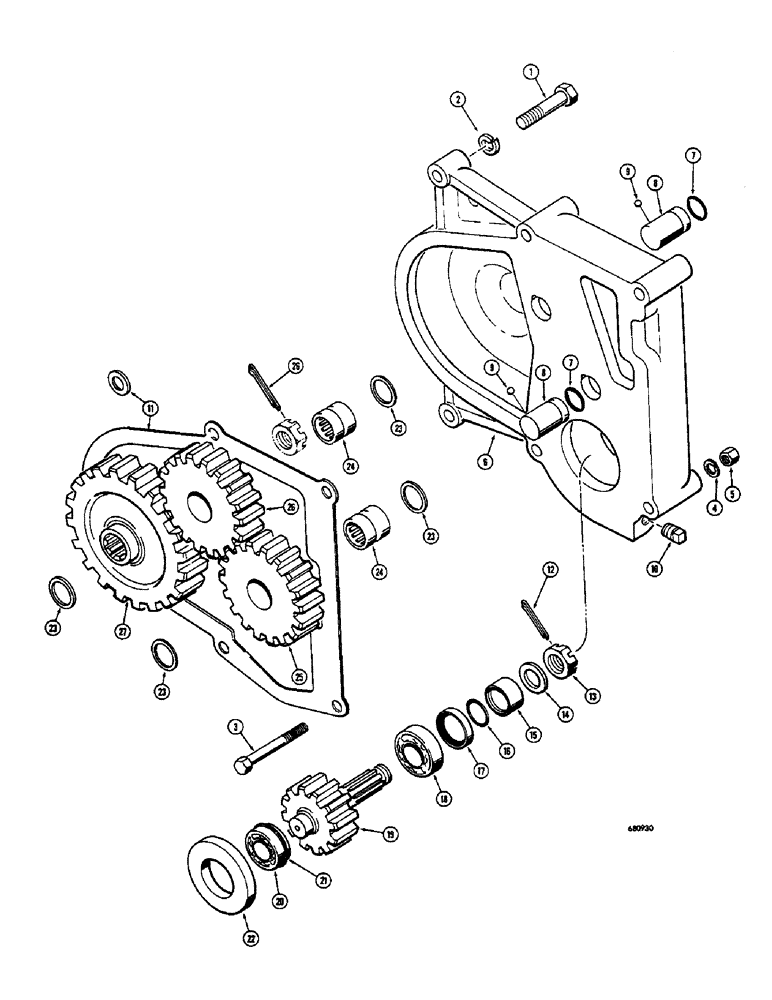

Запчасти Case 400 (100) - WINCH ADAPTER PARTS, GEARMATIC WINCH (05) - UPPERSTRUCTURE CHASSIS

1

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4" - 16 NF x 5"

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

6

D46286

HOUSING - winch adapter

1шт.

7

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "o" ring

2шт.

8

D38008

PIN

SHAFT - idler gear

2шт.

9

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

10

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - drain, square head (1/2" NPT)

1шт.

11

D46294

GASKET SET - housing

1шт.

12

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.

13

D38016

NUT

- hex., slotted (Special)

1шт.

14

D38015

WASHER - special

1шт.

15

D46288

SPACER - seal

1шт.

16

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring

1шт.

17

D37923

SEAL

- oil

1шт.

18

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball type

1шт.

19

D46297

GEAR AND SHAFT - P.T.O.

1шт.

20

A37733

BALL BEARING

BEARING - ball type, Includes: Ref. 21

1шт.

21

A28153

RING

SNAP RING - bearing retaining

1шт.

22

D46293

RING - bearing retaining

1шт.

23

D46289

SPACER - idler gear

4шт.

24

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

- needle type

2шт.

25

D46296

GEAR - idler, 28 teeth

1шт.

25

D38006

GEAR, IDLER

GEAR - idler, 24 teeth

1шт.

26

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.

27

D46295

GEAR - pinion

1шт.
