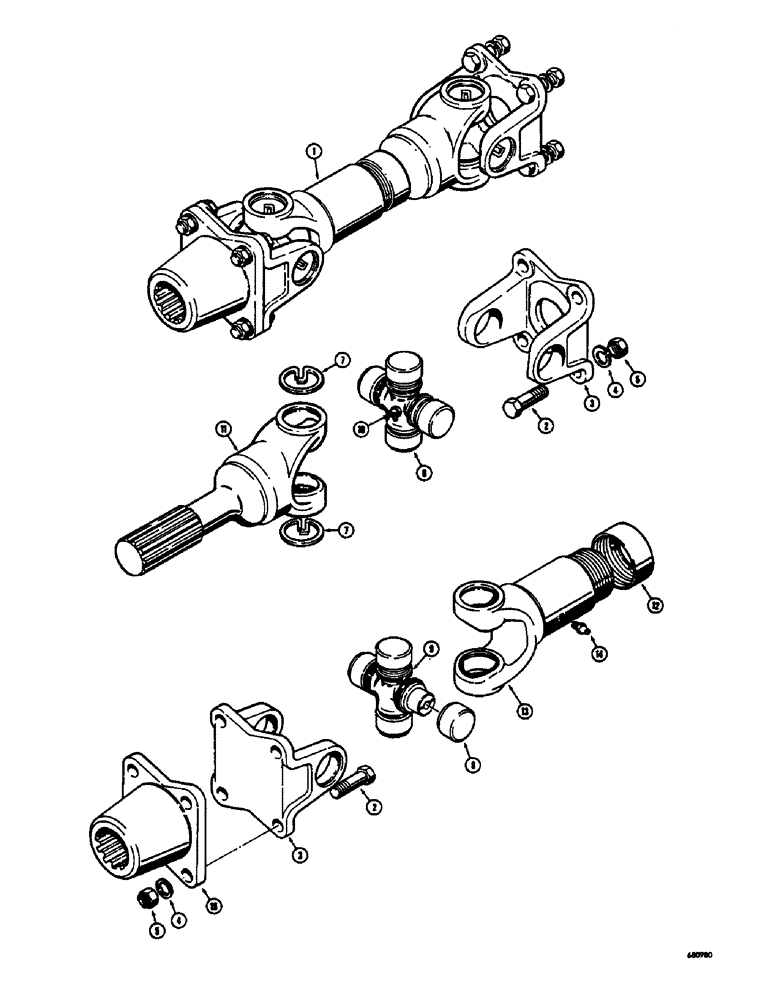

Запчасти Case 400 (098) - WINCH DRIVE SHAFT, GEARMATIC WINCH (05) - UPPERSTRUCTURE CHASSIS

1

D47321

SHAFT ASSEMBLY - winch drive, Includes: Ref. 2 - 15

1шт.

2

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16" - 20 NF x 1-1/4"

8шт.

3

D47619

YOKE - companion

2шт.

4

92-7

LOCK WASHER,7/16"

8шт.

5

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

8шт.

6

T27790

FLEXIBLE JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 - 10

2шт.

7

O4268CH

SNAP RING - bearing retaining

4шт.

8

1962CHA

BEARING - spider, cup type

4шт.

9

1961CHA

SPIDER - drive shaft

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

11

D47630

SHAFT AND YOKE ASSEMBLY - drive shaft, at trans.

1шт.

12

D47629

CAP

- drive shaft

1шт.

13

D47625

YOKE - splined, at winch

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

15

D47618

FLANGE - companion, at winch

1шт.
