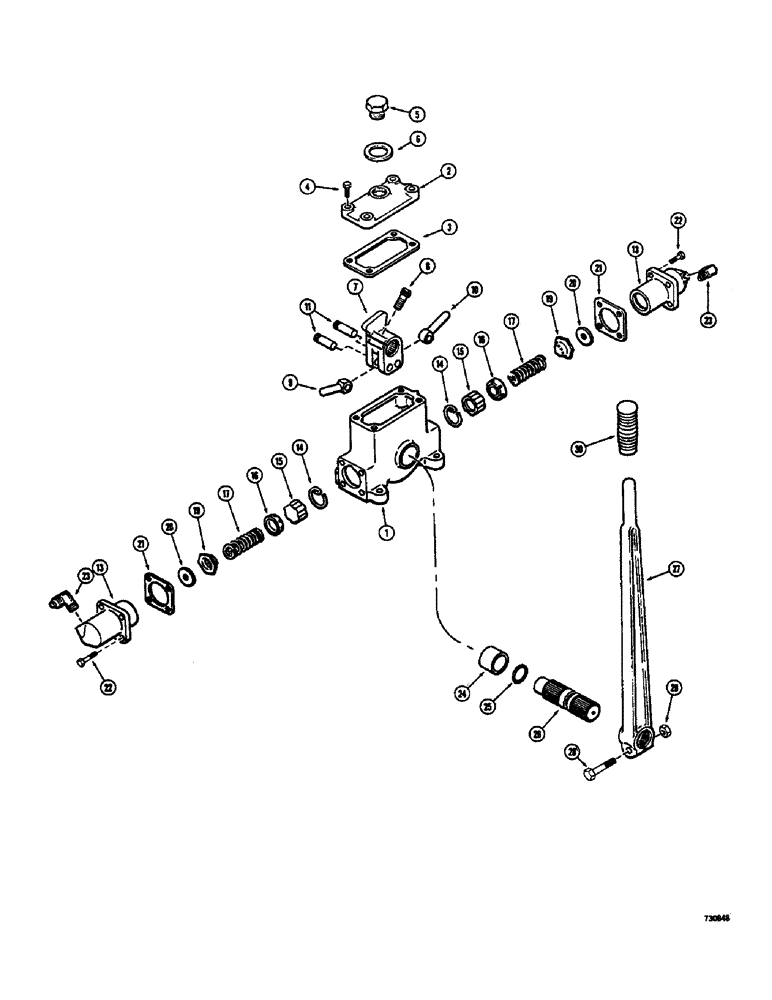

Запчасти Case 400 (096) - MASTER CONTROL, GEARMATIC WINCH (05) - UPPERSTRUCTURE CHASSIS

D37655

MASTER CONTROL - winch, early production (Can be identified by "Model X710B" being stamped on the top cover) When stock is exhausted, order (1) F49395 master control for service, Includes: Ref. 1 - 30

1шт.

D49395

CONTROL

MASTER CONTROL - winch, late production (Can be identified by "Model X710C" being stamped on the top cover), Includes: Ref. 1 - 30

1шт.

1

D37658

HOUSING

- master control

1шт.

2

D37665

COVER

- master control

1шт.

3

D37664

GASKET

- cover

1шт.

4

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

D37667

CAP

- filler

1шт.

6

D37666

WASHER

- fiber

1шт.

7

D37662

ROCKER ARM

ARM - rocker

1шт.

8

D37925

BOLT

SHCS - special, 5/16" - 18 NC x 1"

1шт.

D49387

ROD

SET - push rods, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ROD - push, short

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - push, long

1шт.

11

D37661

PIN

- push rods

2шт.

12

D37659

CYLINDER

- complete (Not illustrated assembled), Includes: Ref. 13 - 21

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - cylinder

1шт.

14

D37677

RING

- lock

1шт.

Available in D46761 repair kit.

1шт.

15

D37676

PISTON

- cylinder

1шт.

Available in D46761 repair kit.

1шт.

16

D37675

SEAL

"U" CUP - cylinder

1шт.

Available in D46761 repair kit.

1шт.

17

D37673

BUSHING

SPRING - cylinder

1шт.

Available in D46761 repair kit.

1шт.

18

D37672

VALVE

- cylinder (Not illustrated assembled), Includes: Ref. 19 and 20

1шт.

Available in D46761 repair kit.

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE

1шт.

20

D37917

WASHER

- rubber

1шт.

Available in D46761 repair kit.

1шт.

21

D37674

GASKET

- cylinder

1шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

23

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

24

D37670

BUSHING

- shaft

1шт.

25

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - O-ring, shaft

1шт.

26

D37671

SHAFT

- control

1шт.

27

D37668

HANDLE

LEVER - control

1шт.

28

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8" - 24 NF x 1-3/4"

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

30

A70170

GRIP

HAND GRIP - lever

1шт.
