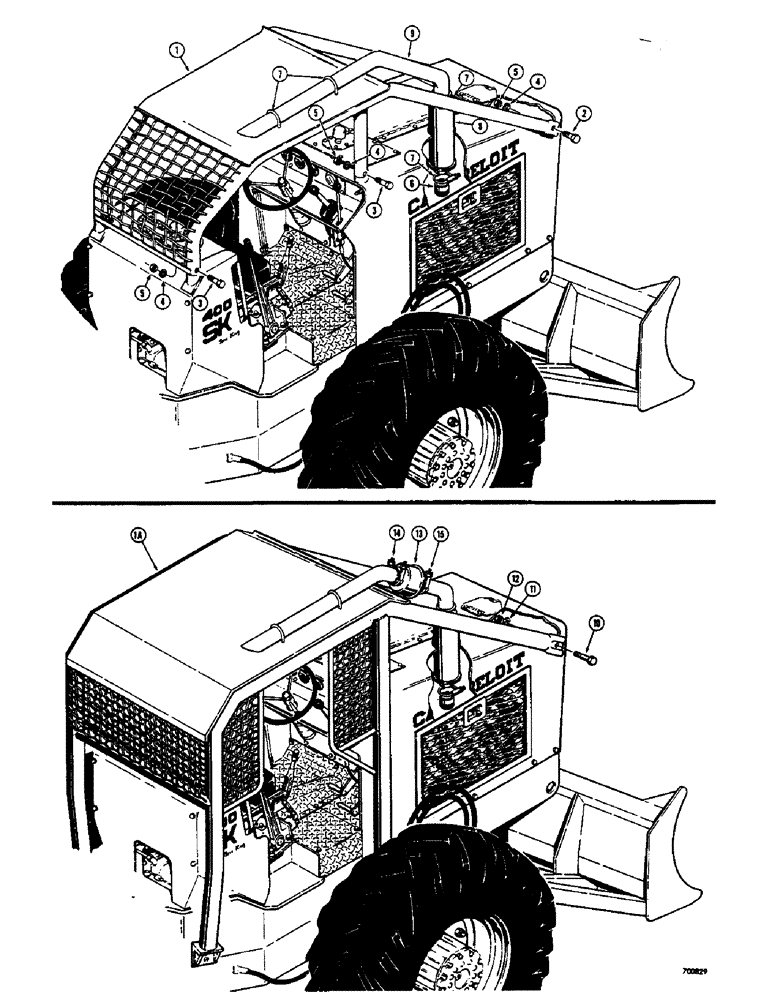

Запчасти Case 400 (092) - CANOPY AND EXHAUST SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

D47308

CANOPY - protective (Used before tractor serial no. 6605)

1шт.

1a

D48899

CANOPY - protective (Used on tractor serial no. 6605 and after)

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

3

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4"

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

5

25-1012

NUT,3/4"-10, G5

6шт.

6

D47310

PIPE - exhaust, at exhaust manifold

1шт.

7

L13781

CLAMP

- muffler and exhaust pipe

4шт.

8

L13782

MUFFLER

- exhaust

1шт.

9

D47309

PIPE - exhaust

1шт.

10

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

HHCS - 1" - 8 NC x 3-1/2"

10шт.

11

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

WASHER, LOCK, 1"

10шт.

12

25-1016

NUT,1"-8, G5

10шт.

D51188

SPARK ARRESTER ASSEMBLY - engine exhaust (If used), Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

ARRESTOR - spark

1шт.

14

D48898

CLAMP - spark arrestor

1шт.

15

D48898

CLAMP - spark arrester to exhaust pipe

1шт.
