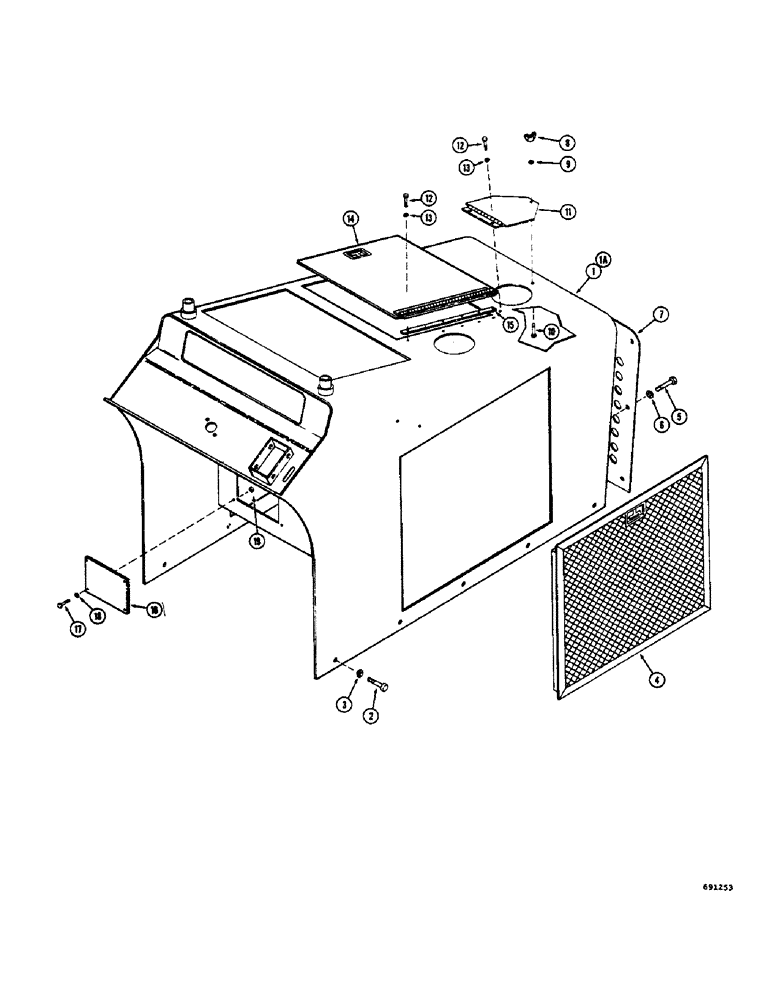

Запчасти Case 400 (088) - HOOD SIDE SCREENS AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D47298

HOOD - engine (Used before tractor serial no. 6605)

1шт.

1a

D49370

HOOD - engine (Used on tractor serial no. 6605 and after)

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

3

92-8

LOCK WASHER,1/2"

10шт.

4

D47300

SCREEN - engine side, brush guard

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

6

92-8

LOCK WASHER,1/2"

7шт.

7

D47299

GRILLE - radiator guard

1шт.

8

129-404

WING NUT,1/4"-20

NUT - winged (1/4" - 20 NC)

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

D47302

LID - radiator cap access

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

7шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

14

D47307

LID - engine access

1шт.

15

D47304

SPACER - lid hinge

1шт.

16

D47303

COVER - access, engine rear

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
