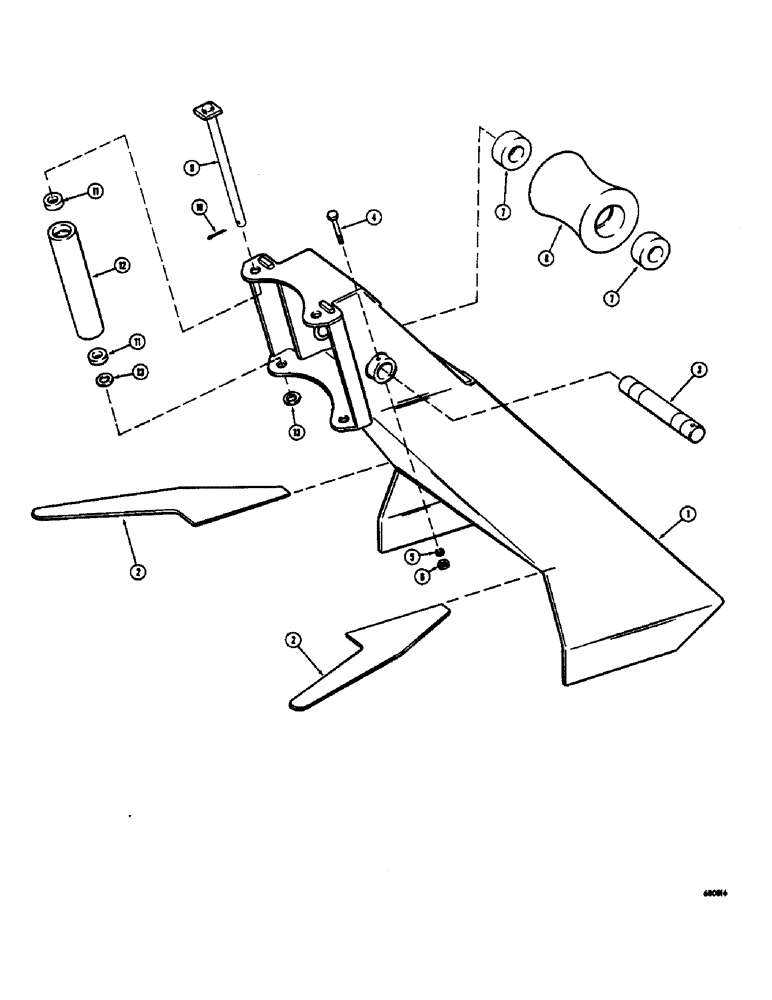

Запчасти Case 400 (086) - FAIRLEAD FRAME AND FAIRLEADS (05) - UPPERSTRUCTURE CHASSIS

1

D45829

FRAME - fairlead

1шт.

2

D45830

GUSSET PLATE - fairlead frame

2шт.

3

D45774

SHAFT - horizontal fairlead mounting, Includes: Ref. 4

1шт.

4

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS 3/8" - 16 NC x 3-1/2"

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

7

D45773

BEARING - ball type, horizontal fairlead (1-3/4" wide) Used with D45772 roller

2шт.

7

D53312

BEARING

- ball type, horizontal fairlead (1-1/16" wide) Used with D53311 roller

2шт.

8

D45772

ROLLER

- horizontal fairlead, production type (When stock is exhausted, order D53311 roller for service)

1шт.

8

D53311

ROLLER - horizontal fairlead, service type

1шт.

9

D45771

SHAFT - vertical fairlead mounting

2шт.

10

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

11

D45770

BEARING - ball type, vertical fairlead

4шт.

12

D45769

ROLLER - vertical fairlead

2шт.

13

D45768

WASHER - vertical fairlead

4шт.
