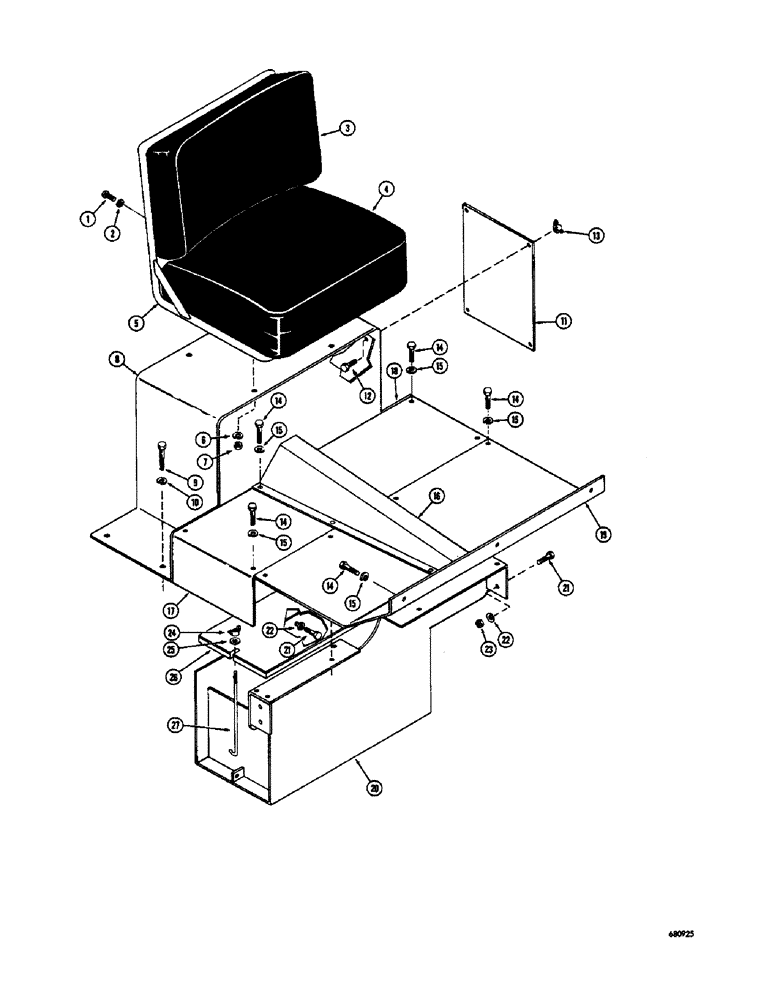

Запчасти Case 400 (082) - SEAT, FLOOR PLATES AND BATTERY BOX (05) - UPPERSTRUCTURE CHASSIS

D45633

SEAT ASSEMBLY - operator's, Includes: Ref. 1 - 7

1шт.

1

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- machine, round head Phillips (1/4" - 20 NC x 3/4")

4шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

3

D45997

CUSHION - seat back

1шт.

4

D45996

CUSHION - seat

1шт.

5

D46067

FRAME - seat

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

129-122

NUT,5/16"-24, G5

4шт.

8

D47311

SHROUD - transmission

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Includes: Ref. 10 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

D47317

COVER - shroud, transmission control valve access

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

129-410

WING NUT,3/8"-16

NUT - winged (3/8" - 16 NC)

4шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

17шт.

15

92-6

LOCK WASHER,3/8"

17шт.

16

D47316

PLATE - floor, center

1шт.

17

D47313

PLATE - floor, R.H. rear

1шт.

18

D47312

PLATE - floor, L.H. rear

1шт.

19

D47314

PLATE - floor, front

1шт.

20

D47315

BOX - battery

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

24

129-410

WING NUT,3/8"-16

NUT - winged (3/8" - 16 NC)

2шт.

25

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

26

D45819

COVER - battery box

1шт.

27

D45818

ROD - cover holddown

2шт.
