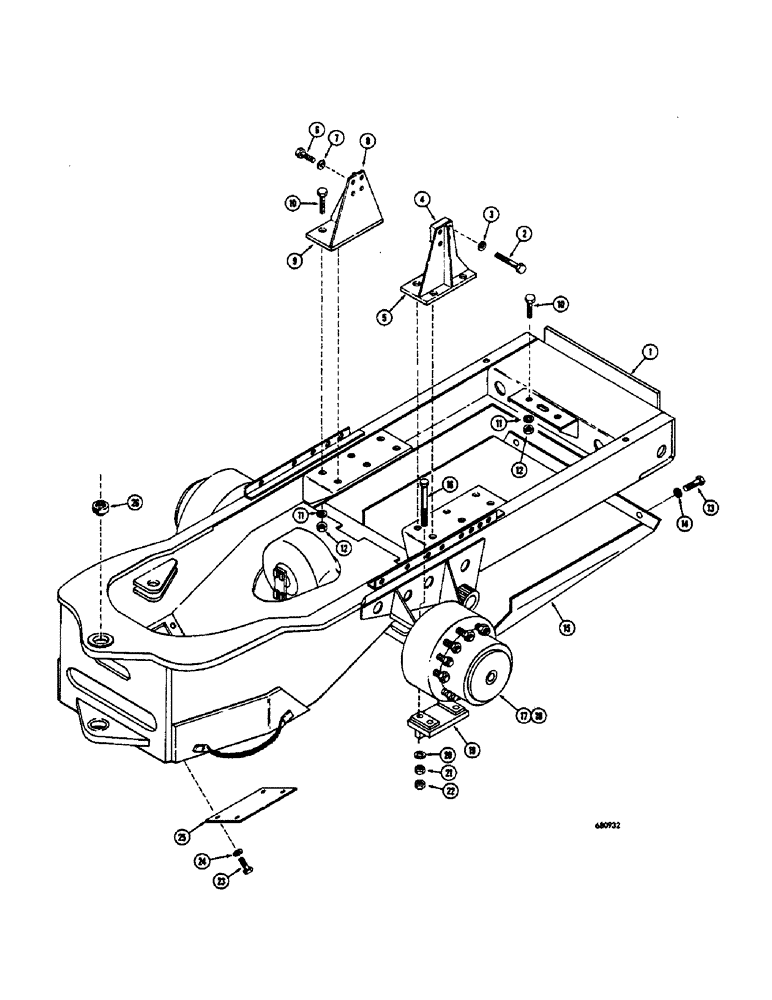

Запчасти Case 400 (080) - FRONT FRAME AND AXLE (05) - UPPERSTRUCTURE CHASSIS

1

D47263

FRONT FRAME - skidder

1шт.

2

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

D45684

MOUNT - engine, R.H.

1шт.

5

D45668

PAD - engine mount, R.H.

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

D45683

MOUNT - engine, L.H.

1шт.

9

D45669

PAD - engine mount, L.H.

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

11

92-8

LOCK WASHER,1/2"

10шт.

12

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

10шт.

13

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

15

D45662

PAN - engine oil pan guard

1шт.

16

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

HHCS - 3/4" - 10 NC x 8-1/2"

8шт.

17

D45631

AXLE ASSEMBLY - front, hi-traction (Standard), Parts list Figures 54 - 58

1шт.

18

D45632

AXLE ASSEMBLY - front, no-spin (Optional), Parts list Figures 54 - 58

1шт.

19

L30662

LARGE PLATE

PAD - axle mounting

2шт.

20

95-12

WASHER,3/4"

- standard wrot () 3/4"

8шт.

21

25-1012

NUT,3/4"-10, G5

8шт.

22

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 10 NC)

8шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

D47264

COVER - front frame, transmission access

2шт.

26

D23601

HOUSING

BUSHING - pivotal ball type

2шт.
