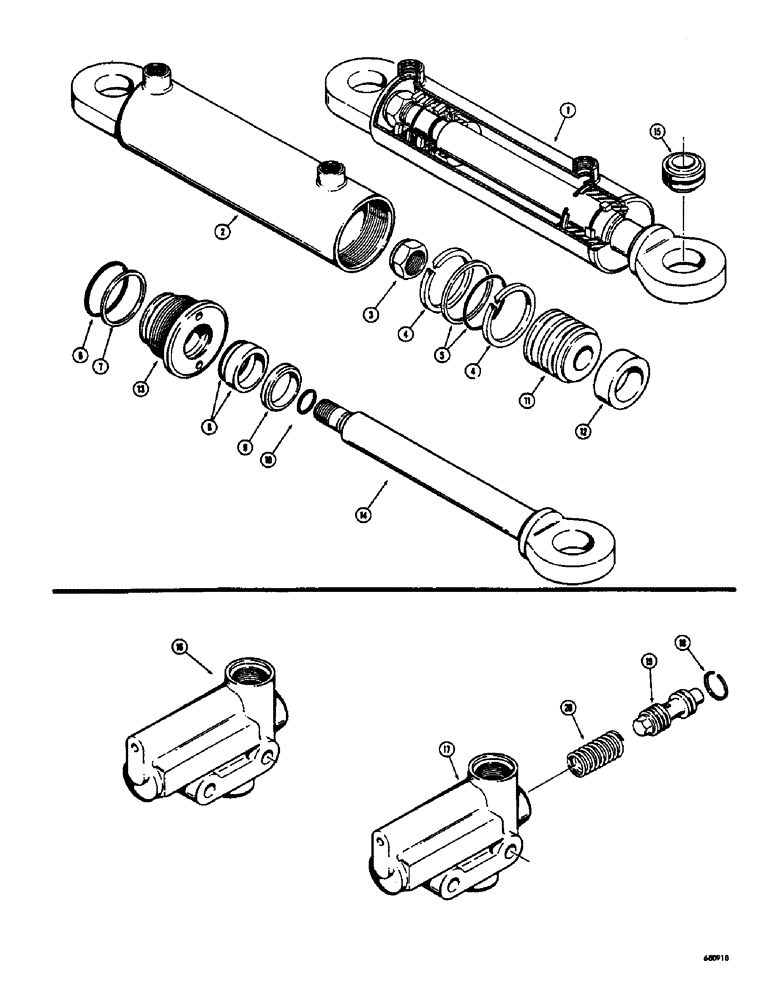

Запчасти Case 400 (068) - D45175 STEERING CYLINDER (05) - UPPERSTRUCTURE CHASSIS

1

D45175

CYLINDER - hydraulic, steering (3" I.D. x 9-1/8" stroke), Includes: Ref. 2 - 14

2шт.

2

D46055

TUBE - cylinder

1шт.

3

D48144

NUT - hex., lock (1-1/4" - 12 NF)

1шт.

D45174

KIT - packing, gland type cylinder, Includes: Ref. 4 - 10

1шт.

4

D46051

RING - piston

2шт.

5

D46049

SEAL

RING SET - teflon and "o" ring

1шт.

6

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

SEAL - "o" ring, gland

1шт.

7

D38767

RING

- backup, gland seal

1шт.

8

D46044

SEAL SET - "u" cup and ring, rod

1шт.

9

D46043

SEAL - wiper, rod

1шт.

10

D46047

SEAL - "o" ring, rod

1шт.

11

D46061

PISTON - cylinder

1шт.

12

D46059

SPACER - piston

1шт.

13

D46053

GLAND - cylinder

1шт.

14

D46057

ROD - piston (2" dia.)

1шт.

15

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - steering cylinder, pivotal ball type

4шт.

16

D45168

VALVE

- hydraulic, flow control, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - flow control valve D45168

1шт.

18

D46214

CIRCLIP

SNAP RING - spool retaining D45168 flow control valve

1шт.

19

D46215

SPOOL

- flow control valve D45168

1шт.

20

D46216

SPRING

- spool D45168 flow control valve

1шт.
