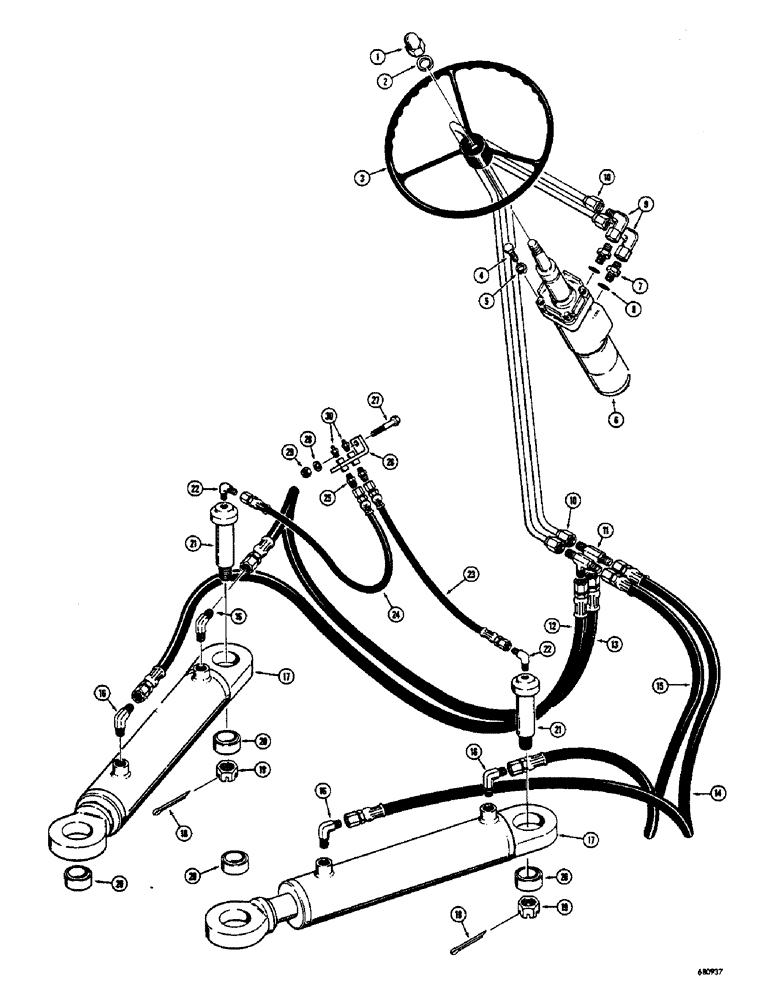

Запчасти Case 400 (066) - STEERING WHEEL AND STEERING HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

A8744

NUT

- acorn (Special)

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

D45692

WHEEL - steering

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D45167

PUMP ASSEMBLY - steering, manual, Parts list Figure 64

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 8 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

10

D47397

TUBE - manual steering pump to steering cylinders

2шт.

11

218-595

TEE,7/8"-14, 37 Degree

- tube

2шт.

12

D47616

HOSE - L.H. steering cylinder, rod end (55" long)

1шт.

13

D20358

HOSE

- L.H. steering cylinder, closed end (45" long)

1шт.

14

D47402

HOSE ASSY.

HOSE - R.H. steering cylinder. rod end (76" long)

1шт.

15

R15559

HOSE - R.H. steering cylinder, closed end (63" long)

1шт.

16

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees

4шт.

17

D45175

CYLINDER - hydraulic, steering (3" I.D. x 9-1/8" stroke), Parts list Figure 68

2шт.

18

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

19

25-1216

NUT - hex., slotted (1" - 8 NC) 1"-8, G5

2шт.

20

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal ball type

4шт.

21

D45728

PIN - steering cylinder mounting, front

2шт.

22

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees

2шт.

23

D47335

HOSE - front steering cylinder pin lubricant, R.H. (32" long)

1шт.

24

D47334

HOSE - front steering cylinder pin lubricant, L.H. (26" long)

1шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

2шт.

26

D47333

BRACKET - hose mounting, at transmission housing

1шт.

27

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8" - 24 NF x 2-1/4"

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.
