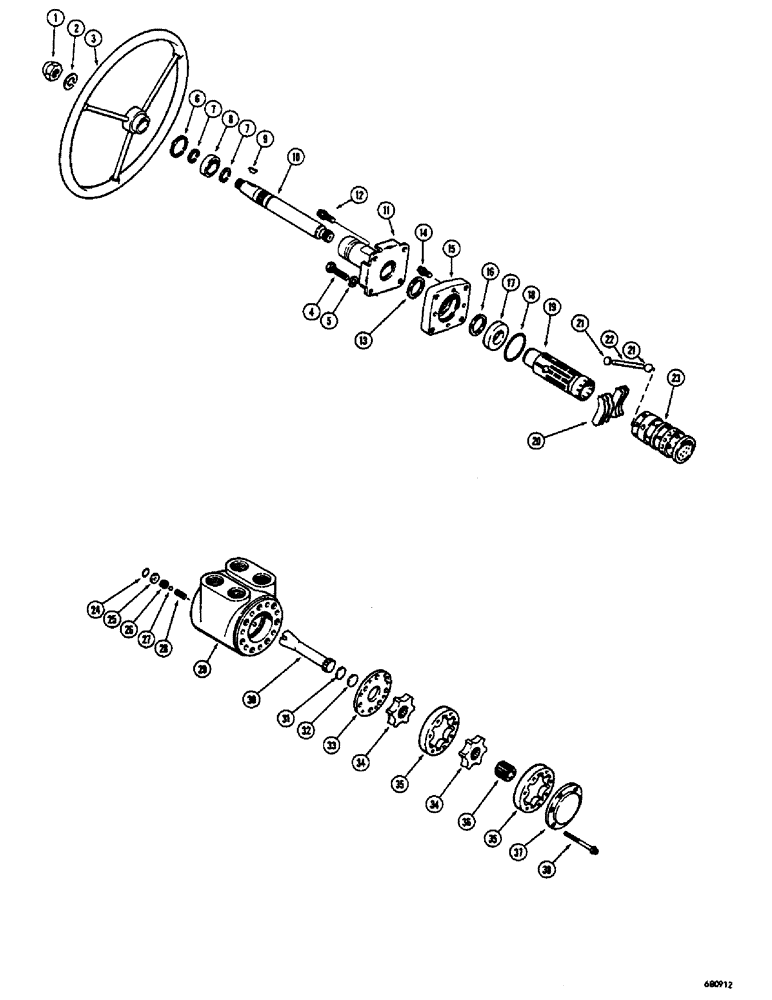

Запчасти Case 400 (064) - STEERING WHEEL AND MANUAL STEERING PUMP (05) - UPPERSTRUCTURE CHASSIS

1

A8744

NUT

- acorn (Special)

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

D45692

WHEEL - steering

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

D45167

PUMP ASSEMBLY - steering, manual, Includes: Ref. 6 - 38

1шт.

6

D46319

OIL SEAL

RETAINER - bearing, outer

1шт.

7

F53335

RING, SNAP

SNAP RING - bearing retaining

2шт.

8

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- steering shaft

1шт.

9

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - #11 Woodruff

1шт.

10

D46320

SHAFT - steering

1шт.

11

D46321

COLUMN - steering

1шт.

12

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3/4")

2шт.

13

A28211

OIL SEAL

- oil

1шт.

14

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap (5/16" - 18 NC x 5/8")

4шт.

15

D46317

PLATE ASSY.

COVER - upper

1шт.

16

A72029

RING

SEAL - quad ring

1шт.

17

A72030

SPACER

BUSHING - upper cover

1шт.

18

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "o" ring

1шт.

D46318

CONTROL

ASSEMBLY - pump, Includes: Ref. 19 - 29

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - pump

1шт.

20

L30889

SPRING

- centering

6шт.

21

L30894

PIN

DISC - pin

2шт.

22

L30888

PIN

- centering

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - pump

1шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - "o" ring, 7/16 x 5/16 x 1/16 in

1шт.

25

L30892

PLUG

- seal, housing

1шт.

26

L30891

SEAT

- check

1шт.

27

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

28

L30890

VALVE SPRING

SPRING - check

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

30

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

31

D46315

SPACER

- drive shaft, 1/2" long

1шт.

32

C11828

SPACER

- drive shaft, 1" long

1шт.

33

A72026

PLATE

- spacer

1шт.

L30874

GEAR WHEEL

GEAR SET - pump, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

STAR - gear

1шт.

35

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

36

D46316

DRIVE SPROCKET

SLEEVE - splined

1шт.

37

A72024

CAP

COVER - lower

1шт.

38

166-537

12 PT SCREW,Flg, 5/16" - 24 x 3 1/2", Gr 8

SCREW - ferry cap (5/16" - 24 NF x 3-1/2")

7шт.
