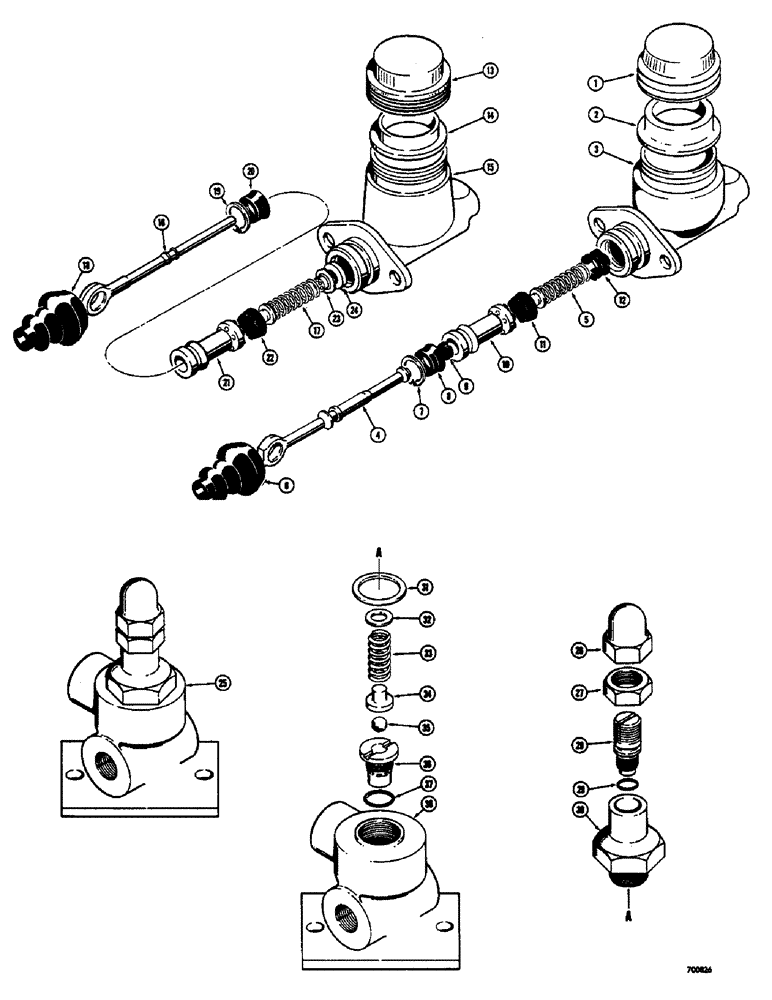

Запчасти Case 400 (048) - D45180 BRAKE MASTER CYLINDER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
D45180
MASTER CYLINDER - brake, early production (1" bore) Use D50280, Includes: Ref. 1 - 12
1шт.
1
D46238
CAP - filler
1шт.
2
D46239
GASKET - cap
1шт.
3
NSS
NOT SOLD SEPARAT
BODY - master cylinder
1шт.
4
D46240
ROD - push, brake
1шт.
5
D46233
SPRING AND RETAINER - piston return
1шт.
D45181
REPAIR KIT - brake master cylinder, Includes: Ref. 6 - 12
1шт.
6
D46235
BOOT - master cylinder
1шт.
7
D46237
SNAP RING - piston retaining
1шт.
D46232
PISTON ASSEMBLY - master cylinder, Includes: Ref. 8 - 10
1шт.
8
D46241
CUP - secondary
1шт.
9
D46242
BUMPER - push rod
1шт.
10
NSS
NOT SOLD SEPARAT
PISTON - master cylinder
1шт.
11
D46236
CUP - primary
1шт.
12
D46234
CHECK VALVE - master cylinder
1шт.
D50280
MASTER CYLINDER - brake, late production (1-1/8" bore), Includes: Ref. 13 - 24
1шт.
13
D46238
CAP - filler
1шт.
14
D46239
GASKET - cap
1шт.
15
NSS
NOT SOLD SEPARAT
BODY - master cylinder
1шт.
16
D50281
ROD - push, brake
1шт.
T32652
KIT
REPAIR KIT - brake master cylinder, Includes: Ref. 17 - 24
1шт.
17
NSS
NOT SOLD SEPARAT
SPRING AND RETAINER - piston return
1шт.
18
D46235
BOOT - master cylinder
1шт.
19
A36277
SNAP RING,1.125", Int, #112
piston 1.125", Int, #112
1шт.
NSS
NOT SOLD SEPARAT
PISTON ASSEMBLY - master cylinder, Includes: Ref. 20 and 21
1шт.
20
NSS
NOT SOLD SEPARAT
CUP - secondary
1шт.
21
NSS
NOT SOLD SEPARAT
PISTON - master cylinder
1шт.
22
NSS
NOT SOLD SEPARAT
CUP - primary
1шт.
23
NSS
NOT SOLD SEPARAT
CHECK VALVE - master cylinder
1шт.
24
NSS
NOT SOLD SEPARAT
SEAT - check valve
1шт.
25
D45165
RELIEF VALVE - brake system (1500 P.S.I.), Includes: Ref. 26 - 38
1шт.
26
129-877
NUT,Crown, 3/4"-10
- acorn D45165 brake system relief vlave
1шт.
27
129-167
JAM NUT,Jam, 5/8"-18, G5
- hex., jam D45165 brake system relief vlave
1шт.
28
34110
ADJUSTMENT SCREW
- adjusting, relief valve D45165 brake system
1шт.
29
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
SEAL - "o" ring, adjusting screw D45165 brake system relief vlave
1шт.
30
34113
BODY
CAP - hex., housing D45165 brake system relief vlave
1шт.
31
34115
GASKET
- cap D45165 brake system relief vlave
1шт.
32
36660
WASHER
- spring retaining D45165 brake system relief vlave
1шт.
33
D24049
VALVE SPRING
SPRING - relief valve D45165 brake system
1шт.
34
CAS34120
BUSHING
GUIDE - spring, poppet D45165 brake system relief vlave
1шт.
35
211-12
BALL,7/16 Dia
- relief valve D45165 brake system
1шт.
36
D28913
SEAT
- relief valve D45165 brake system
1шт.
38
NSS
NOT SOLD SEPARAT
HOUSING - relief valve D45165 brake system
1шт.
37
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "o" ring, valve seat D45165 brake system relief
1шт.
Выбрано товаров: 44
