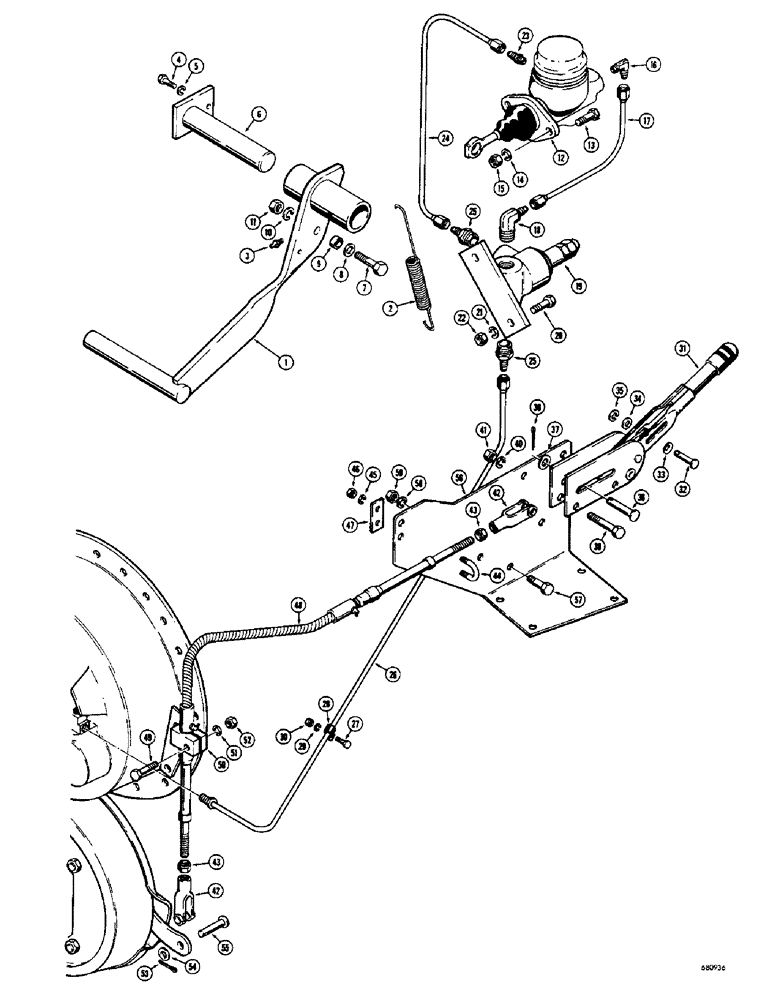

Запчасти Case 400 (044) - BRAKE PEDAL, MASTER CYLINDER AND PARKING BRAKE (05) - UPPERSTRUCTURE CHASSIS

1

D47290

PEDAL - brake actuating

1шт.

2

D45789

SPRING - pedal return

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

4

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

D47289

SHAFT - brake pedal

1шт.

7

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

HHCS - 7/16" - 20 NF x 1-1/2"

1шт.

8

95-7

WASHER,7/16"

- standard wrot () 7/16"

1шт.

9

D47291

ELECTRICAL WIRE

BUSHING - master cylinder push rod

1шт.

10

92-7

LOCK WASHER,7/16"

1шт.

11

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

1шт.

12

REF

INSTRUCTION

CYLINDER - brake, master, Parts list Figure 48

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

16

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

17

D47286

TUBE - master cylinder to relief valve

1шт.

18

222-979

ELBOW - male, 90 degrees

1шт.

19

D45165

RELIEF VALVE - brake system (1500 P.S.I.), Parts list Figure 48

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

23

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

ADAPTER - male, straight

1шт.

24

D47288

TUBE - relief valve to master cylinder

1шт.

25

222-904

ADAPTER - male, straight

2шт.

26

D47287

TUBE - relief, Serial Range: valve-brake

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

28

D45802

CLAMP - tube

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

25-104

NUT,1/4"-20, G5

2шт.

D45655

LEVER ASSEMBLY - parking brake, Includes: Ref. 31 - 38

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

32

D47260

PIN

- handle

1шт.

33

D47261

WASHER

- special

1шт.

34

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

35

C14652

RING

SNAP RING - pin retaining

1шт.

36

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - link

1шт.

37

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

42

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - parking brake cable

2шт.

43

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

D47337

"U" BOLT ASSEMBLY - parking brake cable, Includes: Ref. 44 - 46

1шт.

44

NSS

NOT SOLD SEPARAT

"U" BOLT - parking brake cable

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

46

25-104

NUT,1/4"-20, G5

2шт.

47

D47336

PLATE - cable mounting "U" bolt retaining

1шт.

48

D45858

CABLE - parking brake control

1шт.

49

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

50

D47338

BRACKET - cable mounting

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

53

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

54

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

55

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

56

D47322

BRACKET - winch control and parking brake cable mounting

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

58

92-6

LOCK WASHER,3/8"

3шт.

59

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.
