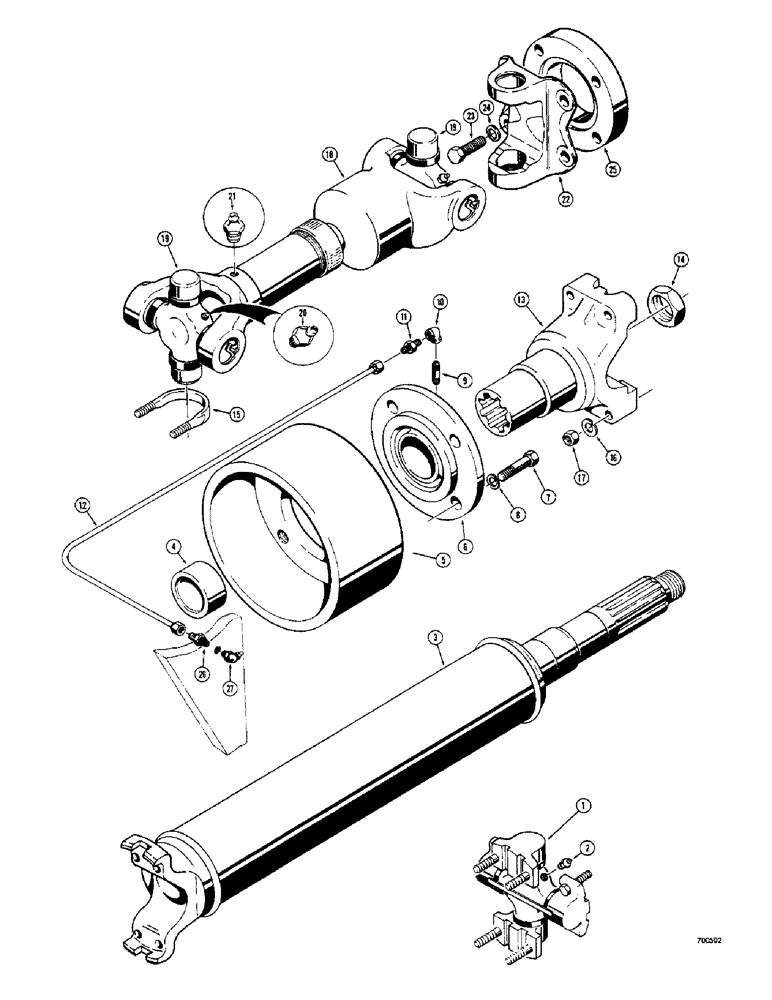

Запчасти Case 400 (052) - REAR AXLE DRIVE SHAFT (04) - UNDERCARRIAGE

D47277

DRIVE SHAFT ASSEMBLY - rear axle, Includes: Ref. 1 - 22

1шт.

1

D45163

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end) (When stock is exhausted L33945 kit will be supplied), Includes: Ref. 2

1шт.

1

L33945

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end), Includes: Ref. 2

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 20 NF)

1шт.

3

D45974

SHAFT ASSY.

SHAFT ASSEMBLY - rear axle, long

1шт.

4

D45973

SPACER

- drive shaft bearing

1шт.

5

D45975

MOUNTING PARTS

MOUNT - drive shaft bearing

1шт.

6

D45171

BEARING, BALL

BEARING - drive shaft, ball type

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe (1/8" NPT x 3/4")

1шт.

10

221-1374

ELBOW,90 Degree, 1/8" NPT

- female, pipe (90 degrees)

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

12

D47595

TUBE

- bearing lubricant

1шт.

13

D45972

YOKE

- drive shaft, intermediate

1шт.

14

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

D45971

BOLT

"U" BOLT ASSEMBLY - drive shaft, Includes: Ref. 15 - 17

2шт.

15

NSS

NOT SOLD SEPARAT

"U" BOLT - drive shaft

1шт.

16

92-7

LOCK WASHER,7/16"

2шт.

17

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

2шт.

18

D45970

SHAFT ASSY.

SHAFT ASSEMBLY - rear axle, short, Includes: Ref. 19 - 21

1шт.

19

D45166

KIT

SPIDER AND BEARING ASSEMBLY - shaft, Includes: Ref. 20

2шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 20 NF)

1шт.

21

219-27

LUBE NIPPLE,3/8" - 24

FITTING - grease, straight (3/8" - 24 NF)

1шт.

22

D47591

FLANGE

- yoke, at transmission

1шт.

23

114-428

X

HHCS - 1/2" - 20 NF x 2"

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

D47285

SPACER - flange

1шт.

26

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
