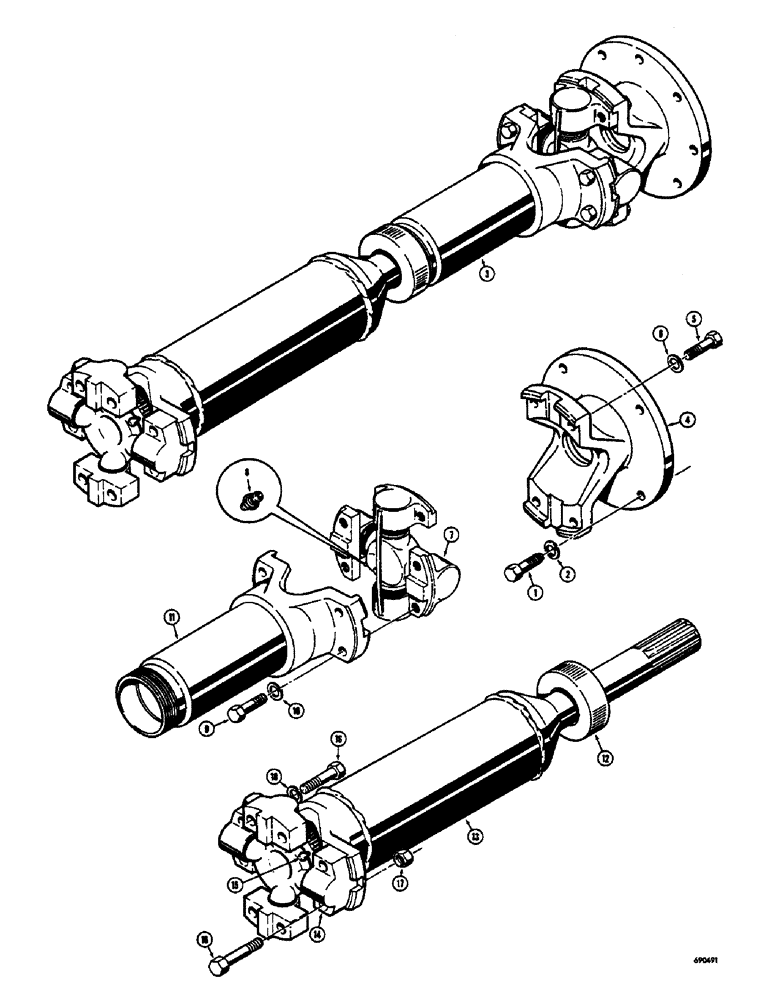

Запчасти Case 400 (042) - TRANSMISSION DRIVE SHAFT, TRACTOR SERIAL NUMBER 6579 AND AFTER (03) - TRANSMISSION

1

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

D48370

DRIVE SHAFT

ASSEMBLY - engine to transmission, used on tractor S/N 6579 and after, Includes: Ref. 4 - 18

1шт.

4

D48813

FLANGE

- drive shaft yoke, engine end

1шт.

5

114-212

X

HHCS - 3/8" - 24 NF x 1-1/2"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

D45163

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end) (When stock is exhausted L33945 kit will be supplied), Includes: Ref. 8

1шт.

7

L33945

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end), Includes: Ref. 8

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

9

114-234

X

HHCS - 3/8" - 24 NF x 1"

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

D48814

SLEEVE

YOKE AND SLEEVE ASSEMBLY - drive shaft

1шт.

12

L33425

CUP ASSY.

DUST CAP ASSEMBLY - drive shaft

1шт.

13

D48816

DRIVE SHAFT

-, Serial Range: engine-transmission

1шт.

14

D48817

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft (When stock is exhausted, order L36151 kit)

1шт.

14a

L36151

KIT

- spider and bearing repair (Not shown), Includes: Ref. 15

1шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

16

114-223

HHCS - 3/8" - 24 NF x 2"

8шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.
