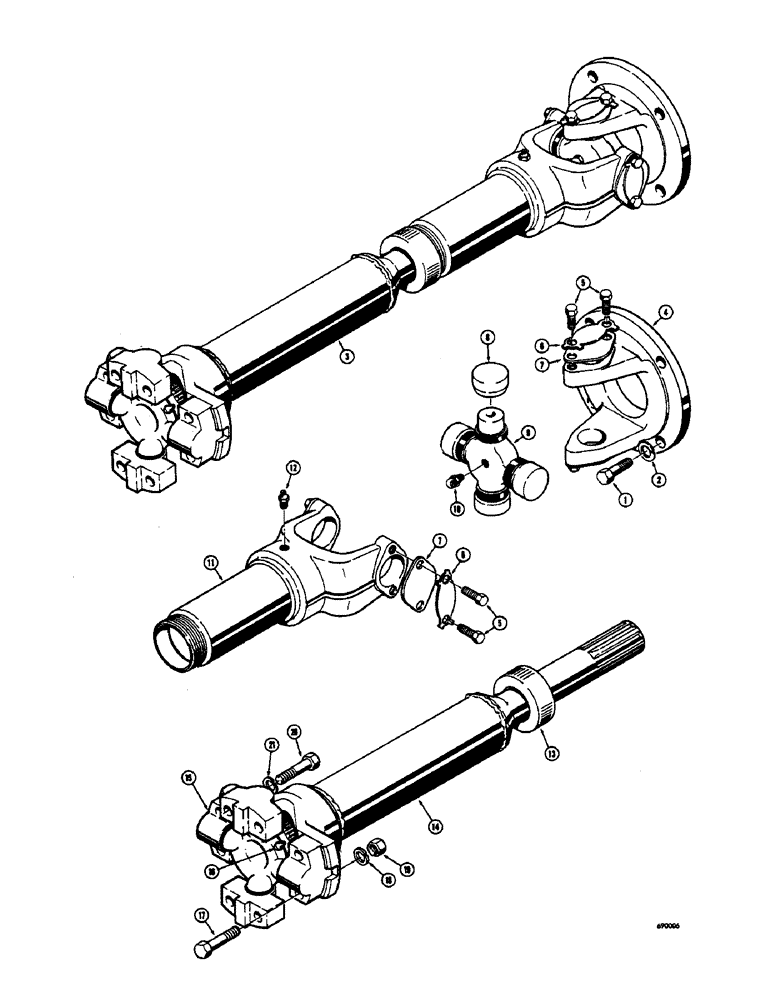

Запчасти Case 400 (040) - TRANSMISSION DRIVE SHAFT, BEFORE TRACTOR SERIAL NUMBER 6579 (03) - TRANSMISSION

1

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

D47276

DRIVE SHAFT ASSEMBLY - engine to transmission, used before tractor S/N 6579 (When stock is exhausted, use D48370), See Figure 42, Includes: Ref. 4 - 21

1шт.

4

D47631

FLANGE - drive shaft yoke, engine end

1шт.

L33742

KIT

SPIDER AND BEARING KIT - drive shaft, engine end, Includes: Ref. 5 - 10

1шт.

5

D47632

BOLT - special

8шт.

6

D47633

LOCK PLATE

4шт.

7

D47634

PLATE - spider and bearing cover

4шт.

8

D47635

CUP - bearing, needle type

4шт.

9

D47636

PIPE

SPIDER ASSEMBLY - center

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

11

D47637

YOKE AND SLEEVE ASSEMBLY - drive shaft

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

13

R14752

DUST CAP

CAP - drive shaft

1шт.

14

D47638

DRIVE SHAFT -, Serial Range: engine-transmission

1шт.

15

L31776

SPIDER

SPIDER AND BEARING ASSEMBLY - drive shaft, transmission end, Includes: Ref. 16

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

17

114-241

HHCS - 3/8" - 24 NF x 2-1/4"

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

20

114-242

HHCS - 3/8" - 24 NF

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.
