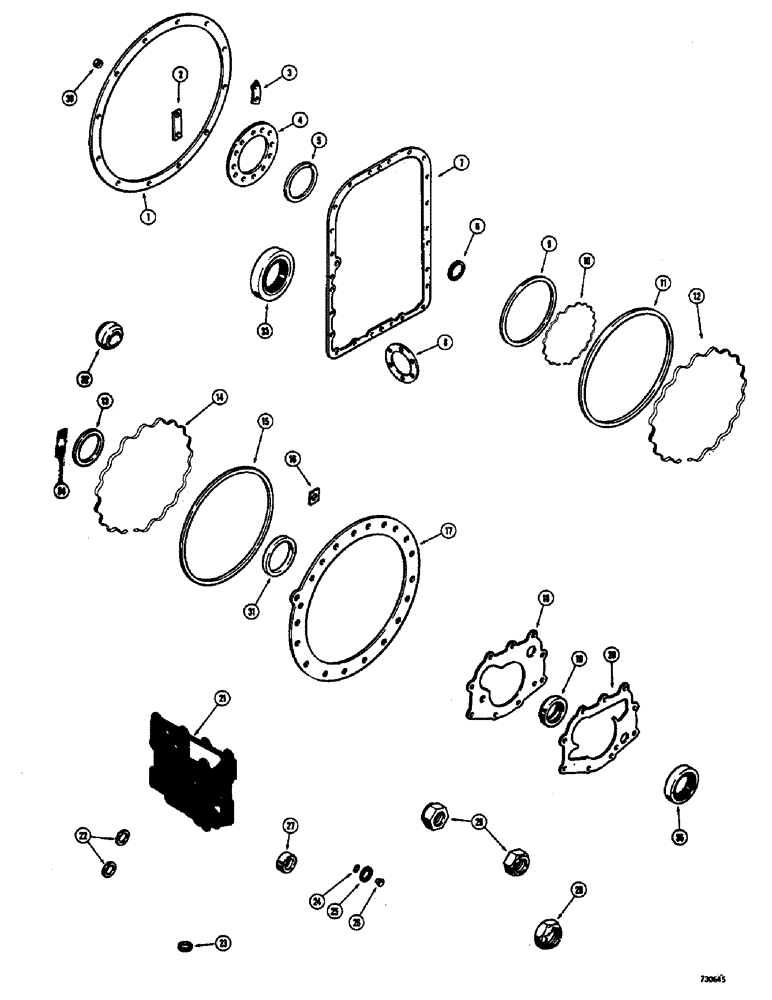

Запчасти Case 400 (034) - TRANSMISSION OVERHAUL KIT (03) - TRANSMISSION

L35268

KIT

- transmission overhaul, Includes: Ref. 1 - 35

1шт.

1

D47428

GASKET

- front cover

1шт.

2

A12731

LOCKING PLATE

PLATE - locking, torque converter input shaft

3шт.

3

D47436

PLATE, LOCKING

PLATE - locking, torque converter pump retaining ring

6шт.

4

D48208

GASKET

- torque converter pump

1шт.

5

D47441

SEAL

- ring type, torque converter housing sleeve

1шт.

6

D47445

SEAL

- ring type, second turbine

1шт.

7

D48358

GASKET

- torque converter to transmission housing

1шт.

8

A12664

GASKET

- strainer

1шт.

A40023

SEAL

AND EXPANDER KIT - clutch, small, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - ring type, small

1шт.

10

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal, small

1шт.

A40021

KIT

SEAL AND EXPANDER KIT - clutch, large, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - ring type, large

1шт.

12

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal, large

1шт.

13

L31017

RING

SEAL - ring type, high clutch piston

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

16

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

17

D47576

GASKET

- brake diaphragm

1шт.

18

L31081

GASKET

- oil charging pump to transmission housing

1шт.

19

A13262

SEAL

- oil, charging pump

1шт.

20

CASL31037

GASKET

- charging pump, Serial Range: housing-cover

1шт.

21

L31187

GASKET

- control valve body to transmission housing

1шт.

22

L31016

GASKET

- regulator valve and valve plug

2шт.

23

L31043

GASKET

- trimmer valve plug

1шт.

24

A12666

O-RING,0.359" ID x 0.73"

SEAL - ring type, clutch cut off valve

1шт.

25

L31034

WASHER

GASKET - transmission control valve lower plug

1шт.

26

A16568

CUP ASSY.

CUP - clutch cut off valve

1шт.

27

L31032

SEAL

- oil, transmission control valve spool

1шт.

28

L31165

NUT

- axle drive flanges

2шт.

29

131-465

LOCK NUT,7/8"-14, G8

NUT - winch drive flange

1шт.

30

131-308

LOCK

NUT - converter cover (5/16" - 24 NF)

24шт.

31

D47477

SEAL

- high range clutch

2шт.

32

L31084

SEAL

- ring type, suction tube

1шт.

33

D47485

SEAL

- oil, front output shaft

2шт.

34

L31128

PLATE

STRIP - lock

6шт.

35

D47578

COVER

SEAL - rear cover

1шт.
