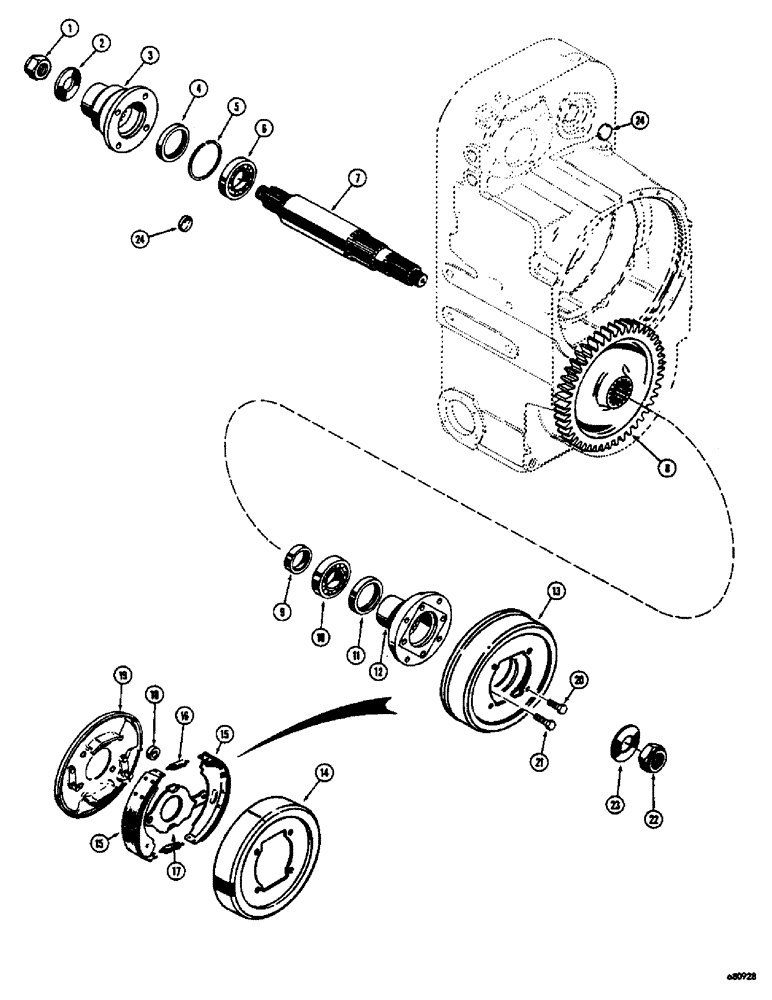

Запчасти Case 400 (030) - TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (03) - TRANSMISSION

D47273

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 24

1шт.

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- flange retaining

1шт.

3

D47425

FLANGE

- transmission to front axle drive shaft

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

D47491

SHAFT

- output, main (Axle drive)

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

D47426

FLANGE

- transmission to rear axle drive shaft

1шт.

13

D46610

BRAKE ASSEMBLY - parking, Includes: Ref. 14 - 19

1шт.

14

D47527

DRUM

- brake

1шт.

15

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

D47501 parking brake lining kit is available for service replacement. Kit includes (2) NSS linings and (24) L33939 rivets.

1шт.

16

F18272

SPRING

- brake shoe return

2шт.

17

D47526

LEVER

- brake shoe

1шт.

18

D47523

ROLLER

- brake

1шт.

19

D47522

PLATE - backing

1шт.

20

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

HHCS - 3/8" - 24 NF x 5/8"

4шт.

21

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

4шт.

22

L31165

NUT

- flange washer retaining

1шт.

23

D47424

WASHER

- flange retaining

1шт.

24

L31051

PLUG

- housing (Before transmission ser. no. 32262)

1шт.

24

L33620

PLUG

- housing (Transmission ser. no. 32262 and after)

1шт.
