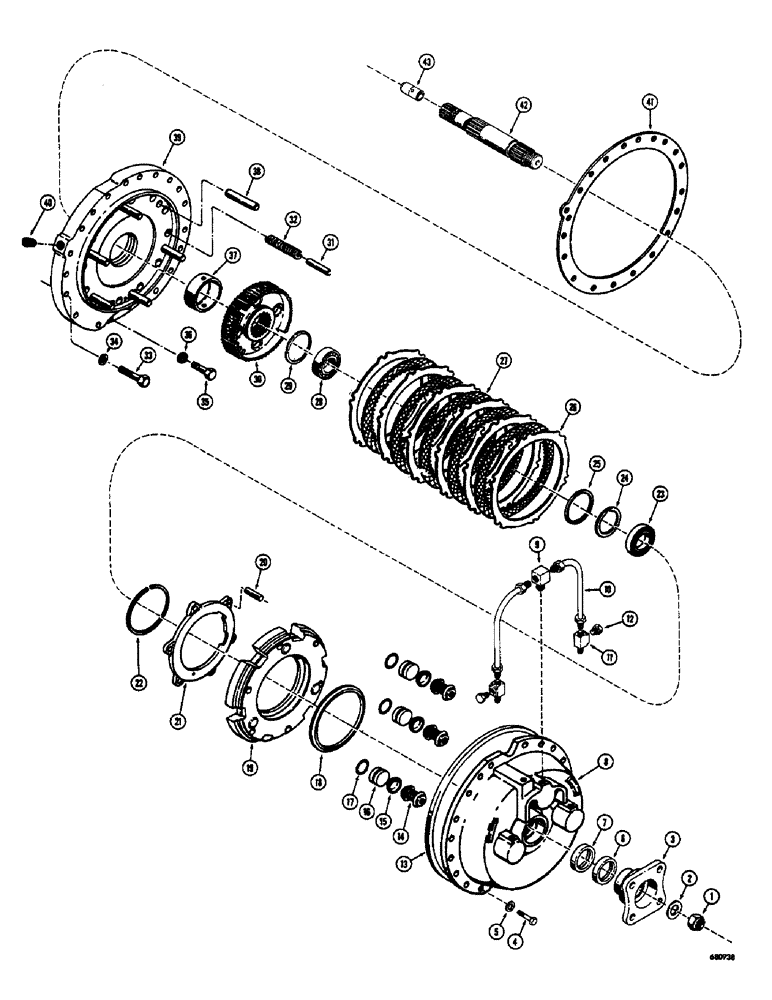

Запчасти Case 400 (020) - TRANSMISSION, REAR COVER AND BRAKE (03) - TRANSMISSION

D47273

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 43

1шт.

1

131-465

LOCK NUT,7/8"-14, G8

NUT - flange retaining

1шт.

2

D47422

WASHER - flange retaining

1шт.

3

D47421

FLANGE - transmission to winch drive shaft

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

18шт.

5

92-6

LOCK WASHER,3/8"

18шт.

D46607

COVER ASSEMBLY - transmissiom, rear, Includes: Ref. 6 - 8

1шт.

6

D47519

SHIELD - dust

1шт.

7

D47518

SEAL

- oil, output shaft

1шт.

Included in brake kit P/N D47502.

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - transmission, rear

1шт.

9

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- tube fitting, inverted flare

1шт.

10

D47482

TUBE

- brake system

2шт.

11

222-1076

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

FITTING - brake system, tube fitting, inverted flare

2шт.

12

D47484

PLUG

- special

2шт.

13

D47480

SEAL - ring type, rear cover

1шт.

Included in brake kit P/N D47502.

1шт.

14

D47508

SPRING

AND EXPANDER ASSEMBLY - brake

3шт.

15

D47507

CUP

- brake piston

3шт.

Included in brake kit P/N D47502.

1шт.

16

D47506

PISTON

- brake actuator

3шт.

17

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - ring type, piston

3шт.

Included in brake kit P/N D47502.

1шт.

18

D47504

SEAL

- ring type

1шт.

Included in brake kit P/N D47502.

1шт.

D46612

PLATE ASSEMBLY - pressure, brake, Includes: Ref. 19 - 21

1шт.

Included in brake kit P/N D47502.

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - pressure, brake

1шт.

20

D47530

PIN - spring

6шт.

21

NSS

NOT SOLD SEPARAT

RING - plate adjusting

1шт.

22

D47499

SNAP RING - external type

1шт.

23

L30286

BEARING

- ball type

1шт.

24

A12663

RING

SNAP RING - bearing retaining

1шт.

25

D47477

SEAL

RING - seal, step joint

1шт.

Included in brake kit P/N D47502.

1шт.

26

L34015

PLATE

- clutch, external spline (When stock is exhausted, order L33958 plate for service)

6шт.

26

L33958

PLATE

- clutch, external spline

6шт.

27

D47497

COVER PLATE

PLATE - clutch, internal spline

5шт.

28

D47572

BEARING

- ball type

1шт.

29

D47479

RING, SNAP

SNAP RING - hub

1шт.

30

D47495

HUB

- brake, internal

1шт.

31

D47494

PIN - return spring

12шт.

32

D47493

SPRING - brake return

12шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

D46611

DIAPHRAGM

ASSEMBLY - brake, Includes: Ref. 37 - 40

1шт.

37

D47528

SLEEVE

- diaphragm

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - diaphragm

6шт.

39

NSS

NOT SOLD SEPARAT

DIAPHRAGM - brake

1шт.

40

NSS

NOT SOLD SEPARAT

PLUG - diaphragm

1шт.

41

D47576

GASKET

- brake diaphragm

1шт.

D46606

SHAFT ASSEMBLY - transmission (Winch drive), Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

SHAFT - transmission, output (Winch drive)

1шт.

43

D47515

PIN - shaft

1шт.

D47502

available for service replacement, Includes: Ref. 7, 13, 15, 17, 18, P/N D46612, and Ref. 25

1шт.
